Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74477728FIXED IND 820UH 210MA 5.2OHM SMD |
4,871 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 210 mA | 260mA | Shielded | 5.2Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744304010FIXED IND 100NH 24A 0.00017OHM |
4,365 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±20% | 24 A | 52A | Shielded | 0.17mOhm | - | 105MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1240 | 0.453" L x 0.465" W (11.50mm x 11.80mm) | 0.161" (4.10mm) |
|
7449150079FIXED IND 79NH 23A 2.11 MOHM SMD |
4,646 | - |
|
Datasheet | WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 79 nH | ±20% | 23 A | - | Unshielded | 2.11mOhm Max | 184 @ 100MHz | 422MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.228" (5.80mm) |
|
7447773470FIXED IND 47UH 1.3A 182 MOHM SMD |
1,609 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.7A | Shielded | 182mOhm Max | - | 10.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
7447211221FIXED IND 220UH 1.47A 250MOHM TH |
3,536 | - |
|
Datasheet | WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 220 µH | ±10% | 1.47 A | 1.9A | Unshielded | 250mOhm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
|
7447211682FIXED IND 6.8MH 260MA 7.4 OHM TH |
2,559 | - |
|
Datasheet | WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 6.8 mH | ±5% | 260 mA | 360mA | Unshielded | 7.4Ohm Max | - | 330kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|

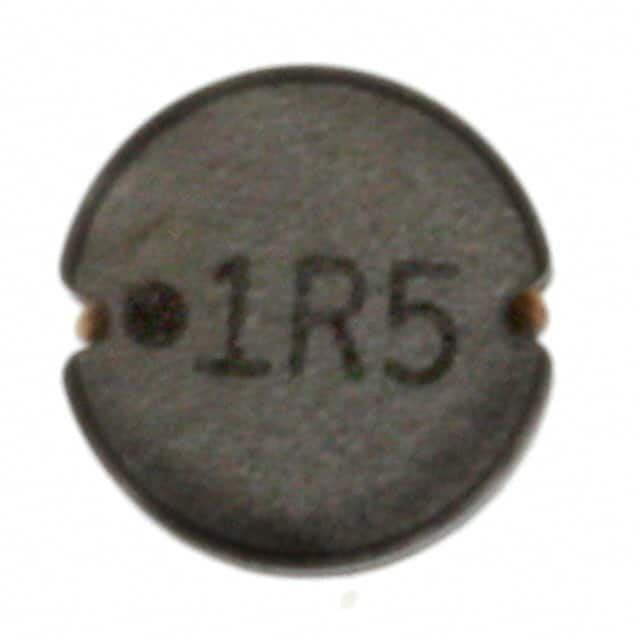

744775015AFIXED IND 1.5UH 6A 20 MOHM SMD |
3,195 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

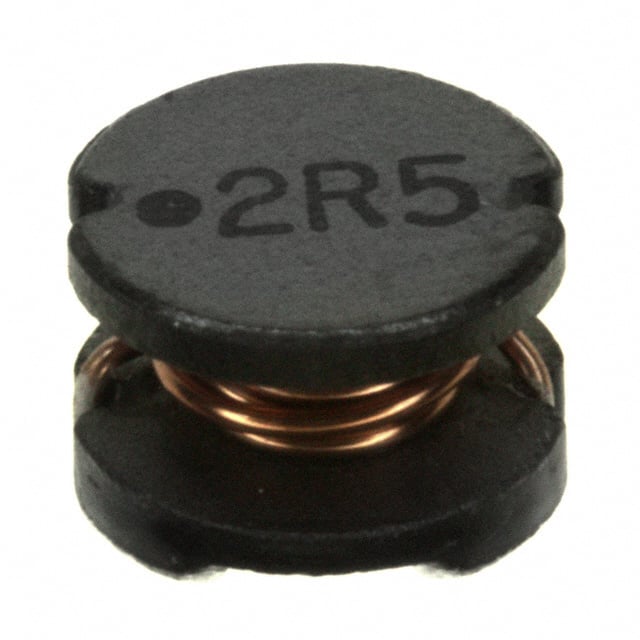

744775025AFIXED IND 2.5UH 5A 20 MOHM SMD |
1,153 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
|

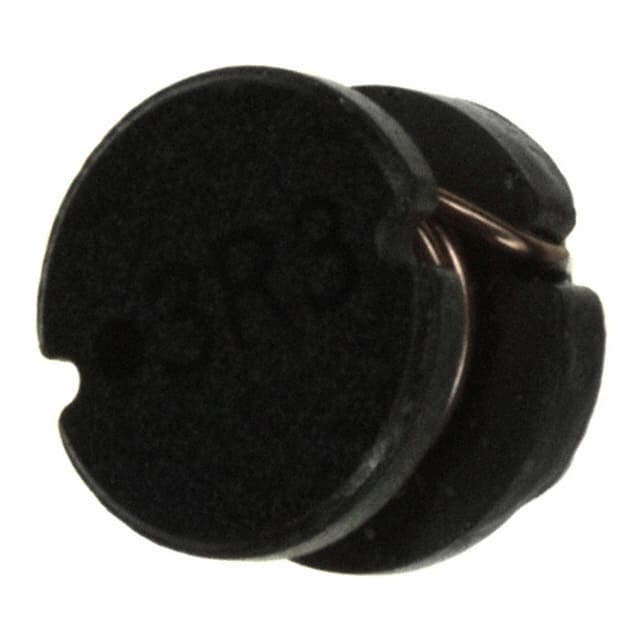

744775033AFIXED IND 3.3UH 4.6A 20 MOHM SMD |
3,183 | - |
|
Datasheet | WE-PD2 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.6 A | - | Unshielded | 20mOhm Max | 32 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" Dia (7.50mm) | 0.209" (5.30mm) |
|

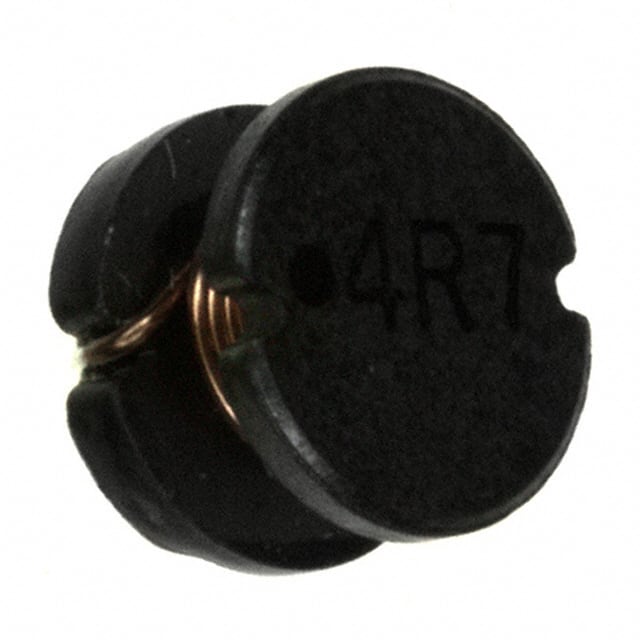

744775047AFIXED IND 4.7UH 3.7A 30 MOHM SMD |
3,455 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.7 A | - | Unshielded | 30mOhm Max | 31 @ 7.96MHz | 38MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
