Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

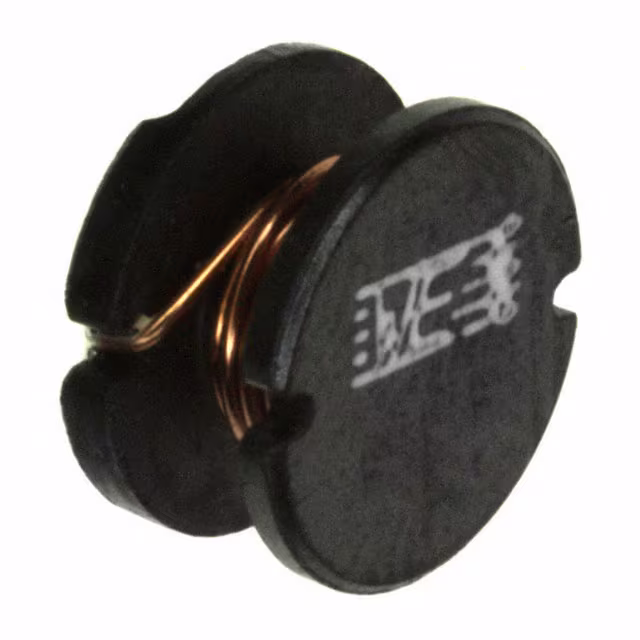

744776068AFIXED IND 6.8UH 3.4A 40 MOHM SMD |
1,686 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | - | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|
110001200FIXED IND 1.96UH 15A 2.4 MOHM |
3,714 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.366" Dia x 0.709" L (9.30mm x 18.00mm) | - |
|
110001101FIXED IND 10.4UH 2.5A 33MOHM SMD |
3,630 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10.4 µH | ±20% | 2.5 A | 7.5A | Unshielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.213" Dia x 0.709" L (5.40mm x 18.00mm) | - |
|
110001100FIXED IND 1UH 22A 2 MOHM SMD |
2,006 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 22 A | 29A | Unshielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.280" Dia x 0.591" L (7.10mm x 15.00mm) | - |
|
784383560033FIXED IND 330NH 9.6A 7.2MOHM SMD |
2,084 | - |
|
Datasheet | WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 9.6 A | 12.4A | Shielded | 7.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
110001270FIXED IND 2.72UH 10A 6.4MOHM SMD |
1,941 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.72 µH | ±20% | 10 A | 18A | Unshielded | 6.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" Dia x 0.591" L (6.50mm x 15.00mm) | - |
|
|
110001450FIXED IND 4.45UH 12A 3.8 MOHM |
1,543 | - |
|
Datasheet | WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.45 µH | ±10% | 12 A | 45A | Unshielded | 3.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.453" Dia x 0.984" L (11.50mm x 25.00mm) | - |
|
750341422FIXED IND 2.2MH 531 MOHM TH |
1,406 | - |
|
Datasheet | MID-DC16US | 8-DIP Module | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 531mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.453" L x 0.425" W (11.50mm x 10.80mm) | 0.472" (12.00mm) |
|

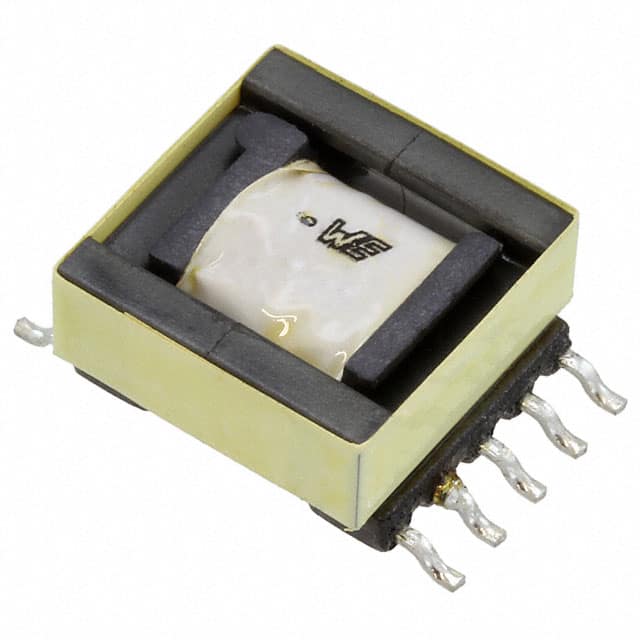

750341456FIXED IND 300UH 596 MOHM SMD |
4,790 | - |
|
Datasheet | MID-DC16US | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 300 µH | ±10% | - | - | Unshielded | 596mOhm | - | - | - | - | 10 kHz | - | Surface Mount | - | 0.824" L x 0.575" W (20.92mm x 14.60mm) | 0.325" (8.25mm) |
|
744305040FIXED IND 400NH 26A 0.000155OHM |
1,307 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 400 nH | ±20% | 26 A | 21.7A | Shielded | 0.155mOhm | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1350 | 0.531" L x 0.524" W (13.50mm x 13.30mm) | 0.205" (5.20mm) |
