Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038A-4R7MFIXED IND 4.7UH 10A 15.5MOHM SMD |
6,738 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | 20 @ 100kHz | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-330MFIXED IND 33UH 3.5A 112 MOHM SMD |
1,565 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-150MFIXED IND 15UH 6.25A 45 MOHM SMD |
372 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

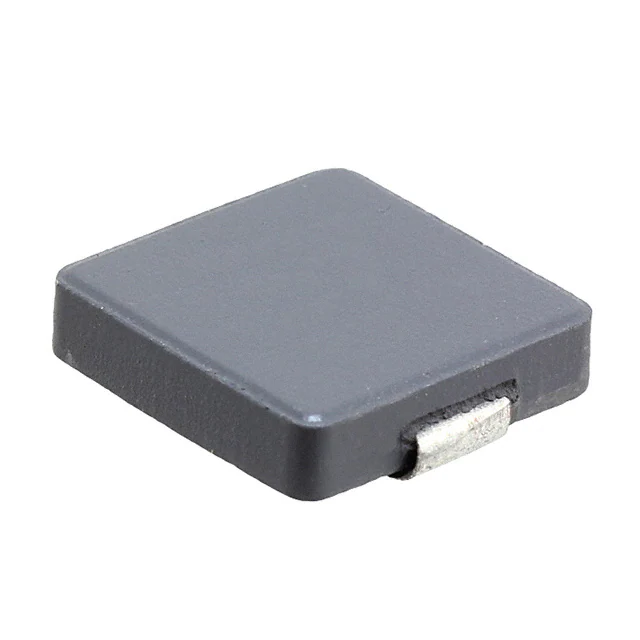

SRP1238A-2R2MFIXED IND 2.2UH 16A 8 MOHM SMD |
4,439 | - |
|
Datasheet | SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
SRP4030FA-3R3MFIXED IND 3.3UH 6.6A 28.6MOHM SM |
2,673 | - |
|
Datasheet | SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6.6 A | 4.8A | Shielded | 28.6mOhm Max | 10 @ 100kHz | 28MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|
|
SRP4030FA-4R7MFIXED IND 4.7UH 5.1A 44.1MOHM SM |
4,157 | - |
|
Datasheet | SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.1 A | 4.2A | Shielded | 44.1mOhm Max | 10 @ 100kHz | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|
SRP5030CA-3R3MFIXED IND 3.3UH 8.1A 23.1MOHM SM |
2,158 | - |
|
Datasheet | SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 8.1 A | 9.5A | Shielded | 23.1mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
SRP1270-4R7MFIXED IND 4.7UH 15A 11.2MOHM SMD |
11,818 | - |
|
Datasheet | SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 15 A | 30A | Shielded | 11.2mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
SRP1265A-100MFIXED IND 10UH 10A 16.5 MOHM SMD |
20,107 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-4R7MFIXED IND 4.7UH 13.5A 8.4MOHM SM |
3,376 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 13.5 A | 28A | Shielded | 8.4mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
