Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265A-330MFIXED IND 33UH 8A 58 MOHM SMD |
2,451 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 8 A | 11A | Shielded | 58mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-470MFIXED IND 47UH 6.5A 90 MOHM SMD |
720 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 6.5 A | 9.5A | Shielded | 90mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
5250-RCFIXED IND 100UH 2A 216 MOHM TH |
3,523 | - |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | - |
|

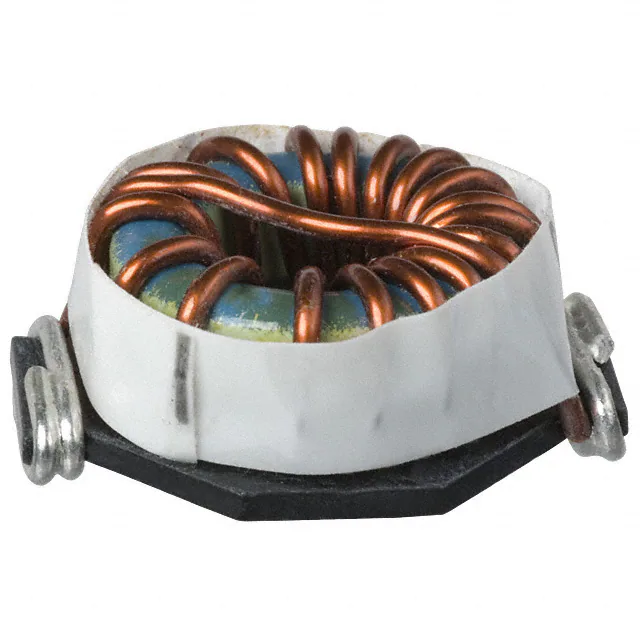

PM2110-221K-RCFIXED IND 220UH 3.5A 74 MOHM SMD |
4,518 | - |
|
Datasheet | PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 3.5 A | - | Unshielded | 74mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|

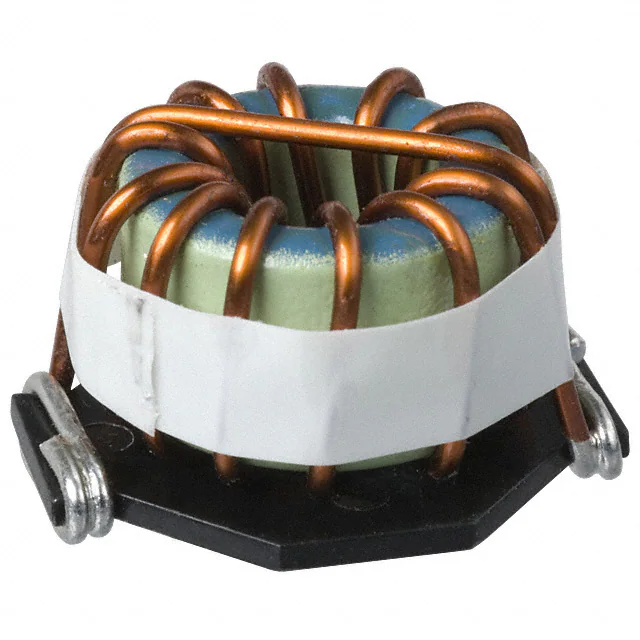

PM2120-221K-RCFIXED IND 220UH 5A 52 MOHM SMD |
2,655 | - |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 5 A | - | Unshielded | 52mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.830" (21.08mm) |
|
|
PM2120-471K-RCFIXED IND 470UH 3.3A 119MOHM SMD |
1,877 | - |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 470 µH | ±10% | 3.3 A | - | Unshielded | 119mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.850" (21.59mm) |
|
|
PM2120-330K-RCFIXED IND 33UH 10.1A 13 MOHM SMD |
715 | - |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 33 µH | ±10% | 10.1 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|

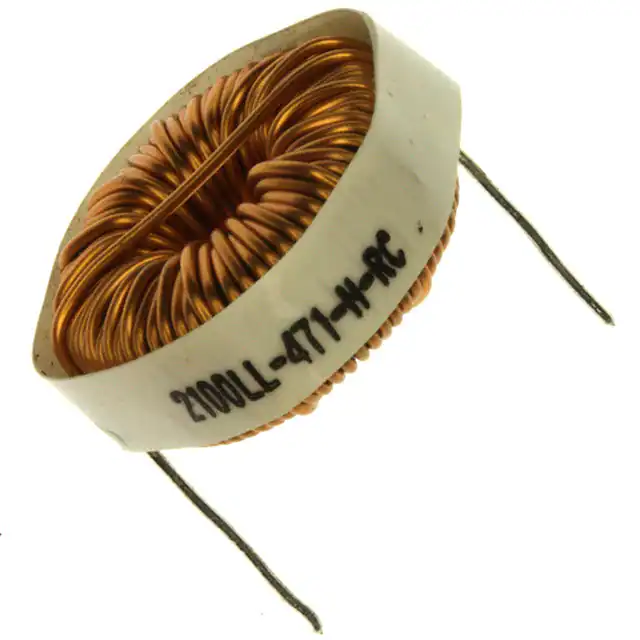

2100LL-471-H-RCFIXED IND 470UH 2.3A 124 MOHM TH |
213 | - |
|
Datasheet | 2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 2.3 A | - | Shielded | 124mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
PQ2614BHA-100KFIXED IND 10UH 30A 1.9 MOHM SMD |
5,646 | - |
|
Datasheet | PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 30 A | 21.5A | Shielded | 1.9mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|

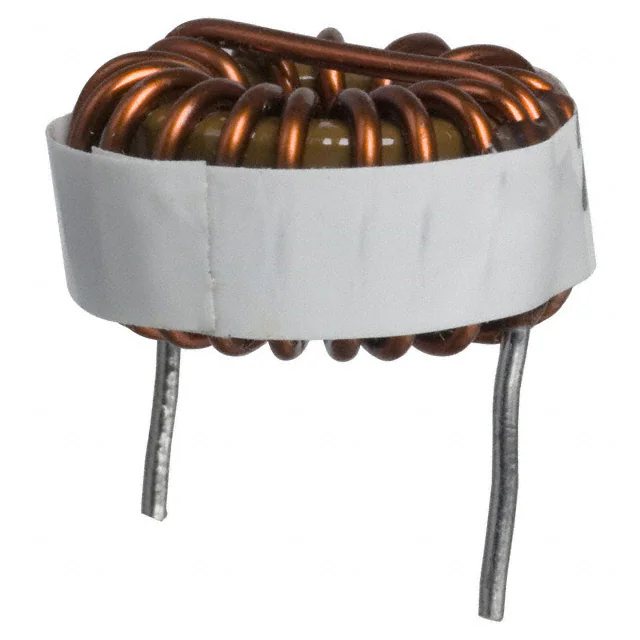

2218-H-RCFIXED IND 330UH 3.3A 100 MOHM TH |
255 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.3 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
