Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

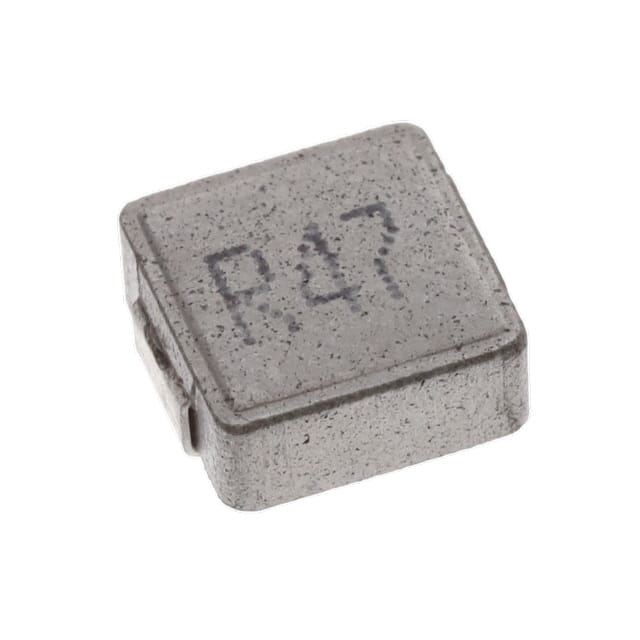

SRP6530A-R47MIND,7.1X6.6X3MM,0.47UH20%,21A,SH |
2,327 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 21 A | 30A | Shielded | 4.2mOhm Max | 10 @ 25.2MHz | 80MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP5020CC-8R2MIND SMD 8.2UH 2.6A |
1,824 | - |
|
Datasheet | SRP5020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 2.6 A | 4A | Shielded | 171mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
SRP6530A-R22MIND,7.1X6.6X3MM,0.22UH20%,25.5A, |
1,414 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 25.5 A | 50A | Shielded | 2.8mOhm Max | 12 @ 25.2MHz | 145MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-1R0MIND,7.1X6.6X3MM,1UH20%,12A,SHD |
1,066 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 12 A | 25A | Shielded | 10mOhm Max | 30 @ 7.96MHz | 58MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6530A-R10MIND,7.1X6.6X3MM,0.1UH20%,34A,SHD |
919 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 34 A | 70A | Shielded | 1.7mOhm Max | 14 @ 25.2MHz | 200MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

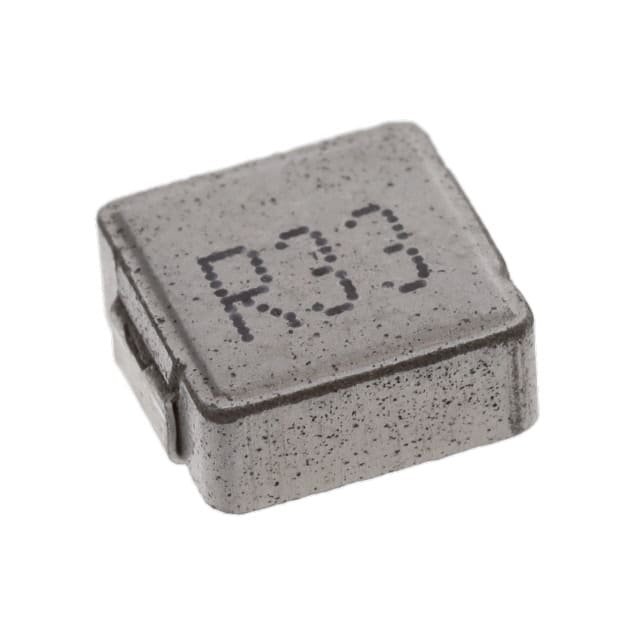

SRP6530A-R33MIND,7.1X6.6X3MM,0.33UH20%,21.5A, |
891 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 21.5 A | 35A | Shielded | 3.9mOhm Max | 12 @ 25.2MHz | 140MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP6530A-R56MIND,7.1X6.6X3MM,0.56UH20%,18A,SH |
880 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 560 nH | ±20% | 18 A | 28A | Shielded | 5.5mOhm Max | 12 @ 25.2MHz | 78MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

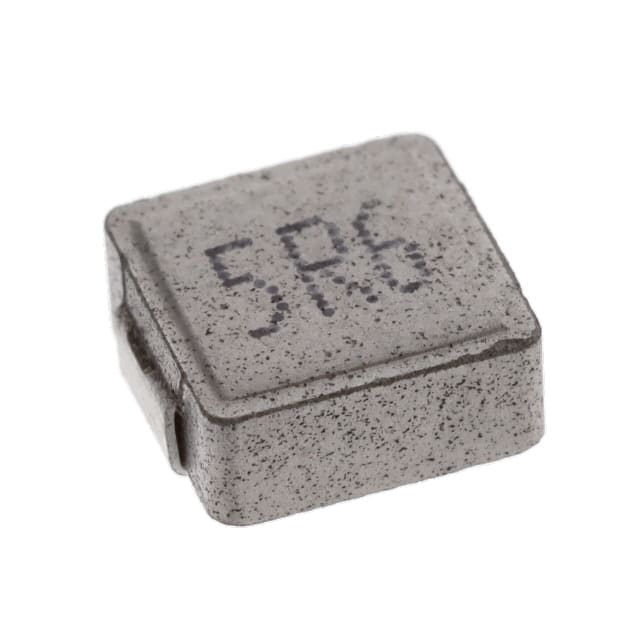

SRP6530A-5R6MIND,7.1X6.6X3MM,5.6UH20%,5.8A,SH |
653 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 5.6 µH | ±20% | 5.8 A | 10.5A | Shielded | 60mOhm Max | 21 @ 7.96MHz | 20MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

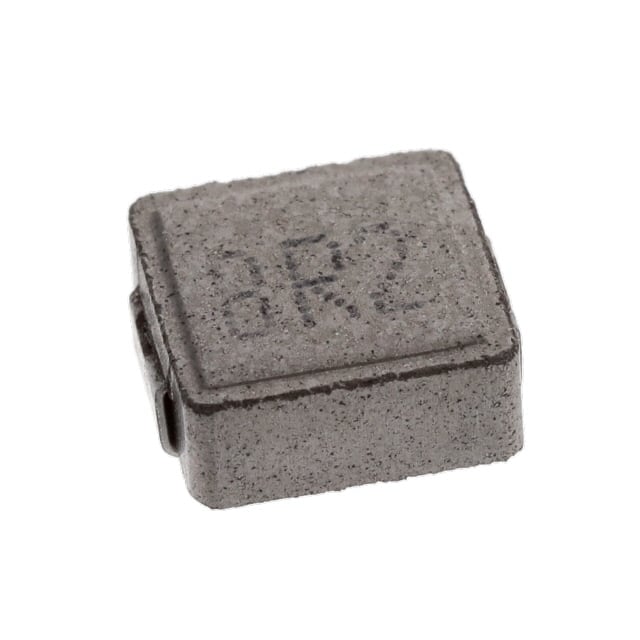

SRP6530A-8R2MIND,7.1X6.6X3MM,8.2UH20%,5A,SHD |
591 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 8.2 µH | ±20% | 5 A | 7.5A | Shielded | 68mOhm Max | 26 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP6530A-1R5MIND,7.1X6.6X3MM,1.5UH20%,10A,SHD |
421 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10 A | 18A | Shielded | 15mOhm Max | 30 @ 7.96MHz | 45MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
