Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

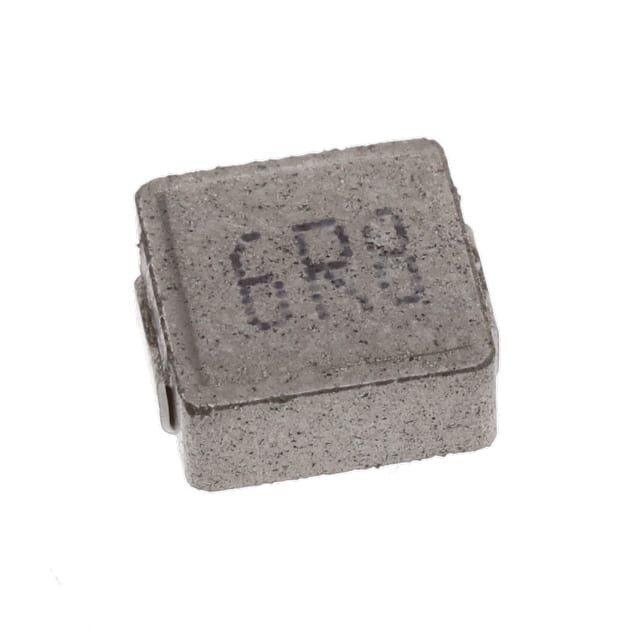

SRP6530A-6R8MIND,7.1X6.6X3MM,6.8UH20%,5.5A,SH |
186 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.5 A | 9A | Shielded | 60mOhm Max | 26 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
PM125SH-330M-RCFIXED IND 33UH 3A 60 MOHM SMD |
997 | - |
|
Datasheet | PM125SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 2.8A | Shielded | 60mOhm Max | 27 @ 2.52MHz | 9.97MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRU1048A-820YFIXED IND 82UH 1.3A 200 MOHM SMD |
2,308 | - |
|
Datasheet | SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.3 A | 1.1A | Shielded | 200mOhm Max | 24 @ 2.52MHz | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SDR1806-8R2MLFIXED IND 8.2UH 7A 20 MOHM SMD |
668 | - |
|
Datasheet | SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7 A | 9.4A | Unshielded | 20mOhm Max | 22 @ 7.96MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SRP1038CC-150MIND SMD 15UH 6.3A |
430 | - |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.3 A | 10A | Shielded | 45mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038CC-470MIND SMD 47UH 3.2A |
144 | - |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 47 µH | ±20% | 3.2 A | 5A | Shielded | 167mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SDR1307A-220MFIXED IND 22UH 3.6A 47 MOHM SMD |
1,598 | - |
|
Datasheet | SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 6.5A | Unshielded | 47mOhm Max | 40 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SPB0705-R10MIND POWER BEAD 105NH 43A SHLD |
937 | - |
|
Datasheet | SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | ±20% | 43 A | 44A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SPB0705-72NMIND POWER BEAD 72NH 43A SHLD |
885 | - |
|
Datasheet | SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 72 nH | ±20% | 43 A | 65A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
SRR1240-820MFIXED IND 82UH 1.35A 250MOHM SMD |
789 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.35 A | 1.35A | Shielded | 250mOhm Max | 16 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
