Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1307-270MLFIXED IND 27UH 3.3A 60 MOHM SMD |
4,213 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.3 A | 5.5A | Unshielded | 60mOhm Max | 35 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
PM54-221K-RCFIXED IND 220UH 350MA 1.57OHM SM |
2,734 | - |
|
Datasheet | PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 350 mA | 440mA | Unshielded | 1.57Ohm | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR1307-101KLFIXED IND 100UH 1.9A 180MOHM SMD |
2,106 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3A | Unshielded | 180mOhm Max | 25 @ 796kHz | 5.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-560KLFIXED IND 56UH 2.5A 95 MOHM SMD |
1,529 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2.5 A | 3.8A | Unshielded | 95mOhm Max | 22 @ 2.52MHz | 7.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-470KLFIXED IND 47UH 2.7A 82 MOHM SMD |
1,440 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.7 A | 4.2A | Unshielded | 82mOhm Max | 24 @ 2.52MHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-150MLFIXED IND 15UH 4.5A 34 MOHM SMD |
4,407 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.5 A | 7.5A | Unshielded | 34mOhm Max | 28 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-120MLFIXED IND 12UH 4.8A 30 MOHM SMD |
3,331 | - |
|
Datasheet | SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 8A | Unshielded | 30mOhm Max | 25 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|

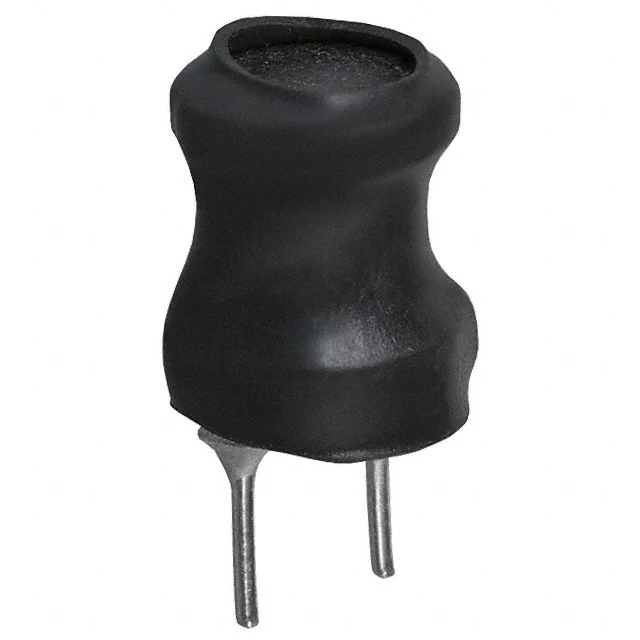

RL822-3R3K-RCFIXED IND 3.3UH 2.66A 25 MOHM TH |
12,476 | - |
|
Datasheet | RL822 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 2.66 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

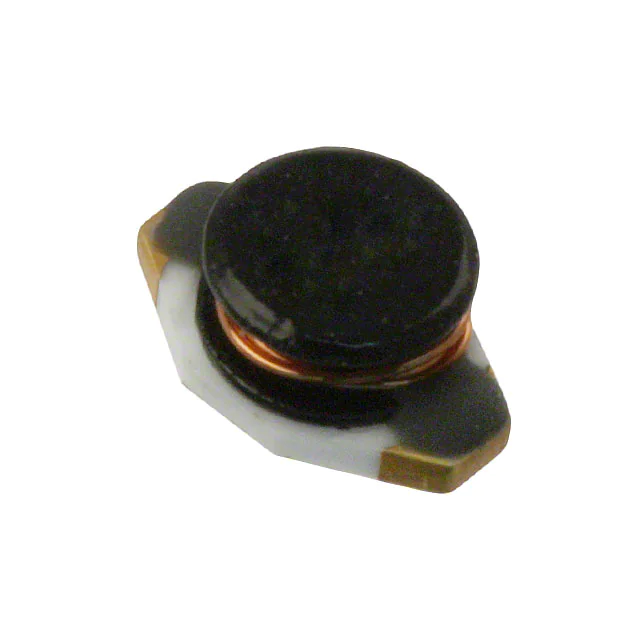

SDR6603-100MFIXED IND 10UH 1.1A 160 MOHM SMD |
2,664 | - |
|
Datasheet | SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | 17 @ 2.52MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
9230-44-RCFIXED IND 10UH 180MA 3.7 OHM TH |
11,204 | - |
|
Datasheet | 9230 | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
