Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

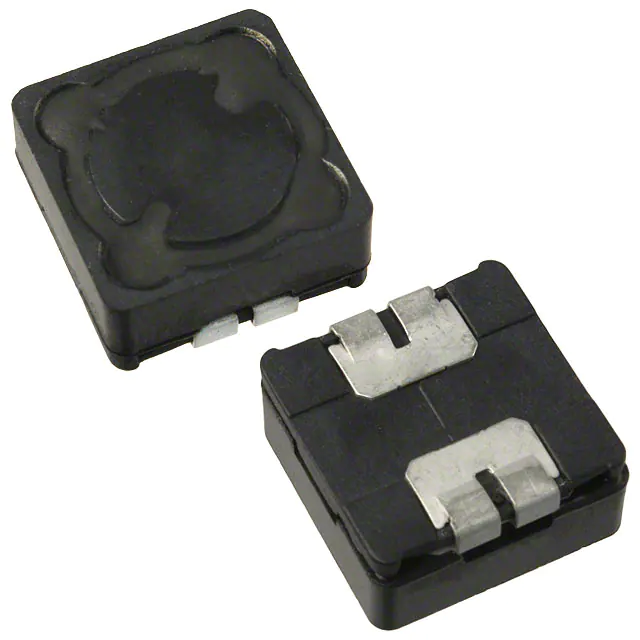

SRR1206-120MLFIXED IND 12UH 3A 38 MOHM SMD |
7,788 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3 A | 5.5A | Shielded | 38mOhm Max | 18 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
RL622-104K-RCFIXED IND 100MH 20MA 235 OHM TH |
3,080 | - |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 20 mA | - | Unshielded | 235Ohm Max | 20 @ 25.2kHz | 100kHz | - | -55°C ~ 105°C | 25.2 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
SRR1206-100MLFIXED IND 10UH 3.3A 35 MOHM SMD |
2,027 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 5.7A | Shielded | 35mOhm Max | 18 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-500YLFIXED IND 50UH 1.5A 200 MOHM SMD |
773 | - |
|
Datasheet | SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±15% | 1.5 A | 2.8A | Shielded | 200mOhm Max | 18 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
SRR1208-150MLFIXED IND 15UH 4A 36 MOHM SMD |
26,983 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4 A | 5.6A | Shielded | 36mOhm Max | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-120MLFIXED IND 12UH 4.8A 25 MOHM SMD |
25,250 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 6.5A | Shielded | 25mOhm Max | 19 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-330YLFIXED IND 33UH 2.8A 62 MOHM SMD |
19,679 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 2.8 A | 3.8A | Shielded | 62mOhm Max | 23 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-100MLFIXED IND 10UH 5A 21 MOHM SMD |
16,314 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5 A | 6.7A | Shielded | 21mOhm Max | 20 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
SRP3020TA-2R2MFIXED IND 2.2UH 3.5A 75 MOHM SMD |
14,242 | - |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 3.5 A | 3.7A | Shielded | 75mOhm Max | 10 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRR1208-4R5MLFIXED IND 4.5UH 6.5A 14 MOHM SMD |
12,542 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.5 µH | ±20% | 6.5 A | 10A | Shielded | 14mOhm Max | 24 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
