Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6530A-2R2MIND,7.1X6.6X3MM,2.2UH20%,10A,SHD |
987 | - |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 10 A | 14A | Shielded | 20mOhm Max | 30 @ 7.96MHz | 30MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

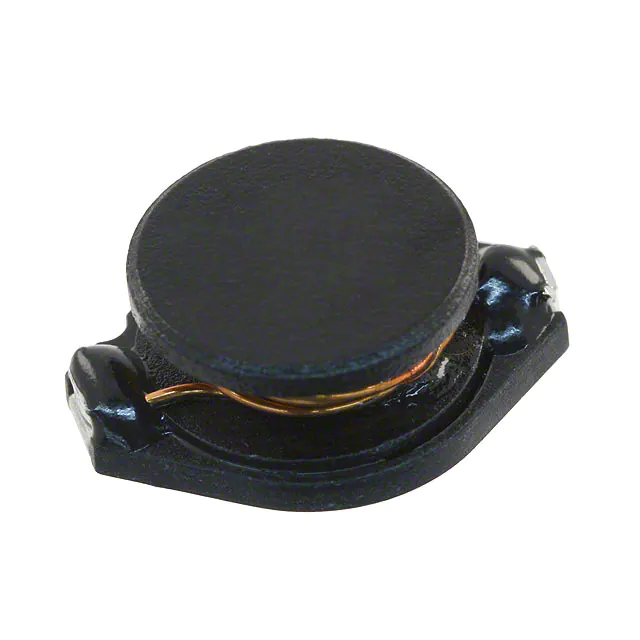

SDR1806-680MLFIXED IND 68UH 2.1A 130 MOHM SMD |
2,586 | - |
|
Datasheet | SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | 3.8A | Unshielded | 130mOhm Max | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SDR1806-221KLFIXED IND 220UH 1.1A 420MOHM SMD |
1,671 | - |
|
Datasheet | SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.1 A | 2.2A | Unshielded | 420mOhm Max | 20 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU1048A-6R8YFIXED IND 6.8UH 4.8A 18 MOHM SMD |
1,175 | - |
|
Datasheet | SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | 4.1A | Shielded | 18mOhm Max | 10 @ 7.96MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
SRP1038CC-330MIND SMD 33UH 4A |
426 | - |
|
Datasheet | SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 33 µH | ±20% | 4 A | 6A | Shielded | 112mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SDR1307A-101KFIXED IND 100UH 1.9A 180MOHM SMD |
431 | - |
|
Datasheet | SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3A | Unshielded | 180mOhm Max | 25 @ 796kHz | 5.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
SRR1280-220MFIXED IND 22UH 4.3A 38.6MOHM SMD |
66,941 | - |
|
Datasheet | SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRR1240-100MFIXED IND 10UH 4A 32 MOHM SMD |
59,354 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 32mOhm Max | 17 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SRR1260-221KFIXED IND 220UH 1.38A 380MOHM SM |
47,902 | - |
|
Datasheet | SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.38 A | 1.3A | Shielded | 380mOhm Max | 22 @ 796kHz | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1240-150MFIXED IND 15UH 3.5A 47 MOHM SMD |
30,666 | - |
|
Datasheet | SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.2A | Shielded | 47mOhm Max | 16 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
