Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

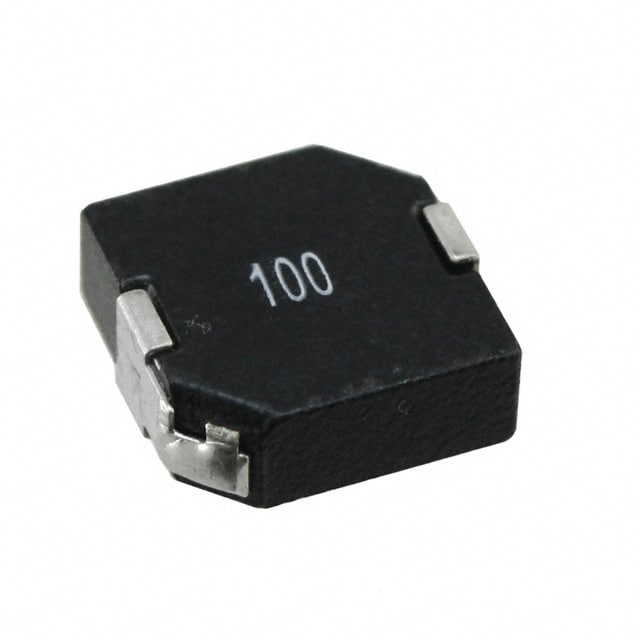

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD |
2,465 | - |
|
Datasheet | PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 7.5 A | - | Shielded | 14.9mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
2200HT-150-V-RCFIXED IND 15UH 10.3A 17 MOHM TH |
1,715 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 10.3 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-180-V-RCFIXED IND 18UH 9.7A 18 MOHM TH |
4,414 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 9.7 A | - | Shielded | 18mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-1R2-V-RCFIXED IND 1.2UH 23.8A 3 MOHM TH |
3,925 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 23.8 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-270-V-RCFIXED IND 27UH 8.9A 22 MOHM TH |
1,384 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 27 µH | ±15% | 8.9 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-2R2-V-RCFIXED IND 2.2UH 20.1A 5 MOHM TH |
2,146 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 µH | ±15% | 20.1 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-391-V-RCFIXED IND 390UH 3A 190 MOHM TH |
1,579 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-3R3-V-RCFIXED IND 3.3UH 18.8A 5 MOHM TH |
4,458 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 3.3 µH | ±15% | 18.8 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-470-V-RCFIXED IND 47UH 6.4A 42 MOHM TH |
4,552 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.4 A | - | Shielded | 42mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-5R6-V-RCFIXED IND 5.6UH 16.1A 7 MOHM TH |
4,389 | - |
|
Datasheet | 2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 5.6 µH | ±15% | 16.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
