Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2202-H-RCFIXED IND 12UH 12A 8 MOHM TH |
1,546 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±15% | 12 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2203-H-RCFIXED IND 15UH 11.3A 8 MOHM TH |
3,966 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 15 µH | ±15% | 11.3 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2204-H-RCFIXED IND 18UH 10.8A 9 MOHM TH |
2,191 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 18 µH | ±15% | 10.8 A | - | Shielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2213-H-RCFIXED IND 120UH 3.3A 98 MOHM TH |
2,060 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 3.3 A | - | Shielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2215-H-RCFIXED IND 180UH 3.8A 75 MOHM TH |
2,727 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 3.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
PM12645S-1R2MFIXED IND 1.2UH 20A 2 MOHM SMD |
1,106 | - |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±20% | 20 A | - | Shielded | 2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
PM12645S-1R8MFIXED IND 1.8UH 13A 3.5 MOHM SMD |
3,328 | - |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | 13 A | - | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

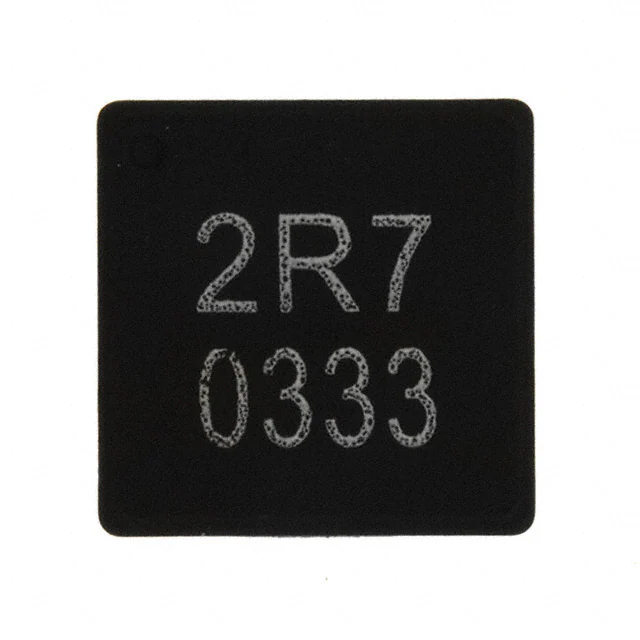

PM12645S-2R7MFIXED IND 2.7UH 12A 4.3 MOHM SMD |
4,322 | - |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±20% | 12 A | - | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
PM12651S-4R7MFIXED IND 4.7UH 12A 7.2 MOHM SMD |
2,625 | - |
|
Datasheet | PM12651S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 12 A | - | Shielded | 7.2mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
PM13560S-6R0MFIXED IND 6UH 9.5A 10.7 MOHM SMD |
1,515 | - |
|
Datasheet | PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 6 µH | ±20% | 9.5 A | - | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
