Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

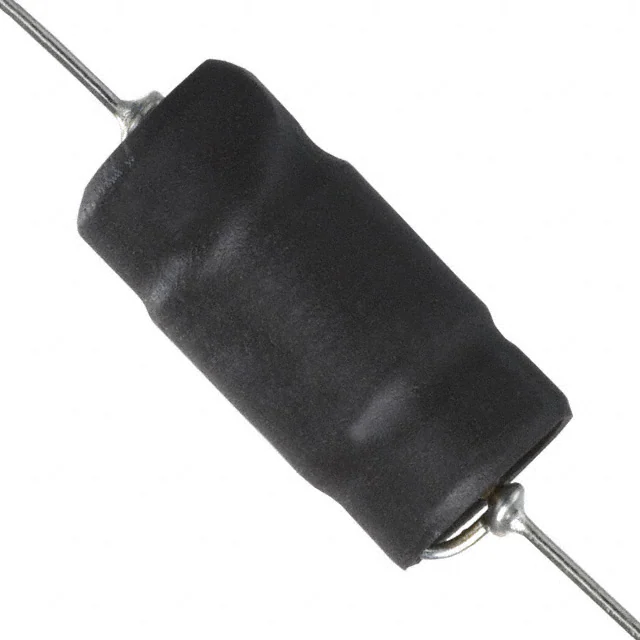

5900-153FIXED IND 15MH 190MA 11.5 OHM TH |
2,004 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 190 mA | 210mA | Unshielded | 11.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-183FIXED IND 18MH 170MA 14 OHM TH |
3,381 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 170 mA | 200mA | Unshielded | 14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-223FIXED IND 22MH 150MA 180 OHM TH |
1,894 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 150 mA | 180mA | Unshielded | 21.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-333FIXED IND 33MH 130MA 25 OHM TH |
2,325 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 130 mA | 140mA | Unshielded | 25Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-393FIXED IND 39MH 120MA 31 OHM TH |
4,946 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 120 mA | 130mA | Unshielded | 31Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-473FIXED IND 47MH 100MA 40 OHM TH |
4,754 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 100 mA | 120mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-563FIXED IND 56MH 100MA 45 OHM TH |
3,935 | - |
|
Datasheet | 5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 100 mA | 110mA | Unshielded | 45Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
6701FIXED IND 10UH 11A 8 MOHM TH |
2,119 | - |
|
Datasheet | 6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10 µH | ±15% | 11 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6702FIXED IND 25UH 5.5A 14 MOHM TH |
3,322 | - |
|
Datasheet | 6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±15% | 5.5 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6706FIXED IND 25UH 9A 12 MOHM TH |
1,251 | - |
|
Datasheet | 6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±15% | 9 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" (31.75mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
