Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

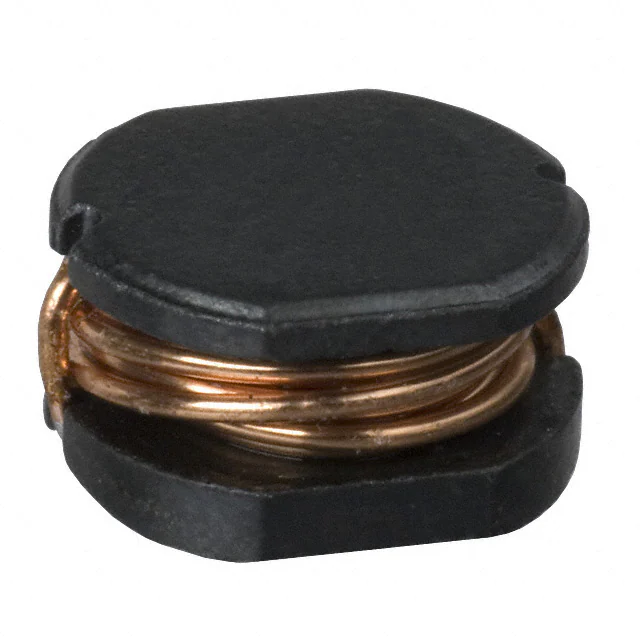

PM105-120MFIXED IND 12UH 2.45A 70 MOHM SMD |
1,702 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.45 A | - | Unshielded | 70mOhm | - | 23MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-180MFIXED IND 18UH 2.15A 90 MOHM SMD |
4,961 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.15 A | - | Unshielded | 90mOhm | - | 18MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-270MFIXED IND 27UH 1.76A 110MOHM SMD |
2,701 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.76 A | - | Unshielded | 110mOhm | - | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-560KFIXED IND 56UH 1.17A 190MOHM SMD |
1,621 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.17 A | - | Unshielded | 190mOhm | - | 10MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-331KFIXED IND 330UH 520MA 1.15OHM SM |
3,002 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | - | Unshielded | 1.15Ohm | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-391KFIXED IND 390UH 480MA 1.3OHM SMD |
1,147 | - |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 480 mA | - | Unshielded | 1.3Ohm | - | 3MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

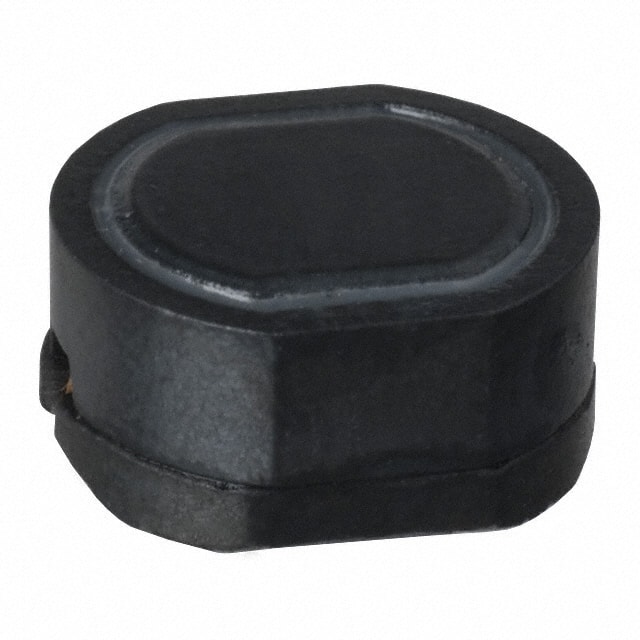

PM105S-390MFIXED IND 39UH 1.28A 160MOHM SMD |
3,731 | - |
|
Datasheet | PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.28 A | - | Shielded | 160mOhm Max | - | 15MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-121MFIXED IND 120UH 730MA 380MOHM SM |
2,212 | - |
|
Datasheet | PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 730 mA | - | Shielded | 380mOhm Max | - | 7MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-181MFIXED IND 180UH 600MA 620MOHM SM |
2,870 | - |
|
Datasheet | PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 600 mA | - | Shielded | 620mOhm Max | - | 5MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
PM105S-391MFIXED IND 390UH 410MA 1.18OHM SM |
2,715 | - |
|
Datasheet | PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 410 mA | - | Shielded | 1.18Ohm Max | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
