Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

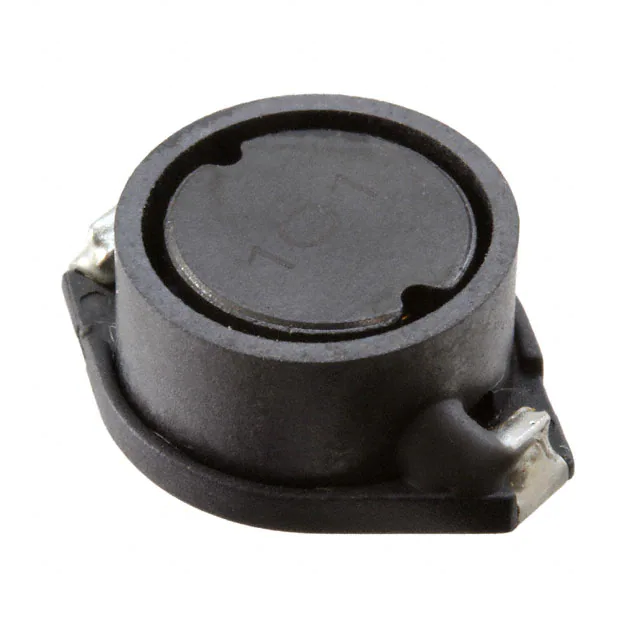

PM5022S-151MFIXED IND 150UH 1.3A 293MOHM SMD |
3,000 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.3 A | 2.1A | Shielded | 293mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-221MFIXED IND 220UH 1.1A 470MOHM SMD |
4,991 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 1.9A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-330MFIXED IND 33UH 2.8A 75 MOHM SMD |
2,952 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.8 A | 5A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-331MFIXED IND 330UH 860MA 780MOHM SM |
2,791 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 860 mA | 1.1A | Shielded | 780mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-471MFIXED IND 470UH 730MA 1.08OHM SM |
4,097 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 730 mA | 1.1A | Shielded | 1.08Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-680MFIXED IND 68UH 2A 138 MOHM SMD |
3,114 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 3A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
|
PM5022S-681MFIXED IND 680UH 640MA 1.4OHM SMD |
2,280 | - |
|
Datasheet | PM5022S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 640 mA | 960mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.732" L x 0.602" W (18.60mm x 15.30mm) | 0.299" (7.60mm) |
|
PM7032S-101MFIXED IND 100UH 510MA 540MOHM SM |
1,058 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 510 mA | 450mA | Shielded | 540mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-102MFIXED IND 1MH 130MA 5.74 OHM SMD |
1,452 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 130 mA | 130mA | Shielded | 5.74Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-220MFIXED IND 22UH 1A 130 MOHM SMD |
3,087 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 960mA | Shielded | 130mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
