Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM7032S-221MFIXED IND 220UH 330MA 1.26OHM SM |
2,079 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 330 mA | 290mA | Shielded | 1.26Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-330MFIXED IND 33UH 860MA 190MOHM SMD |
4,133 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 860 mA | 750mA | Shielded | 190mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-3R3MFIXED IND 3.3UH 2.2A 28 MOHM SMD |
1,431 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 1.9A | Shielded | 28mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-470MFIXED IND 47UH 710MA 290MOHM SMD |
1,755 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 710 mA | 670mA | Shielded | 290mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-471MFIXED IND 470UH 240MA 2.46OHM SM |
3,481 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 240 mA | 200mA | Shielded | 2.46Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-4R7MFIXED IND 4.7UH 1.8A 43 MOHM SMD |
3,140 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.8 A | 1.7A | Shielded | 43mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
PM7032S-680MFIXED IND 68UH 620MA 370MOHM SMD |
4,258 | - |
|
Datasheet | PM7032S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 620 mA | 590mA | Shielded | 370mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|

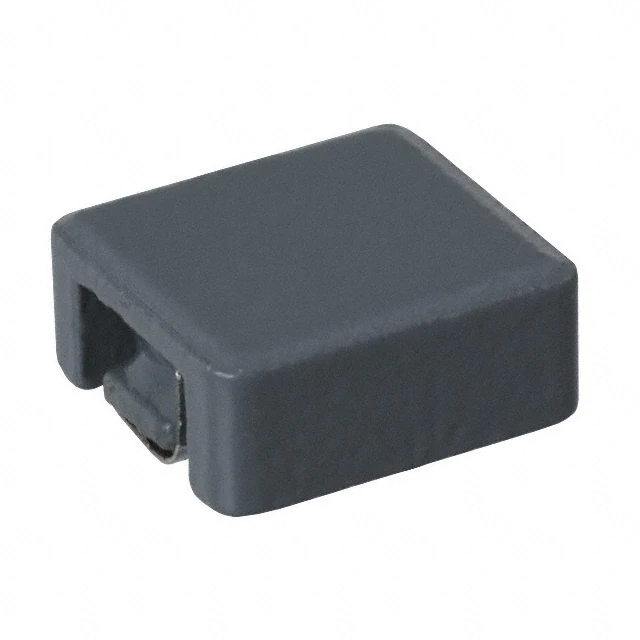

PM7232S-R11MFIXED IND 110NH 13A SMD |
2,869 | - |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 110 nH | ±20% | 13 A | - | Shielded | - | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PM74S-181MFIXED IND 180UH 400MA 1 OHM SMD |
4,572 | - |
|
Datasheet | PM74S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | -15%, +20% | 400 mA | - | Shielded | 1Ohm Max | - | 6MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
PM75-101KFIXED IND 100UH 720MA 430MOHM SM |
1,255 | - |
|
Datasheet | PM75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | - | Unshielded | 430mOhm Max | - | 9MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
