Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F124AI-RCFIXED IND 120UH 135MA 8.16OHM TH |
4,567 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 120 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 40 @ 790kHz | 3.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F504AI-RCFIXED IND 500UH 91MA 18 OHM TH |
4,413 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 500 µH | ±5% | 91 mA | - | Unshielded | 18Ohm Max | 49 @ 790kHz | 1.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
70F822AF-RCFIXED IND 82MH 32MA 238 OHM TH |
3,366 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 mH | ±5% | 32 mA | - | Unshielded | 238Ohm Max | 50 @ 79kHz | 168kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
|
70F126AI-RCFIXED IND 1.2UH 1.666A 72MOHM TH |
2,589 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.2 µH | ±10% | 1.666 A | - | Unshielded | 72mOhm Max | 45 @ 7.9MHz | 118MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

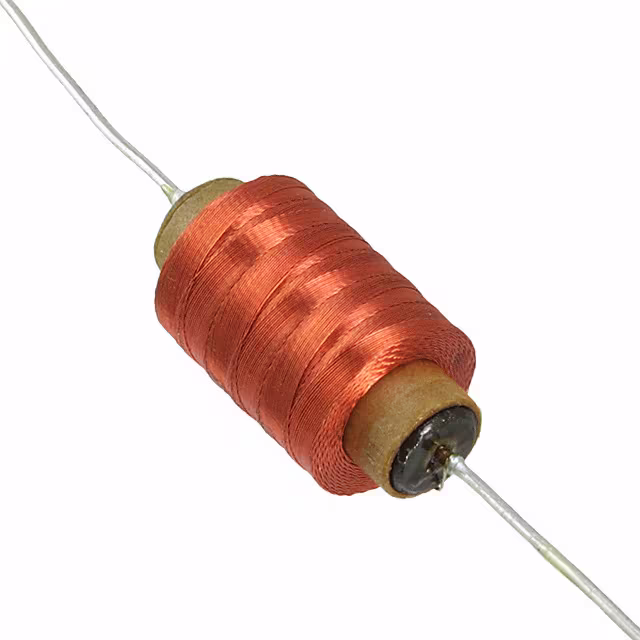

70F151AF-RCFIXED IND 150MH 44MA 328 OHM TH |
1,846 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 mH | ±5% | 44 mA | - | Unshielded | 328Ohm Max | 49 @ 25kHz | 77kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.500" Dia x 0.880" L (12.70mm x 22.35mm) | - |
|
|
70F562AF-RCFIXED IND 56MH 36MA 189 OHM TH |
4,465 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 mH | ±5% | 36 mA | - | Unshielded | 189Ohm Max | 57 @ 79kHz | 188kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
|
70F823AI-RCFIXED IND 8.2MH 40MA 92.4 OHM TH |
3,789 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.2 mH | ±5% | 40 mA | - | Unshielded | 92.4Ohm Max | 48 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|
|
70F154AI-RCFIXED IND 150UH 135MA 8.16OHM TH |
4,548 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 150 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 47 @ 790kHz | 3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
|
70F564AI-RCFIXED IND 560UH 88MA 19.2 OHM TH |
2,376 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 560 µH | ±5% | 88 mA | - | Unshielded | 19.2Ohm Max | 41 @ 790kHz | 1.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
|
70F156AI-RCFIXED IND 1.5UH 1.443A 96MOHM TH |
1,234 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.5 µH | ±10% | 1.443 A | - | Unshielded | 96mOhm Max | 42 @ 7.9MHz | 102MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
