Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F272AF-RCFIXED IND 27MH 45MA 120 OHM TH |
2,105 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±5% | 45 mA | - | Unshielded | 120Ohm Max | 61 @ 79kHz | 244kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|
70F273AI-RCFIXED IND 2.7MH 57MA 45.6 OHM TH |
2,158 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.7 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 50 @ 250kHz | 880kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
|
70F304AI-RCFIXED IND 300UH 106MA 13.2OHM TH |
3,473 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 300 µH | ±5% | 106 mA | - | Unshielded | 13.2Ohm Max | 46 @ 790kHz | 2.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F687AP-RCFIXED IND 680NH 1A 200 MOHM TH |
1,895 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±20% | 1 A | - | Unshielded | 200mOhm Max | 48 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F752AF-RCFIXED IND 75MH 33MA 222 OHM TH |
2,057 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 75 mH | ±5% | 33 mA | - | Unshielded | 222Ohm Max | 53 @ 79kHz | 174kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
70F337AP-RCFIXED IND 330NH 1.69A 700MOHM TH |
3,598 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 330 nH | ±20% | 1.69 A | - | Unshielded | 700mOhm Max | 47 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F754AI-RCFIXED IND 750UH 80MA 22.9 OHM TH |
2,820 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 750 µH | ±5% | 80 mA | - | Unshielded | 22.9Ohm Max | 40 @ 790kHz | 1.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.210" Dia x 0.250" L (5.33mm x 6.35mm) | - |
|
|
70F755AI-RCFIXED IND 75UH 162MA 4.56 OHM TH |
2,305 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 75 µH | ±5% | 162 mA | - | Unshielded | 4.56Ohm Max | 38 @ 2.5MHz | 7.2MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|

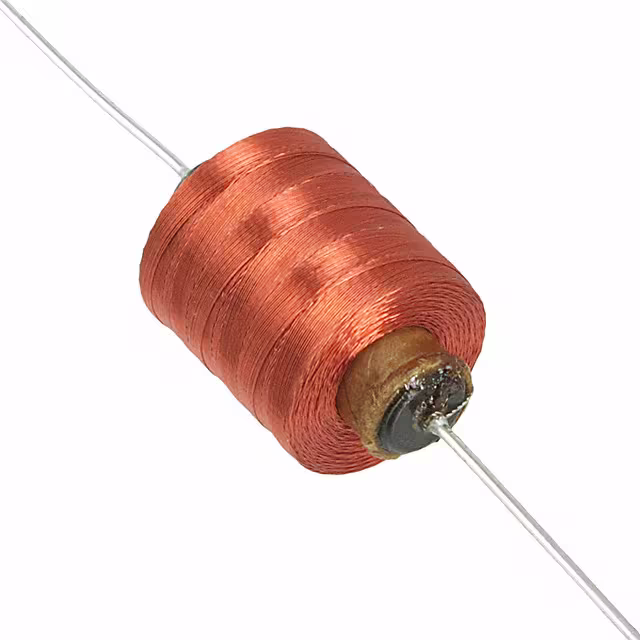

70F391AF-RCFIXED IND 390MH 33MA 617 OHM TH |
2,066 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
|
|
70F756AI-RCFIXED IND 7.5UH 566MA 624MOHM TH |
2,418 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 µH | ±10% | 566 mA | - | Unshielded | 624mOhm Max | 32 @ 7.9MHz | 44MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
