Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3010-150MFIXED IND 15UH 800MA 612MOHM SMD |
2,750 | - |
|
Datasheet | SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 500mA | Shielded | 612mOhm Max | 11 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-220MFIXED IND 22UH 700MA 936MOHM SMD |
4,615 | - |
|
Datasheet | SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 400mA | Shielded | 936mOhm Max | 14 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
SRN3010-330MFIXED IND 33UH 500MA 1.32OHM SMD |
1,826 | - |
|
Datasheet | SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 320mA | Shielded | 1.32Ohm Max | 14 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-470MFIXED IND 47UH 350MA 1.92OHM SMD |
2,285 | - |
|
Datasheet | SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 280mA | Shielded | 1.92Ohm Max | 20 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
CW100505-27NJ3FIXED IND 27NH 400MA 298MOHM SMD |
4,946 | - |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 298mOhm | 26 @ 250MHz | 2.48GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-56NJ3FIXED IND 56NH 200MA 970MOHM SMD |
4,875 | - |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 970mOhm | 22 @ 200MHz | 1.76GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-39NJ3FIXED IND 39NH 320MA 550MOHM SMD |
4,538 | - |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 320 mA | - | Unshielded | 550mOhm | 25 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

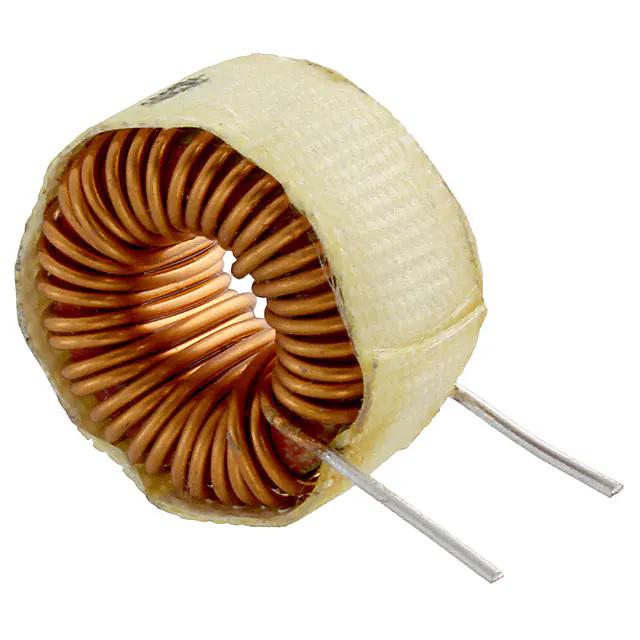

2000-1R5-V-RCFIXED IND 1.5UH 18.7A 2 MOHM TH |
2,526 | - |
|
Datasheet | 2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 1.5 µH | ±20% | 18.7 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
|
2000-2R7-H-RCFIXED IND 2.7UH 14.7A 3 MOHM TH |
2,144 | - |
|
Datasheet | 2000 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 2.7 µH | ±20% | 14.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia (17.27mm) | 0.410" (10.41mm) |
|
|
2000-R8-V-RCFIXED IND 800NH 22.1A 1.4MOHM TH |
2,143 | - |
|
Datasheet | 2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | 800 nH | ±20% | 22.1 A | - | Unshielded | 1.4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
