Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM201212-12NKLFIXED IND 12NH 535MA 230MOHM SMD |
2,344 | - |
|
Datasheet | CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Polymer | 12 nH | ±10% | 535 mA | - | Unshielded | 230mOhm Max | 10 @ 100MHz | 3.3GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CW252016-2R2GFIXED IND 2.2UH 250MA 2.8OHM SMD |
3,517 | - |
|
Datasheet | CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±2% | 250 mA | - | Unshielded | 2.8Ohm Max | 25 @ 7.9MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM1038S-R50M-RCFIXED IND 500NH 23A 1.9 MOHM SMD |
1,553 | - |
|
Datasheet | PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 500 nH | ±20% | 23 A | 32A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
PM2100-271K-RCFIXED IND 270UH 3.4A 82 MOHM SMD |
4,214 | - |
|
Datasheet | PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 270 µH | ±10% | 3.4 A | - | Unshielded | 82mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.200" L x 1.000" W (30.48mm x 25.40mm) | - |
|

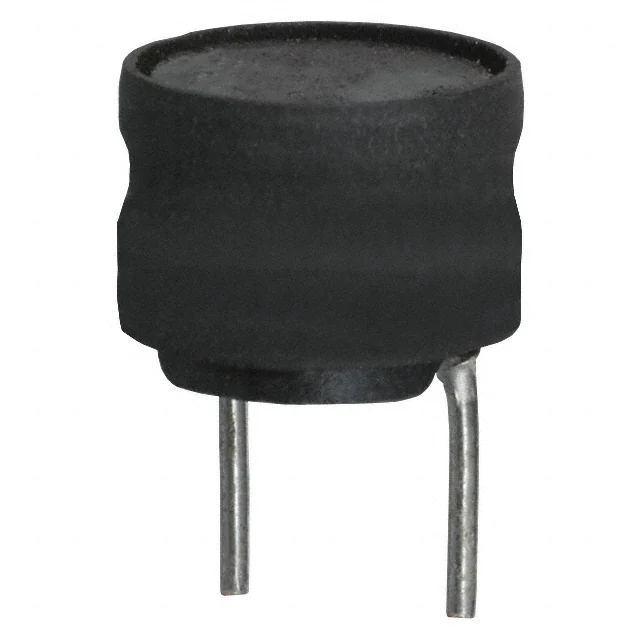

RL262-221J-RCFIXED IND 220UH 150MA 3 OHM TH |
3,411 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 150 mA | - | Unshielded | 3Ohm Max | 60 @ 796kHz | 4.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-681J-RCFIXED IND 680UH 100MA 6 OHM TH |
3,416 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 100 mA | - | Unshielded | 6Ohm Max | 60 @ 796kHz | 2.7MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-682J-RCFIXED IND 6.8MH 30MA 40 OHM TH |
1,848 | - |
|
Datasheet | RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 80 @ 252kHz | 700kHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL855-821K-RCFIXED IND 820UH 310MA 3.8 OHM TH |
1,991 | - |
|
Datasheet | RL855 | Radial, Vertical Cylinder (Open) | Tube | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 310 mA | - | Unshielded | 3.8Ohm Max | 34 @ 790kHz | 1.7MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
SDE6603-8R2MFIXED IND 8.2UH SMD |
3,411 | - |
|
Datasheet | SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SRP4020-5R6MFIXED IND 5.6UH 2.4A 90 MOHM SMD |
2,083 | - |
|
Datasheet | SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 5.6 µH | ±20% | 2.4 A | 3.5A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
