Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDWK4040T1R5MMVFIXED IND 1.5UH 4.1A 41MOHM SMD |
1,408 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.1 A | 7A | Shielded | 41mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
FP0404R1-R100-RFIXED IND 100NH 40A 0.32MOHM SMD |
1,800 | - |
|
Datasheet | FP0404 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 40 A | 15.6A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
74404063681FIXED IND 680UH 270MA 5.526 OHM |
2,027 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 270 mA | 290mA | Shielded | 5.526Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
SDR1305-330MFIXED IND 33UH 2.5A 85 MOHM SMD |
1,795 | - |
|
Datasheet | SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 2.6A | Unshielded | 85mOhm Max | 23 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.201" (5.10mm) |
|

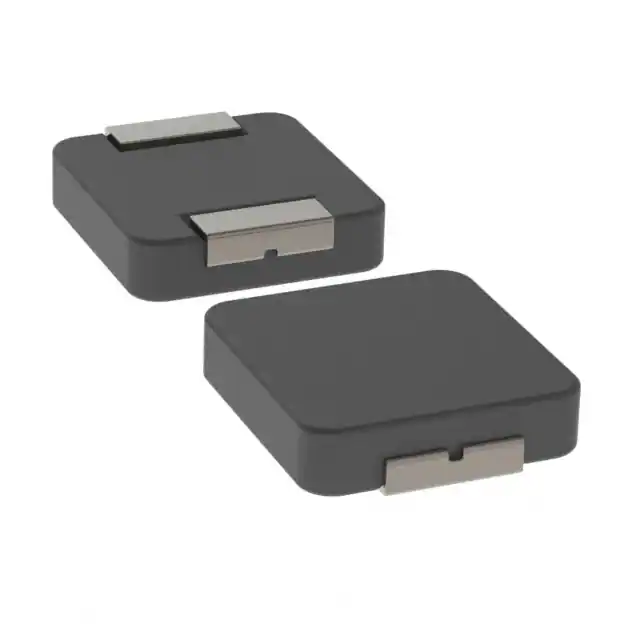

PM4345.103NLTFIXED IND 10UH 2.3A 199MOHM SMD |
17,273 | - |
|
Datasheet | PM4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.3 A | 3.4A | Shielded | 199mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
PM4340.472NLTFIXED IND 4.7UH 4.6A 53MOHM SMD |
7,788 | - |
|
Datasheet | PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
ETQ-P3MR68KVPFIXED IND 680NH 10.2A 8.36 MOHM |
7,297 | - |
|
Datasheet | PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 10.2 A | 15.9A | Shielded | 8.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
PA4548.222NLTFIXED IND 2.2UH 6A 28 MOHM SMD |
3,618 | - |
|
Datasheet | PA4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6 A | 12A | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
RCR875DNP-102KFIXED IND 1MH 230MA 2.72 OHM TH |
2,615 | - |
|
Datasheet | RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1 mH | ±10% | 230 mA | - | Shielded | 2.72Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
LCDND3030MKT2R2MMFIXED IND 2.2UH 2.1A 112MOHM SMD |
2,436 | - |
|
Datasheet | LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.1 A | 2.8A | Unshielded | 112mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74406032033FIXED IND 3.3UH 1.59A 77MOHM SMD |
2,116 | - |
|
Datasheet | WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.59 A | 1.31A | Shielded | 77mOhm Max | - | 132MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
PA4548.102NLTFIXED IND 1UH 9A 13.5 MOHM SMD |
1,834 | - |
|
Datasheet | PA4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 14.5A | Unshielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
IHLP1212BZEV2R2M01IHLP-1212BZ-01 2.2 20% EV E3 |
1,197 | - |
|
Datasheet | IHLP-1212BZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 3.55 A | 4.93A | Shielded | 80.37mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
74406042100FIXED IND 10UH 1.61A 133MOHM SMD |
1,027 | - |
|
Datasheet | WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.61 A | 1.1A | Shielded | 133mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
MHE05034R7M-10HIGH CURRENT LOW DCR POWER INDUC |
7,767 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.9 A | 8.5A | Shielded | 35.5mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
CR43NP-3R3MCFIXED IND 3.3UH 1.44A 86.2 MOHM |
7,145 | - |
|
Datasheet | CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.44 A | - | Unshielded | 86.2mOhm Max | - | 60MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
SBC2-1R0-612FIXED IND 1UH 6.1A 10 MOHM TH |
3,758 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 6.1 A | 6.4A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
1248AS-H-150M=P3FIXED IND 15UH 2.7A 78 MOHM SMD |
3,000 | - |
|
Datasheet | DEM8040C | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.7 A | 3.4A | Shielded | 78mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SBC4-6R8-452FIXED IND 6.8UH 4.5A 30 MOHM TH |
2,613 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.5 A | 5.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
SBC3-101-961FIXED IND 100UH 960MA 260MOHM TH |
2,055 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 960 mA | 1A | Unshielded | 260mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
