Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1005-152KFIXED IND 1.5MH 170MA 5.2OHM SMD |
822 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 170 mA | 240mA | Shielded | 5.2Ohm Max | 53 @ 252kHz | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
IHLP1616ABER47NMA1IHLP-1616AB-A1 .047 20% ER E3 |
798 | - |
|
Datasheet | IHLP-1616AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 nH | ±20% | 13 A | 32A | Shielded | 3.75mOhm Max | - | 565MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
CLF6045T-4R7N-DFIXED IND 4.7UH 3.2A 29.9MOHM SM |
756 | - |
|
Datasheet | CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.2 A | 2.5A | Shielded | 29.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
SLF10165T-2R2N6R33PFFIXED IND 2.2UH 6.3A 10.9MOHM SM |
661 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.3 A | 8.9A | Shielded | 10.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
SRR1206-330YLFIXED IND 33UH 1.9A 90 MOHM SMD |
508 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 1.9 A | 3.1A | Shielded | 90mOhm Max | 21 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-101KLFIXED IND 100UH 1A 400 MOHM SMD |
494 | - |
|
Datasheet | SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1 A | 2A | Shielded | 400mOhm Max | 12 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
|
SRR1206-220MLFIXED IND 22UH 2.3A 62 MOHM SMD |
395 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 3.8A | Shielded | 62mOhm Max | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1005-151KFIXED IND 150UH 550MA 520MOHM SM |
189 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 550 mA | 660mA | Shielded | 520mOhm Max | 28 @ 796kHz | 6.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1206-5R0MLFIXED IND 5UH 4.7A 22 MOHM SMD |
160 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 4.7 A | 8.3A | Shielded | 22mOhm Max | 21 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1205-5R0MLFIXED IND 5UH 4A 35 MOHM SMD |
115 | - |
|
Datasheet | SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 4 A | 8.2A | Shielded | 35mOhm Max | 20 @ 7.96MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
CDMC6D28NP-R47MCFIXED IND 470NH 14A 4.2 MOHM SMD |
46,186 | - |
|
Datasheet | CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 470 nH | ±20% | 14 A | 13.6A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH8D43NP-470NCFIXED IND 47UH 1.3A 150 MOHM SMD |
20,756 | - |
|
Datasheet | CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 1.3 A | 1.8A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
RCH110NP-681KFIXED IND 680UH 650MA 1.1 OHM TH |
5,951 | - |
|
Datasheet | RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 650 mA | - | Unshielded | 1.1Ohm Max | - | 2.1MHz | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
IHLP1616BZER1R0M0HFIXED IND 1UH 6.1A 28.5 MOHM SMD |
5,283 | - |
|
Datasheet | IHLP-1616BZ-0H | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 6.1 A | 10.3A | Shielded | 28.5mOhm Max | - | 91MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.079" (2.00mm) |
|
PA5404.683NLTFIXED IND 68UH 1.2A 445MOHM SMD |
4,297 | - |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 1.2 A | 2A | Shielded | 445mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
CMLE063T-R36MSFIXED IND 360NH 25A 2.55MOHM SMD |
3,124 | - |
|
Datasheet | CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 360 nH | ±20% | 25 A | 25A | Shielded | 2.55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH8D43NP-6R8NCFIXED IND 6.8UH 3.9A 25 MOHM SMD |
2,736 | - |
|
Datasheet | CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.9 A | 4.4A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

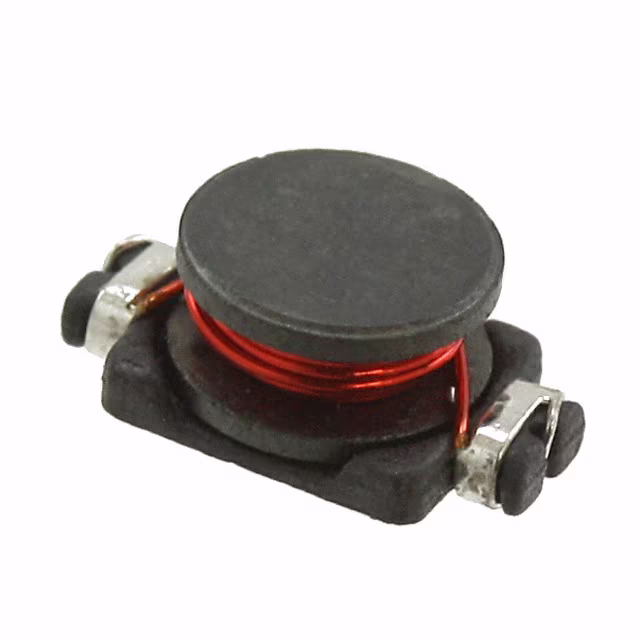

P0770.102NLTFIXED IND 1UH 2.9A 50 MOHM SMD |
2,581 | - |
|
Datasheet | P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA5187.151HLTFIXED IND 150NH 65A 0.12MOHM SMD |
2,282 | - |
|
Datasheet | PA5187 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 65 A | 75A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
PA5187.121HLTFIXED IND 120NH 67A 0.12MOHM SMD |
2,075 | - |
|
Datasheet | PA5187 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 67 A | 92A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
