Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

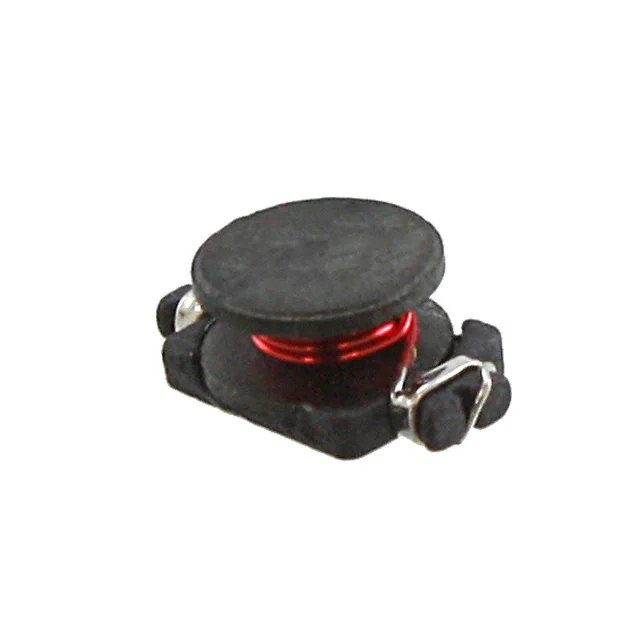

P0770.222NLTFIXED IND 2.2UH 2.3A 70 MOHM SMD |
6,332 | - |
|
Datasheet | P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 2.3 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4390.121HLTFIXED IND 120NH 68A 0.185MOHM SM |
5,292 | - |
|
Datasheet | PA4390.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 68 A | 78A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
PA5404.472NLTFIXED IND 4.7UH 6.5A 30.8MOHM SM |
5,026 | - |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 6.5 A | 10A | Shielded | 30.8mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5404.153NLTFIXED IND 15UH 3.5A 92 MOHM SMD |
4,880 | - |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 3.5 A | 6A | Shielded | 92mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA4390.331HLTFIXED IND 330NH 68A 0.185MOHM SM |
4,646 | - |
|
Datasheet | PA4390.XXXHLT | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 68 A | 31A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
SRR1005-4R7MFIXED IND 4.7UH 2.5A 40 MOHM SMD |
4,073 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 3.8A | Shielded | 40mOhm Max | 25 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
SRR1206-101YLFIXED IND 100UH 1.1A 220MOHM SMD |
3,086 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 1.1 A | 1.9A | Shielded | 220mOhm Max | 13 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1005-150MFIXED IND 15UH 1.7A 85 MOHM SMD |
2,666 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.7 A | 2.1A | Shielded | 85mOhm Max | 40 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-471KFIXED IND 470UH 300MA 1.6OHM SMD |
1,758 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 300 mA | 450mA | Shielded | 1.6Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-2R2MFIXED IND 2.2UH 3.1A 27 MOHM SMD |
1,700 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.1 A | 6.1A | Shielded | 27mOhm Max | 25 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-101KFIXED IND 100UH 680MA 420MOHM SM |
1,509 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 680 mA | 900mA | Shielded | 420mOhm Max | 35 @ 796kHz | 7.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1206-151KLFIXED IND 150UH 900MA 320MOHM SM |
1,293 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 900 mA | 1.6A | Shielded | 320mOhm Max | 13 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
CLF6045T-680M-DFIXED IND 68UH 1A 258 MOHM SMD |
1,244 | - |
|
Datasheet | CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1 A | 790mA | Shielded | 258mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
SPM7054VC-1R0M-DFIXED IND 1UH 16.2A 0.0049OHM SM |
1,103 | - |
|
Datasheet | SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 16.2 A | 26.8A | Shielded | 4.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
SRR1005-680YFIXED IND 68UH 820MA 340MOHM SMD |
995 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 820 mA | 1.1A | Shielded | 340mOhm Max | 35 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-182KFIXED IND 1.8MH 160MA 5.7OHM SMD |
975 | - |
|
Datasheet | SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 160 mA | 230mA | Shielded | 5.7Ohm Max | 65 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1206-681KLFIXED IND 680UH 400MA 1.5OHM SMD |
957 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 400 mA | 700mA | Shielded | 1.5Ohm Max | 11 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-151KLFIXED IND 150UH 800MA 580MOHM SM |
900 | - |
|
Datasheet | SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 800 mA | 1.5A | Shielded | 580mOhm Max | 10 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
|
SRR1206-270MLFIXED IND 27UH 2A 68 MOHM SMD |
846 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2 A | 3.7A | Shielded | 68mOhm Max | 21 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-102KLFIXED IND 1MH 300MA 2.3 OHM SMD |
829 | - |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 300 mA | 540mA | Shielded | 2.3Ohm Max | 10 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
