Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZER1R0M5AFIXED IND 1UH 10.8A 12.1MOHM SMD |
1,567 | - |
|
Datasheet | IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 10.8 A | 8A | Shielded | 12.1mOhm Max | - | 60.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
IMC1812ER330KFIXED IND 33UH 160MA 4 OHM SMD |
1,404 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IHLP2020CZERR22M01FIXED IND 220NH 15.5A 4.52 MOHM |
1,394 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 15.5 A | 21A | Shielded | 4.52mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
SPM3012T-4R7M-LRFIXED IND 4.7UH 1.5A 266.3 MOHM |
815 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.5 A | 2.4A | Shielded | 266.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
IHLP1212AEERR82M11FIXED IND 820NH 4.9A 26 MOHM SMD |
7,795 | - |
|
Datasheet | IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 4.9 A | 5.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.142" L x 0.118" W (3.60mm x 3.00mm) | 0.059" (1.50mm) |
|
SRR1260A-220MFIXED IND 22UH 4A 43 MOHM SMD |
5,749 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | 3.7A | Shielded | 43mOhm Max | 29 @ 2.52MHz | 13.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-1R0YFIXED IND 1UH 9.4A 7.8 MOHM SMD |
4,894 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 9.4 A | 10A | Shielded | 7.8mOhm Max | 26 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

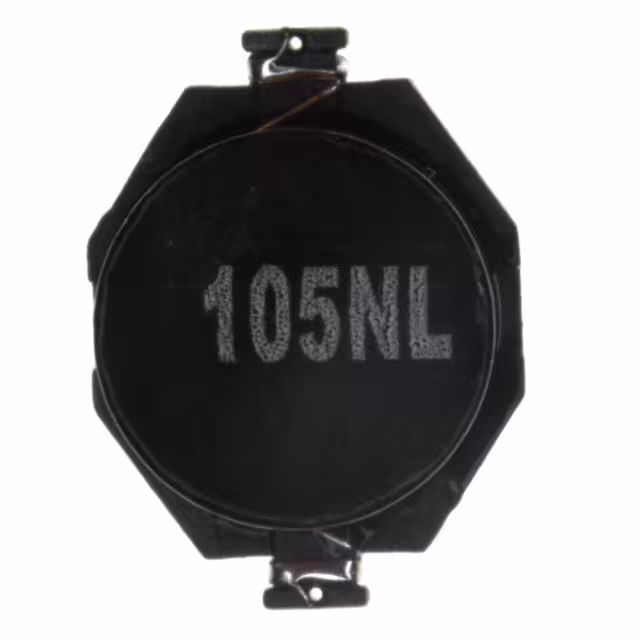

P0752.105NLTFIXED IND 1MH 300MA 3.3 OHM SMD |
4,411 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3.3Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
IHLP2525CZER5R6M8AFIXED IND 5.6UH 5.3A 45.6MOHM SM |
4,264 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 5.3 A | 4.8A | Shielded | 45.6mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRR1260A-120MFIXED IND 12UH 5.2A 23 MOHM SMD |
4,170 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 5.2 A | 5A | Shielded | 23mOhm Max | 27 @ 2.52MHz | 19.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-100MFIXED IND 10UH 5.5A 20 MOHM SMD |
4,101 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.5 A | 5.5A | Shielded | 20mOhm Max | 32 @ 2.52MHz | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-5R6YFIXED IND 5.6UH 6.7A 16.2MOHM SM |
3,748 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.7 A | 6.9A | Shielded | 16.2mOhm Max | 19 @ 7.96MHz | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-331KFIXED IND 330UH 1.15A 580MOHM SM |
3,081 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.15 A | 1.1A | Shielded | 580mOhm Max | 22 @ 796kHz | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLP2525BDER3R3M01FIXED IND 3.3UH 5A 51.6 MOHM SMD |
2,652 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5 A | 13A | Shielded | 51.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
MPEV1D0630L150FIXED IND 15UH 3.3A 130.2MOHM SM |
2,509 | - |
|
Datasheet | METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 3.3 A | 4A | Shielded | 130.2mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SRR1260A-6R8YFIXED IND 6.8UH 6.3A 18 MOHM SMD |
2,320 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 6.3 A | 6.5A | Shielded | 18mOhm Max | 20 @ 7.96MHz | 28.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
IHLP2525BDER8R2M01FIXED IND 8.2UH 3A 106 MOHM SMD |
2,220 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 3 A | 8A | Shielded | 106mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRR1260A-8R2YFIXED IND 8.2UH 5.7A 19.5MOHM SM |
2,206 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 5.7 A | 5.8A | Shielded | 19.5mOhm Max | 18 @ 7.96MHz | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRP7028A-R15YFIXED IND 150NH 27A 1.9 MOHM SMD |
2,088 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 150 nH | ±30% | 27 A | 45A | Shielded | 1.9mOhm Max | 5 @ 100kHz | 220MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER6R8M51FIXED IND 6.8UH 4.4A 57.6MOHM SM |
2,066 | - |
|
Datasheet | IHLP-2525CZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.4 A | 4.4A | Shielded | 57.6mOhm Max | - | 19.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
