Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17104CFIXED IND 100UH 740MA 350MOHM TH |
175 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 740 mA | - | Unshielded | 350mOhm Max | 90 @ 100kHz | 7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
SPM3012T-2R2M-LRFIXED IND 2.2UH 2.6A 102.3 MOHM |
15,248 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.6 A | 3.7A | Shielded | 102.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
CDRH125/LDNP-150MCFIXED IND 15UH 4A 35 MOHM SMD |
8,434 | - |
|
Datasheet | CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4 A | - | Shielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
IHLP2525CZER6R8M1AIHLP-2525CZ-1A 6.8 20% ER E3 |
7,914 | - |
|
Datasheet | IHLP-2525CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 5.5 A | 4A | Shielded | 46.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP1616BZERR22M5AFIXED IND 0.22UH 12.6 A 7.5 MOHM |
5,928 | - |
|
Datasheet | IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 12.6 A | 12A | Shielded | 7.5mOhm Max | - | 171MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
B82462A4105K000FIXED IND 1MH 110MA 13 OHM SMD |
4,900 | - |
|
Datasheet | B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 110 mA | 180mA | Unshielded | 13Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
SRP4012TA-R36MFIXED IND 360NH 6.5A 18 MOHM SMD |
4,234 | - |
|
Datasheet | SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 360 nH | ±20% | 6.5 A | 8.5A | Shielded | 18mOhm Max | 10 @ 100kHz | 143MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
SPM5030VT-3R3M-DFIXED IND 3.3UH 5A 0.0335OHM SMD |
4,182 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 5 A | 7.2A | Shielded | 33.5mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
|
SRP4012TA-2R2MFIXED IND 2.2UH 2.8A 80 MOHM SMD |
4,125 | - |
|
Datasheet | SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 2.8 A | 3.5A | Shielded | 80mOhm Max | 10 @ 100kHz | 58MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
SRP7030-1R5MFIXED IND 1.5UH 9A 0.015OHM SMD |
4,083 | - |
|
Datasheet | SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.5 µH | ±20% | 9 A | 14A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|

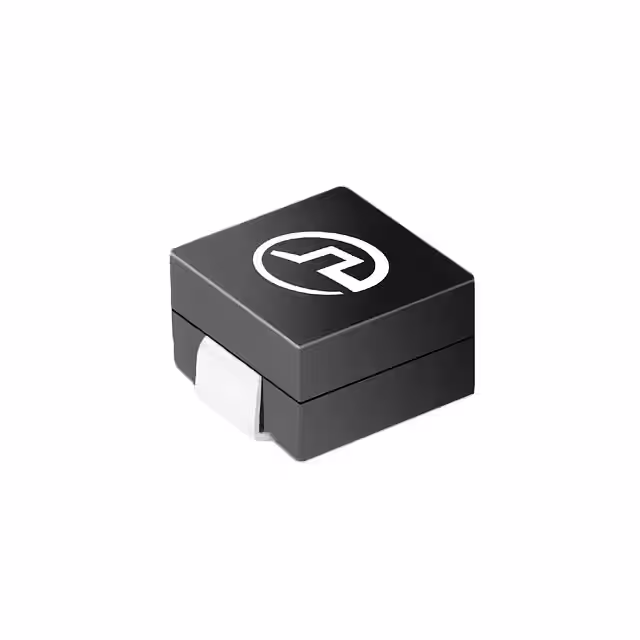

PA2891.321HLTFIXED IND 320NH 72A 0.22MOHM SMD |
4,032 | - |
|
Datasheet | PA2981.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±10% | 72 A | 56A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
|
|
SRP4012TA-R47MFIXED IND 470NH 6A 20 MOHM SMD |
3,927 | - |
|
Datasheet | SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 6 A | 6.5A | Shielded | 20mOhm Max | 10 @ 100kHz | 120MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
IHLP2020CZER3R3M8AFIXED IND 3.3UH 5.3A 47MOHM SMD |
3,458 | - |
|
Datasheet | IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5.3 A | 5.5A | Shielded | 47mOhm Max | - | 33.4MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
|
SRP7030-8R2MFIXED IND 8.2UH 4A 0.068OHM SMD |
3,357 | - |
|
Datasheet | SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
PA3288.221HLTFIXED IND 220NH 64A 0.29MOHM SMD |
3,332 | - |
|
Datasheet | PA3288.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 64 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
SRR0906-332YLFIXED IND 3.3MH 120MA 11 OHM SMD |
2,647 | - |
|
Datasheet | SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 120 mA | 150mA | Shielded | 11Ohm Max | 100 @ 252kHz | 1.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
|
B82462A4222M000FIXED IND 2.2UH 2.3A 42 MOHM SMD |
2,381 | - |
|
Datasheet | B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.3 A | 3.8A | Unshielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SPM5030VT-1R5M-DFIXED IND 1.5UH 7.9A 0.0141OHM |
2,158 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 7.9 A | 9.2A | Shielded | 14.1mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
|
SRP4012TA-5R6MFIXED IND 5.6UH 1.7A 208MOHM SMD |
1,801 | - |
|
Datasheet | SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 1.7 A | 2.3A | Shielded | 208mOhm Max | 10 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
PA2891.211HLFIXED IND 210NH 71A 0.22MOHM SMD |
1,594 | - |
|
Datasheet | PA2981.XXXHL | Nonstandard | Tray | Active | - | - | 210 nH | ±10% | 71 A | 85A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
