Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7843340470FIXED IND 4.7UH 5A 28.9MOHM SMD |
510 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5 A | 9.6A | Shielded | 28.9mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
744373360047FIXED IND 470NH 9.2A 0.0074OHM |
440 | - |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 9.2 A | 21.5A | Shielded | 7.4mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
VLBU10060120T-R10L-1FIXED IND 100NH 83A 0.12MOHM SMD |
300 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 83 A | 133A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7687714681FIXED IND 680UH 550MA 2.25OHM SM |
267 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 550 mA | 610mA | Shielded | 2.25Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
7687714222FIXED IND 2.2MH 260MA 6.5OHM SMD |
230 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 260 mA | 370mA | Shielded | 6.5Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
1210R-221KFIXED IND 220NH 805MA 320MOHM SM |
7,087 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 805 mA | - | Unshielded | 320mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-470KFIXED IND 47NH 636MA 300MOHM SMD |
4,522 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 47 nH | ±10% | 636 mA | - | Unshielded | 300mOhm Max | 30 @ 50MHz | 800MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-821KFIXED IND 820NH 556MA 670MOHM SM |
1,521 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±10% | 556 mA | - | Unshielded | 670mOhm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

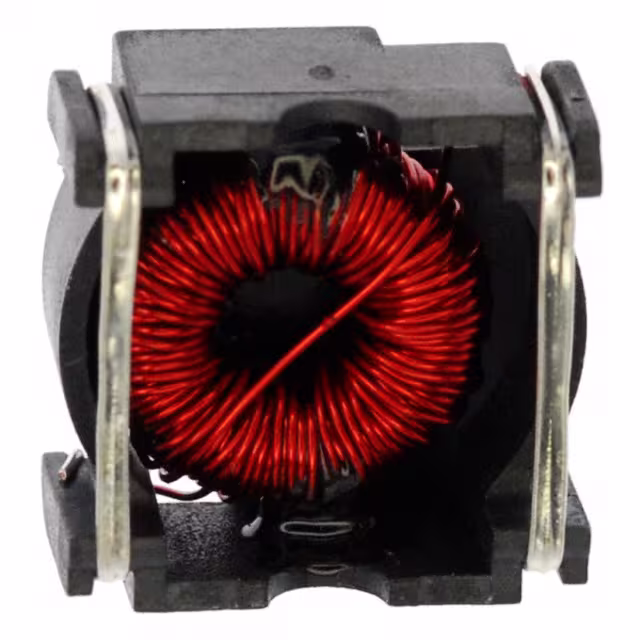

PE-53819SNLTFIXED IND 173UH 540MA 600MOHM SM |
978 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
1210R-101KFIXED IND 100NH 1.018A 200 MOHM |
882 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 1.018 A | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
7847111020WE-RCIT ROD CORE INDUCTOR THT 2. |
602 | - |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 7 A | 18A | Unshielded | 6.5mOhm | - | 180MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.232" Dia x 0.539" L (5.90mm x 13.70mm) | - |
|
|
1210R-100KFIXED IND 10NH 966MA 130MOHM SMD |
408 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 10 nH | ±10% | 966 mA | - | Unshielded | 130mOhm Max | 30 @ 50MHz | 2GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
UP2B-4R7-RFIXED IND 4.7UH 5.5A 16.5MOHM SM |
347 | - |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.5 A | 4.2A | Unshielded | 16.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
B82464P4154M000FIXED IND 150UH 850MA 320MOHM SM |
289 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 850 mA | 900mA | Shielded | 320mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

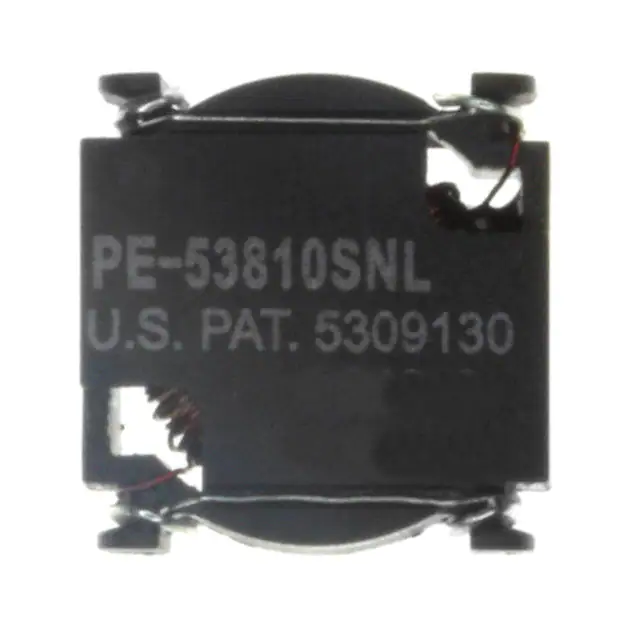

PE-53810SNLFIXED IND 176UH 300MA 1.4OHM SMD |
774 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 176 µH | ±20% | 300 mA | - | Shielded | 1.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

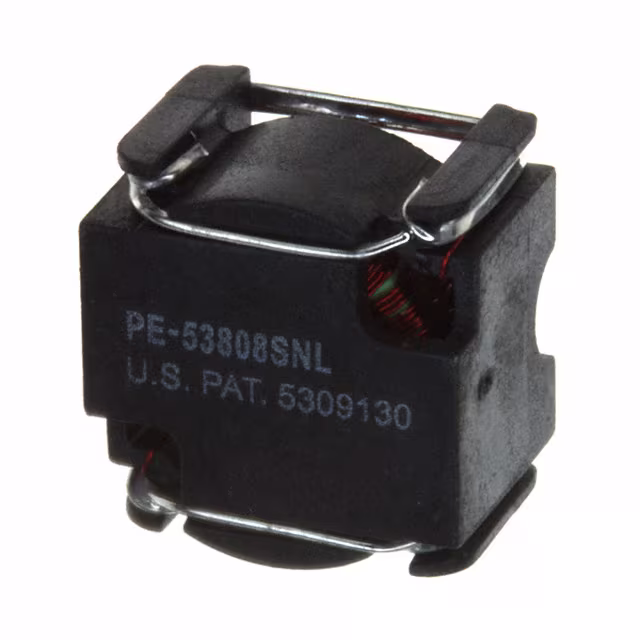

PE-53808SNLFIXED IND 374UH 200MA 2.7OHM SMD |
544 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 374 µH | ±20% | 200 mA | - | Shielded | 2.7Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
74455247FIXED IND 470UH 160MA 6.8OHM SMD |
1,620 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 160 mA | 150mA | Unshielded | 6.8Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
.jpg "AIRD-06-182K")
|
AIRD-06-182KFIXED IND 1.8MH 800MA 1.39OHM TH |
819 | - |
|
Datasheet | AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 800 mA | 2.2A | Unshielded | 1.39Ohm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
IHLP6767GZERR47M5AFIXED IND 470NH 65A 0.95MOHM SMD |
560 | - |
|
Datasheet | IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 65 A | 76A | Shielded | 0.95mOhm Max | - | 52.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
1025-52KFIXED IND 22UH 144MA 3.3 OHM TH |
5,383 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
