Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4320.223NLTFIXED IND 22UH 5.6A 30 MOHM SMD |
1,490 | - |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.6 A | 6.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
78477047FIXED IND 4.7UH 6A 20 MOHM SMD |
1,222 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6 A | 11A | Shielded | 20mOhm Max | - | 58.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770220FIXED IND 22UH 4A 44.5 MOHM SMD |
1,159 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4 A | 4.7A | Shielded | 44.5mOhm Max | - | 15.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770331FIXED IND 330UH 1A 468 MOHM SMD |
224 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 1 A | 1.2A | Shielded | 468mOhm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
74454068FIXED IND 7UH 2.2A 0.055OHM SMD |
211 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 7 µH | ±20% | 2.2 A | 4.1A | Shielded | 55mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
744393440056FIXED IND 560NH 16A 2.9MOHM SMD |
160 | - |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 16 A | 30.5A | Shielded | 2.9mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|

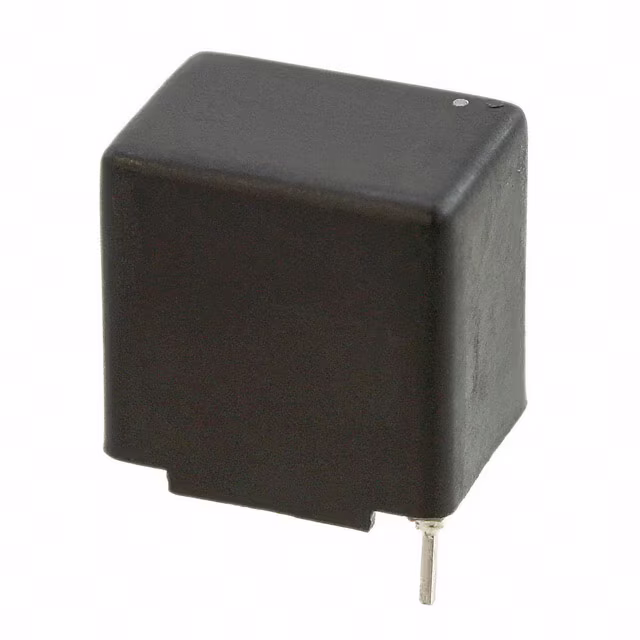

PE-52646NLFIXED IND 220UH 1.5A 420 MOHM TH |
1,283 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
MPL-AY1265-220FIXED IND 22UH 7A 31.4 MOHM SMD |
723 | - |
|
Datasheet | MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 22 µH | - | 7 A | 9A | Unshielded | 31.4mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
VLBU10060120T-R09L-1FIXED IND 90NH 83A 0.12 MOHM SMD |
600 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±15% | 83 A | 140A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
7445530FIXED IND 1MH 70MA 13.8 OHM SMD |
103 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

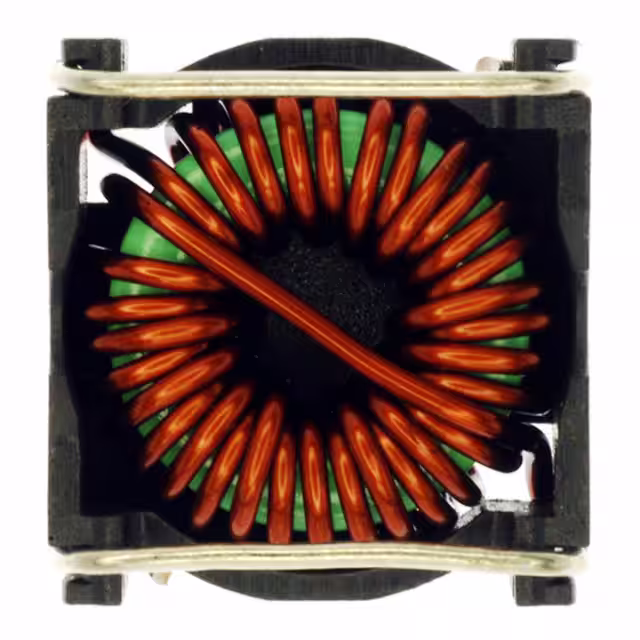

P0846SNLFIXED IND 14.8UH 5A 27 MOHM SMD |
822 | - |
|
Datasheet | LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
7443552100FIXED IND 1UH 16A 3.3 MOHM SMD |
2,610 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 16 A | 20A | Shielded | 3.3mOhm | - | 80MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
744355215FIXED IND 150NH 25A 0.58MOHM SMD |
2,167 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±20% | 25 A | 60A | Shielded | 0.58mOhm | - | 275MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7443552280FIXED IND 2.8UH 9.5A 10.6MOHM SM |
618 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 9.5 A | 11A | Shielded | 10.6mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
744355256FIXED IND 560NH 20A 1.61MOHM SMD |
559 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 20 A | 30A | Shielded | 1.61mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7843330390FIXED IND 3.9UH 11.2A 8.7MOHM SM |
437 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 11.2 A | 17.8A | Shielded | 8.7mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433490056WE-CHSA PERFORMANCE SMD HIGH CUR |
340 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 560 nH | ±20% | 15.6 A | 40.5A | Shielded | 4.1mOhm Max | - | 184MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
VLBU10060120T-R15L-1FIXED IND 150NH 83A 0.12MOHM SMD |
195 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 82A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
B82477R4333M100FIXED IND 33UH 3.55A 50 MOHM SMD |
3,364 | - |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.55 A | 5.2A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
AIUR-15-102KFIXED IND 1MH 1A 710 MOHM TH |
1,443 | - |
|
Datasheet | AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | - | Unshielded | 710mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
