Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

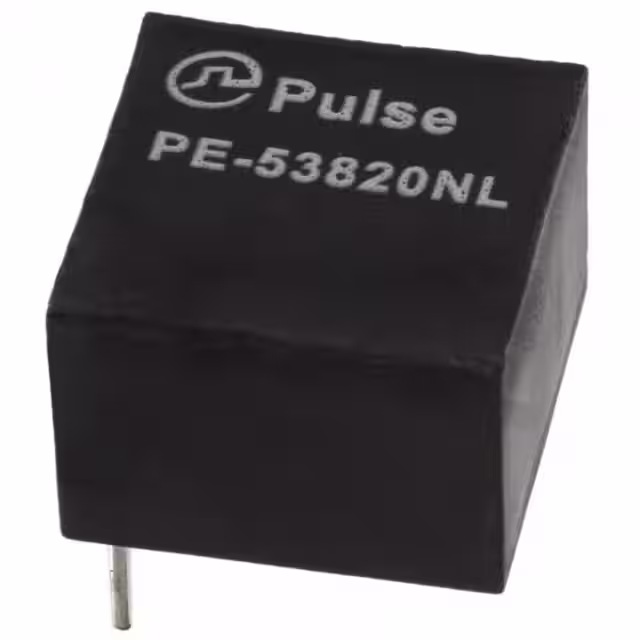

PE-53820NLFIXED IND 115UH 670MA 400MOHM TH |
921 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
74459147FIXED IND 47UH 2.8A 0.097OHM SMD |
511 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±20% | 2.8 A | 4A | Shielded | 97mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
DRA124-4R7-RFIXED IND 4.7UH 5.47A 14MOHM SMD |
747 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.47 A | 9.06A | Shielded | 14mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

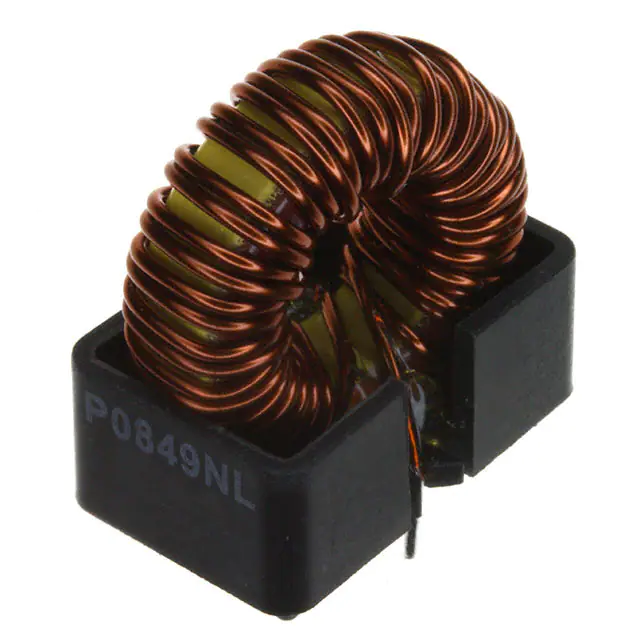

P0849NLFIXED IND 33UH 5A 47 MOHM TH |
1,080 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 47mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|
IHA203EBFIXED IND 100UH 2.7A 120 MOHM TH |
127 | - |
|
Datasheet | IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.7 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 0.920" L (12.70mm x 23.37mm) | - |
|

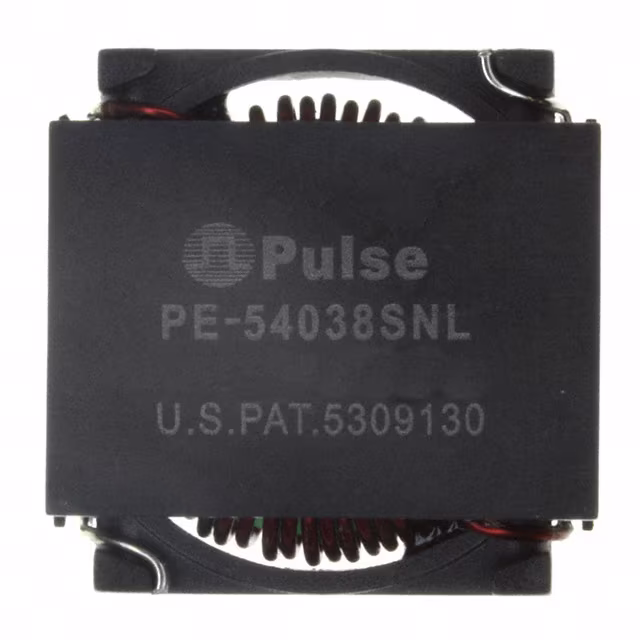

PE-54038SNLTFIXED IND 77UH 2.7A 90 MOHM SMD |
2,115 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

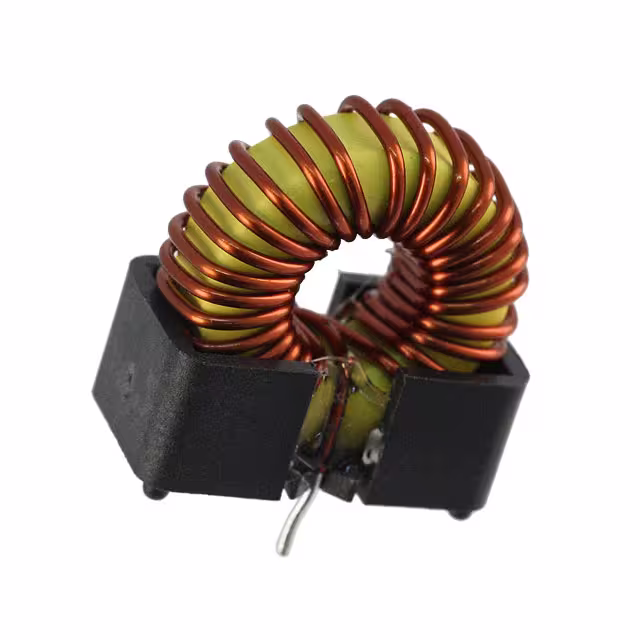

PE-92111KNLFIXED IND 40UH 4A 27 MOHM TH |
744 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
RC-10FIXED IND 100UH 2A 98 MOHM TH |
166 | - |
|
Datasheet | RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | - | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
2206-H-RCFIXED IND 27UH 9.8A 11 MOHM TH |
1,407 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
.jpg "AIRD-06-102K")
|
AIRD-06-102KFIXED IND 1MH 1A 818 MOHM TH |
886 | - |
|
Datasheet | AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | 3.1A | Unshielded | 818mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
2214-H-RCFIXED IND 150UH 3.1A 110 MOHM TH |
187 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 3.1 A | - | Shielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2207-H-RCFIXED IND 33UH 7.4A 20 MOHM TH |
183 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2210-H-RCFIXED IND 56UH 6.4A 26 MOHM TH |
107 | - |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 6.4 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
WTX0420T3R3MTR01FIXED IND 3.320%UH 0.026OHM 5400 |
1,850 | - |
|
Datasheet | WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.6 A | 4.7A | Unshielded | 28.6mOhm Max | - | 18MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
WTX0420TR47MTR01FIXED IND 0.4720%UH 0.005OHM 115 |
1,746 | - |
|
Datasheet | WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 17 A | 11.2A | Unshielded | 4.5mOhm Max | - | 61MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
HCMA1707-6R8-RFIXED IND 6.8UH 20A 7.55MOHM SMD |
1,643 | - |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 20 A | 22A | Shielded | 7.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-150-RFIXED IND 15UH 12A 15.5 MOHM SMD |
995 | - |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 12 A | 13A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-470-RFIXED IND 47UH 6.8A 47 MOHM SMD |
882 | - |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±20% | 6.8 A | 7.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-100-RFIXED IND 10UH 14A 10 MOHM SMD |
633 | - |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 14 A | 18A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-680-RFIXED IND 68UH 5.2A 85 MOHM SMD |
320 | - |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±20% | 5.2 A | 6.5A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
