Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

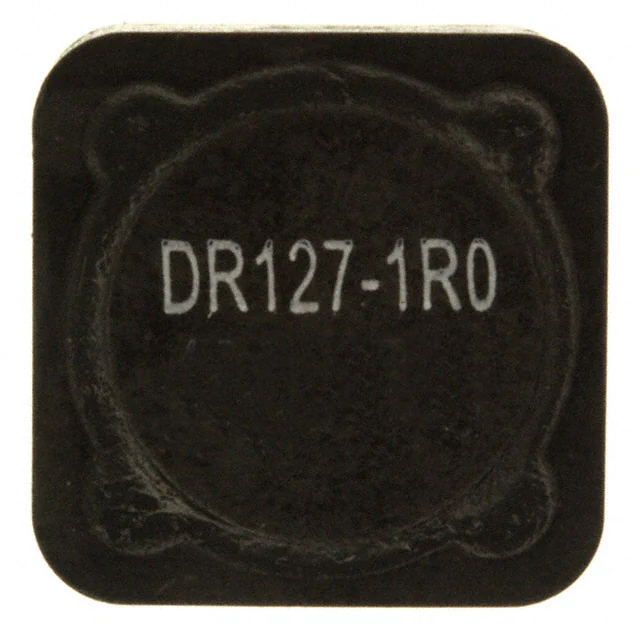

DR127-1R0-RFIXED IND 1UH 15.5A 3.13MOHM SMD |
549 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 15.5 A | 40A | Shielded | 3.13mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DR125-2R2-RFIXED IND 2.2UH 10.9A 4.5MOHM SM |
1,435 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10.9 A | 15A | Shielded | 4.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
MPIA4015V2-3R3-RFIXED IND 3.3UH 3A 92 MOHM SMD |
10,750 | - |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 3 A | 3.2A | Shielded | 92mOhm Max | - | 31MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
FP1008-120-RFIXED IND 120NH 63A 0.17MOHM SMD |
16,198 | - |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 63 A | - | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
EXL1V0606-8R2-RFIXED IND 8.2UH 8A 24.8MOHM SMD |
658 | - |
|
Datasheet | EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 8 A | 8A | Shielded | 24.8mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|

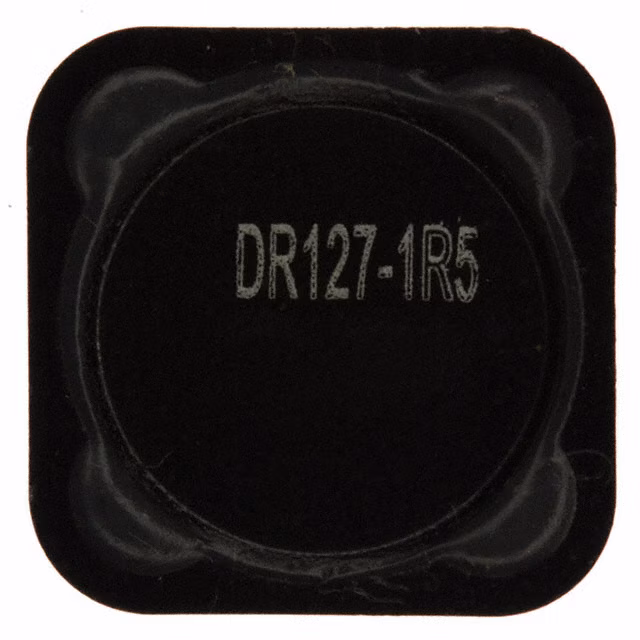

DR127-1R5-RFIXED IND 1.5UH 13.5A 3.41 MOHM |
1,063 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13.5 A | 31.1A | Shielded | 3.41mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SD20-470-RFIXED IND 47UH 745MA 465MOHM SMD |
20,528 | - |
|
Datasheet | SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 745 mA | 406mA | Shielded | 465mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
EXLA1V0606-8R2-RIND MOLDED SHLD 8.2UH 8.0A |
120 | - |
|
Datasheet | EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 8 A | 8A | Shielded | 24.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
HCM1A0503V2-R20-RFIXED IND 200NH 20.5A 2 MOHM SMD |
4,513 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 200 nH | ±20% | 20.5 A | 20A | Shielded | 2mOhm Max | - | 160MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
DRA73-4R7-RFIXED IND 4.7UH 2.92A 33MOHM SMD |
4,053 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.92 A | 3.52A | Shielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
