Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP3232DZERR68M11FIXED IND 680NH 22.2A 3.22 MOHM |
699 | - |
|
Datasheet | IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 22.2 A | 14.5A | Shielded | 3.22mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
RL895-472K-RCFIXED IND 4.7MH 130MA 7.89OHM TH |
586 | - |
|
Datasheet | RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 130 mA | - | Unshielded | 7.89Ohm Max | 45 @ 252kHz | 600kHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
1.2mm.jpg "744383240068")
|
744383240068FIXED IND 680NH 3.2A 59 MOHM SMD |
3,508 | - |
|
Datasheet | WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 3.2 A | 5.85A | Shielded | 59mOhm Max | - | 102MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74438324082FIXED IND 8.2UH 800MA 720MOHM SM |
2,896 | - |
|
Datasheet | WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 800 mA | 1.5A | Shielded | 720mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg "744383430056")
|
744383430056FIXED IND 560NH 2.1A 73 MOHM SMD |
2,879 | - |
|
Datasheet | WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±30% | 2.1 A | 5A | Shielded | 73mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SRP1038A-R27MFIXED IND 270NH 33A 1 MOHM SMD |
1,945 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 270 nH | ±20% | 33 A | 60A | Shielded | 1mOhm Max | 10 @ 100kHz | 120MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPI-1306S-102M-TFIXED IND 1MH 530MA 2.01 OHM SMD |
1,512 | - |
|
Datasheet | ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2.01Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
5800-822-RCFIXED IND 8.2MH 86MA 19.7 OHM TH |
840 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 86 mA | 130mA | Unshielded | 19.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
SRP1038A-R45MFIXED IND 450NH 29A 1.5 MOHM SMD |
810 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 450 nH | ±20% | 29 A | 45A | Shielded | 1.5mOhm Max | 15 @ 100kHz | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
5800-332-RCFIXED IND 3.3MH 130MA 8.8 OHM TH |
779 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 130 mA | 200mA | Unshielded | 8.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-392-RCFIXED IND 3.9MH 120MA 9.7 OHM TH |
705 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 120 mA | 180mA | Unshielded | 9.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-150-RCFIXED IND 15UH 1.9A 39 MOHM TH |
546 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.9 A | 3A | Unshielded | 39mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-562-RCFIXED IND 5.6MH 100MA 13.8OHM TH |
467 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 100 mA | 150mA | Unshielded | 13.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-153-RCFIXED IND 15MH 61MA 37.5 OHM TH |
351 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 61 mA | 90mA | Unshielded | 37.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|

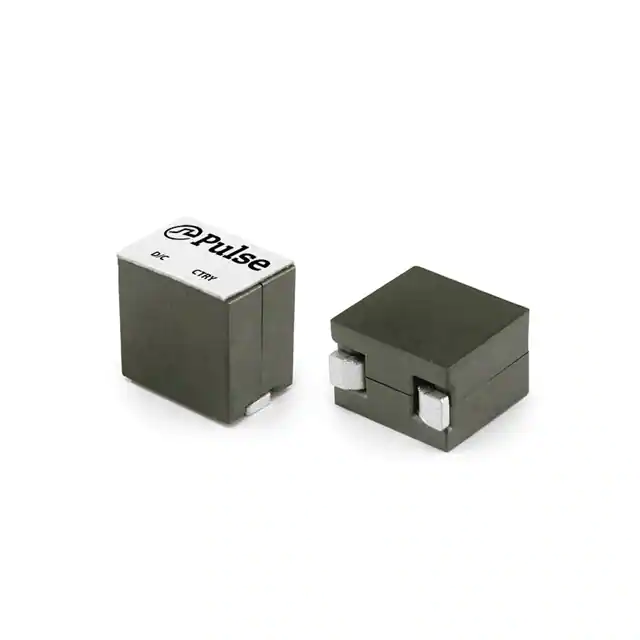

PG1712.121HLTFIXED IND 120NH 65A 0.17MOHM SMD |
338 | - |
|
Datasheet | PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 65 A | 97A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
PG1712.151HLTFIXED IND 150NH 65A 0.17MOHM SMD |
204 | - |
|
Datasheet | PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 65 A | 75A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
5800-270-RCFIXED IND 27UH 1.5A 66 MOHM TH |
201 | - |
|
Datasheet | 5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.5 A | 2.2A | Unshielded | 66mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
PG1712.101HLTFIXED IND 100NH 65A 0.17MOHM SMD |
159 | - |
|
Datasheet | PG1712 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±10% | 65 A | 112A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
IHLE2020CDER4R7M51IHLE-2020CD-51 4.7 20% ER E3 |
5,997 | - |
|
Datasheet | IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 78.3mOhm Max | - | 23.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
MPXV1D0650L2R2FIXED IND 2.2UH 11.2A 11.6 MOHM |
2,390 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 11.2 A | 10A | Shielded | 11.6mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
