Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744043180FIXED IND 18UH 980MA 160MOHM SMD |
759 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 980 mA | 700mA | Shielded | 160mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
74404200056FIXED IND 560NH 3.1A 25 MOHM SMD |
724 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±35% | 3.1 A | 3A | Shielded | 25mOhm Max | - | 190MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
7440420018FIXED IND 1.8UH 2.35A 58MOHM SMD |
700 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.35 A | 2.4A | Shielded | 58mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
744042680FIXED IND 68UH 500MA 860MOHM SMD |
566 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 500 mA | 380mA | Shielded | 860mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744052220FIXED IND 22UH 800MA 280MOHM SMD |
543 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 800 mA | 900mA | Shielded | 280mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
744052470FIXED IND 47UH 770MA 550MOHM SMD |
505 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 770 mA | 700mA | Shielded | 550mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|

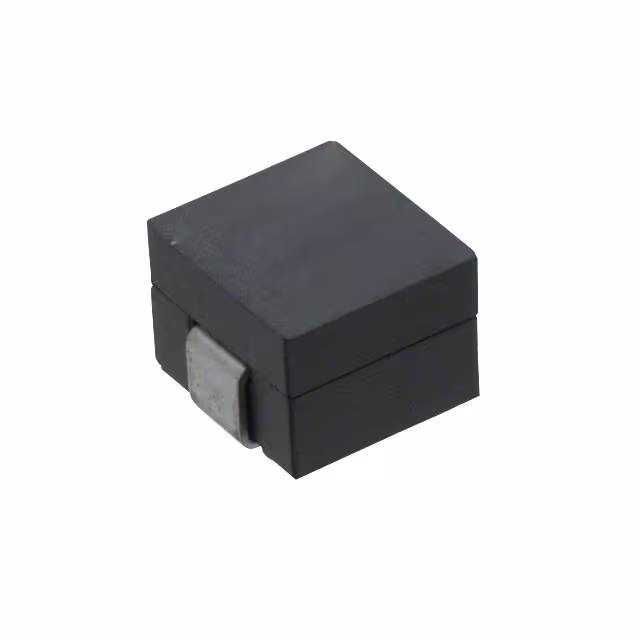

PA1512.700NLTFIXED IND 72NH 31A 0.27 MOHM SMD |
480 | - |
|
Datasheet | PA1512 | Nonstandard | Tape & Reel (TR) | Active | - | - | 72 nH | ±20% | 31 A | 50A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
7447790221FIXED IND 220UH 600MA 800MOHM TH |
456 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 500mA | Unshielded | 800mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7440520012FIXED IND 1.2UH 3A 30 MOHM SMD |
320 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3 A | 3.5A | Shielded | 30mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
744043005FIXED IND 5.6UH 1.38A 85MOHM SMD |
293 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.38 A | 1.3A | Shielded | 85mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744052180FIXED IND 18UH 900MA 210MOHM SMD |
290 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 900 mA | 1A | Shielded | 210mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
744071102FIXED IND 1MH 230MA 3.5 OHM SMD |
270 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±30% | 230 mA | 340mA | Shielded | 3.5Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
744741471FIXED IND 470UH 440MA 3 OHM TH |
200 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 440 mA | 400mA | Unshielded | 3Ohm Max | - | 3.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
744779100FIXED IND 10UH 1.85A 50 MOHM TH |
141 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.85 A | 2.1A | Unshielded | 50mOhm Max | - | 27.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447412681FIXED IND 680UH 330MA 4 OHM TH |
133 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 330 mA | 350mA | Unshielded | 4Ohm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
|
744043008FIXED IND 8.2UH 1.25A 100MOHM SM |
123 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.25 A | 1.05A | Shielded | 100mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
7440520018FIXED IND 1.8UH 2.6A 35 MOHM SMD |
111 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.6 A | 3A | Shielded | 35mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
IHLE2020CDER1R0M5AIHLE-2020CD-5A 1 20% ER E3 |
3,999 | - |
|
Datasheet | IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 9.8 A | 10.3A | Shielded | 12.1mOhm Max | - | 66MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
MPXV1D0840L2R2FIXED IND 2.2UH 14.3A 8.7MOHM SM |
3,746 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 14.3 A | 17A | Shielded | 8.7mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
HCM1A0703V2-150-RFIXED IND 15UH 2.6A 110 MOHM SMD |
2,695 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 2.6 A | 3.6A | Shielded | 110mOhm Max | - | 9.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
