IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT100DU170TGIGBT MODULE 1700V 150A 560W SP4 |
3,859 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

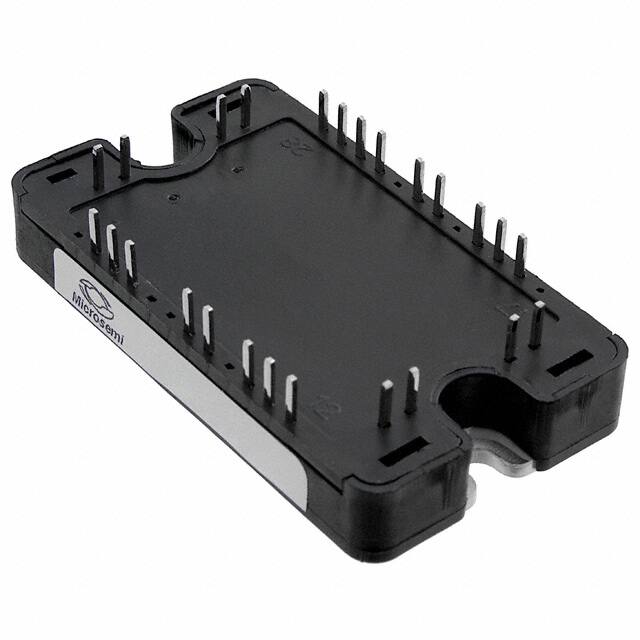

APTGT100A170TGIGBT MODULE 1700V 150A 560W SP4 |
8,069 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

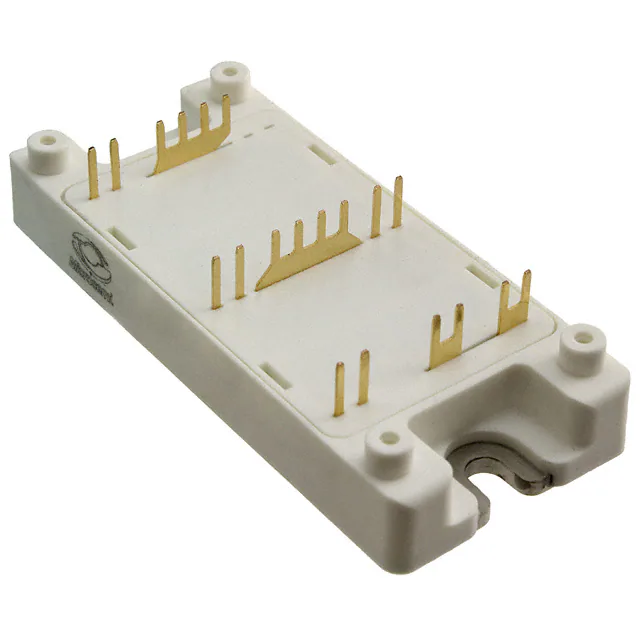

APTGT300A60TGIGBT MODULE 600V 430A 935W SP4 |
3,633 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 430 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
APTGT150DU120TGIGBT MODULE 1200V 220A 690W SP4 |
2,432 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT150A120TGIGBT MODULE 1200V 220A 690W SP4 |
2,954 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 220 A | 690 W | 2.1V @ 15V, 150A | 250 µA | 10.7 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGT300DA60GIGBT MODULE 600V 430A 1150W SP6 |
9,237 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT300SK60GIGBT MODULE 600V 430A 1150W SP6 |
3,243 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT150H60TGIGBT MODULE 600V 225A 480W SP4 |
2,479 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT75TDU60PGIGBT MODULE 600V 100A 250W SP6P |
8,000 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6-P |
|

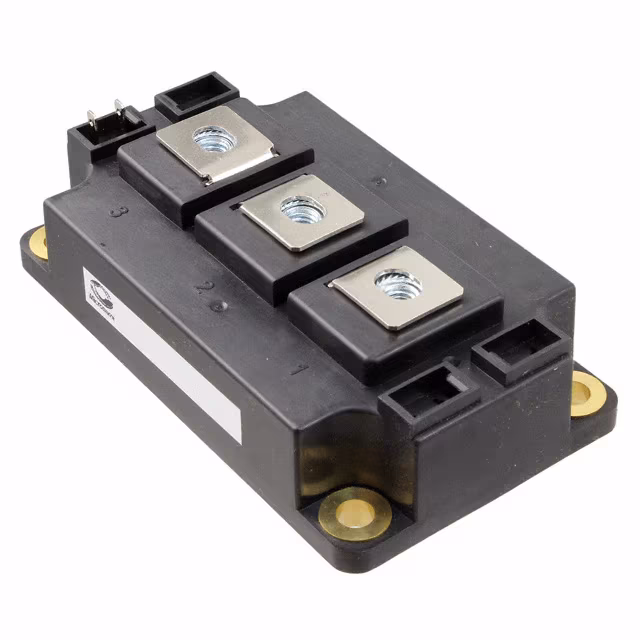

APTGT400DA60D3GIGBT MODULE 600V 500A 1250W D3 |
6,561 | - |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Single | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
