IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

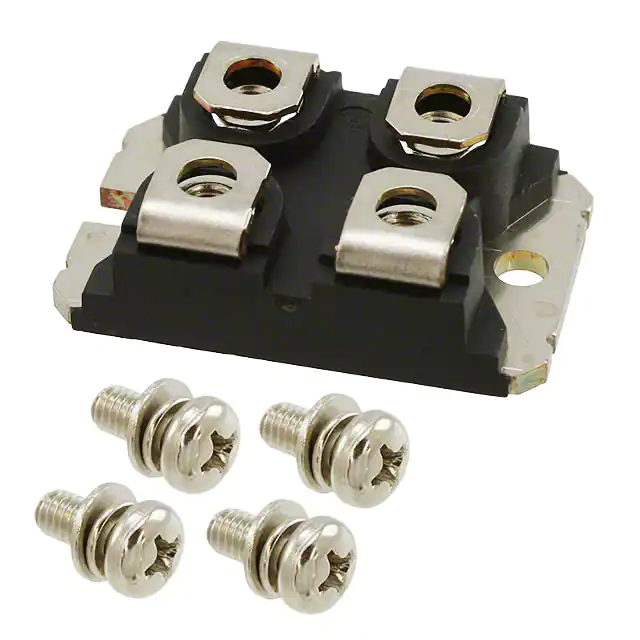

VS-GT175DA120UIGBT MOD 1200V 288A 1087W SOT227 |
5,501 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 1200 V | 288 A | 1087 W | 2.1V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-GT400TH120NIGBT MOD 1200V 600A INT-A-PAK |
8,411 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 8) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 600 A | 2119 W | 2.15V @ 15V, 400A | 5 mA | 28.8 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GT400TH60NIGBT MOD 600V 530A INT-A-PAK |
7,555 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 600 V | 530 A | 1600 W | 2.05V @ 15V, 400A | 5 mA | 30.8 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GT50TP120NIGBT MOD 1200V 100A INT-A-PAK |
2,541 | - |
|
Datasheet | - | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 100 A | 405 W | 2.35V @ 15V, 50A | 5 mA | 6.24 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT50TP60NIGBT MOD 600V 85A 208W INT-A-PAK |
4,039 | - |
|
Datasheet | - | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 600 V | 85 A | 208 W | 2.1V @ 15V, 50A | 1 mA | 3.03 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-100MT060WDFIGBT MODULE 600V 121A 462W MTP |
2,573 | - |
|
Datasheet | - | 16-MTP Module | Tray | Obsolete | - | - | 600 V | 121 A | 462 W | 2.29V @ 15V, 60A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFAPBFIGBT MODULE 1200V 20A 240W MTP |
6,748 | - |
|
Datasheet | - | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 20 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFPIGBT MODULE 1200V 40A 240W MTP |
8,024 | - |
|
Datasheet | - | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-25MT060WFAPBFIGBT MODULE 600V 69A 195W MTP |
9,873 | - |
|
Datasheet | - | 16-MTP Module | Tray | Obsolete | - | Full Bridge Inverter | 600 V | 69 A | 195 W | 3.25V @ 15V, 50A | 250 µA | 5.42 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-40MT120UHAPBFIGBT MODULE 1200V 80A 463W MTP |
7,296 | - |
|
Datasheet | - | 12-MTP Module | Tube | Obsolete | NPT | Half Bridge | 1200 V | 80 A | 463 W | 4.91V @ 15V, 80A | 250 µA | 8.28 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
