IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-CPV362M4UPBFIGBT MODULE 600V 7.2A 23W IMS-2 |
4,719 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 7.2 A | 23 W | 2.2V @ 15V, 3.9A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4FPBFIGBT MODULE 600V 3PHASE IMS-2 |
5,179 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV363M4KPBFIGBT MODULE 600V 11A 36W IMS-2 |
9,738 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 11 A | 36 W | 2.1V @ 15V, 6A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4FPBFIGBT MODULE 600V 27A 63W IMS-2 |
7,152 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 27 A | 63 W | 1.5V @ 15V, 15A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV364M4UPBFIGBT MODULE 600V 20A 63W IMS-2 |
4,550 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 20 A | 63 W | 2.1V @ 15V, 10A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
9,271 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
9,087 | - |
|
Datasheet | - | EMIPAK2 | Bulk | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK2 |
|

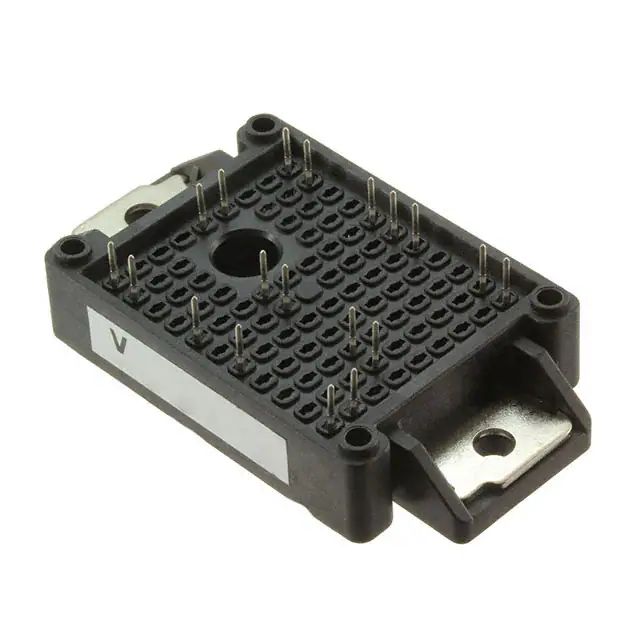

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
7,623 | - |
|
Datasheet | - | EMIPAK-1B | Bulk | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-1B |
|
VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
8,855 | - |
|
Datasheet | - | EMIPAK-2B | Bulk | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
3,404 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
