IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT400LH060NMODULES IGBT - DIAP IGBT |
6,907 | - |
|
Datasheet | FRED Pt® | Module | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 492 A | 1363 W | 2V @ 15V, 400A | 20 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-ETY020P120FIGBT MOD OUTPUT & SW EMIPAK 2B |
8,490 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

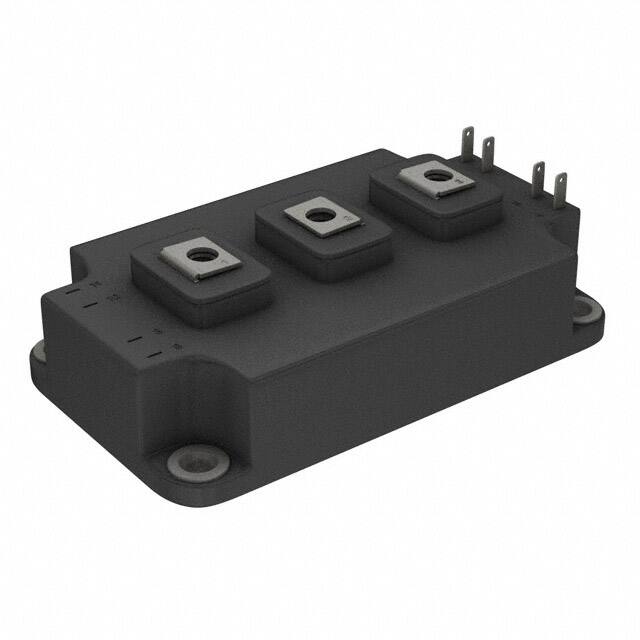

GA400TD25SIGBT MOD 250V 400A INT-A-PAK |
2,308 | - |
|
Datasheet | - | Dual INT-A-PAK (3 + 8) | Tube | Obsolete | - | Half Bridge | 250 V | 400 A | 1350 W | 1.6V @ 15V, 400A | 500 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
|
VS-GT300YH120NIGBT MOD 1200V 341A INT-A-PAK |
7,695 | - |
|
Datasheet | - | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 1200 V | 341 A | 1042 W | 2.17V @ 15V, 300A (Typ) | 300 µA | 36 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|

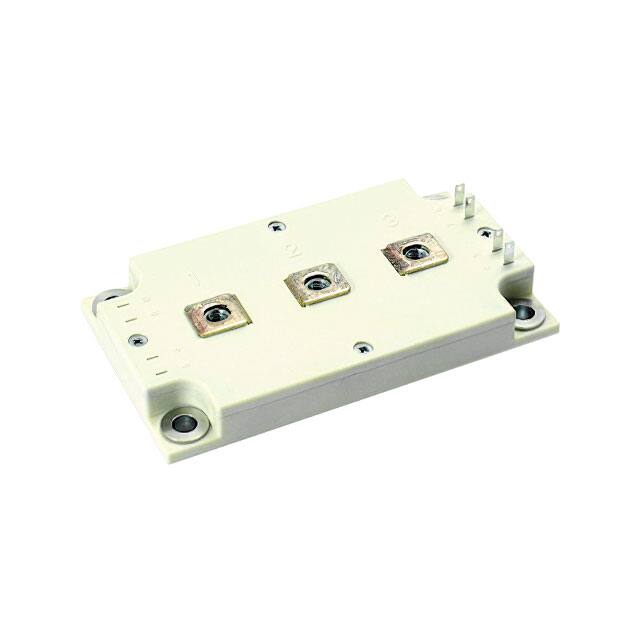

VS-GT300TD60SIGBT MOD 600V 580A INT-A-PAK |
2,554 | - |
|
Datasheet | FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 466 A | 882 W | 1.47V @ 15V, 300A | 200 µA | 24.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT400TD60SIGBT MOD 600V 758A INT-A-PAK |
6,091 | - |
|
Datasheet | FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 711 A | 1364 W | 1.4V @ 15V, 400A | 300 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT300FD060NIGBT MOD 600V 379A INT-A-PAK |
5,382 | - |
|
Datasheet | - | Dual INT-A-PAK (4 + 8) | Bulk | Obsolete | Trench Field Stop | Three Level Inverter | 600 V | 379 A | 1250 W | 2.5V @ 15V, 300A | 250 µA | 23.3 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Dual INT-A-PAK |
|
CPV362M4FIGBT MODULE 600V 8.8A 23W IMS-2 |
6,358 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 8.8 A | 23 W | 1.66V @ 15V, 8.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV362M4KIGBT MODULE 600V 5.7A 23W IMS-2 |
3,548 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 5.7 A | 23 W | 1.93V @ 15V, 3A | 250 µA | 450 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
|
|
CPV362M4UIGBT MODULE 600V 7.2A 23W IMS-2 |
4,668 | - |
|
Datasheet | - | 19-SIP (13 Leads), IMS-2 | Bulk | Active | - | Three Phase Inverter | 600 V | 7.2 A | 23 W | 1.95V @ 15V, 7.2A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
