Single IGBTs

Browse available Single IGBTs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Power - Max	Switching Energy	Input Type	Gate Charge	Td (on/off) @ 25°C	Test Condition	Reverse Recovery Time (trr)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
STGD3NB60SDT4 IGBT 600V 6A DPAK STMicroelectronics	3,747	-	RFQ	Datasheet	PowerMESH™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	-	600 V	6 A	25 A	1.5V @ 15V, 3A	48 W	1.15mJ (off)	Standard	18 nC	125µs/-	480V, 3A, 1kOhm, 15V	1.7 µs	175°C (TJ)	-	-	Surface Mount	DPAK
HGTD1N120BNS9A IGBT NPT 1200V 5.3A TO252AA onsemi	10,045	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	NPT	1200 V	5.3 A	6 A	2.9V @ 15V, 1A	60 W	70µJ (on), 90µJ (off)	Standard	14 nC	15ns/67ns	960V, 1A, 82Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-252AA
STGF7NB60SL IGBT 600V 15A 25W TO220FP STMicroelectronics	264	-	RFQ	Datasheet	PowerMESH™	TO-220-3 Full Pack	Tube	Active	-	600 V	15 A	20 A	1.6V @ 4.5V, 7A	25 W	4.1mJ (off)	Standard	16 nC	1.1µs/5.2µs	480V, 7A, 1kOhm, 5V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-220FP

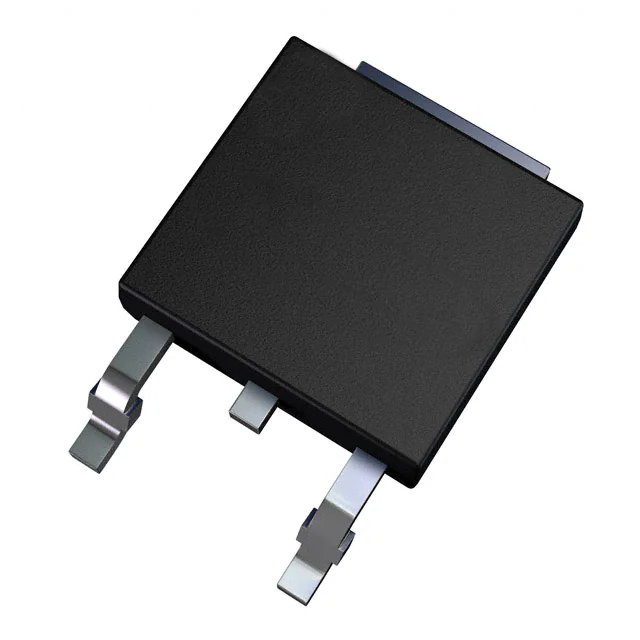

FGD5T120SH IGBT 1200V 5A FS3 DPAK onsemi	5,148	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	Trench Field Stop	1200 V	10 A	12.5 A	3.6V @ 15V, 5A	69 W	247µJ (on), 94µJ (off)	Standard	6.7 nC	4.8ns/24.8ns	600V, 5A, 30Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-252AA
STGB3NC120HDT4 IGBT 1200V 14A 75W D2PAK STMicroelectronics	1,877	-	RFQ	Datasheet	PowerMESH™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	-	1200 V	14 A	20 A	2.8V @ 15V, 3A	75 W	236µJ (on), 290µJ (off)	Standard	24 nC	15ns/118ns	800V, 3A, 10Ohm, 15V	51 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
IKP20N60TXKSA1 IGBT TRENCH FS 600V 40A TO220-3 Infineon Technologies	1,540	-	RFQ	Datasheet	TrenchStop®	TO-220-3	Tube	Active	Trench Field Stop	600 V	40 A	60 A	2.05V @ 15V, 20A	166 W	770µJ	Standard	120 nC	18ns/199ns	400V, 20A, 12Ohm, 15V	41 ns	-40°C ~ 175°C (TJ)	-	-	Through Hole	PG-TO220-3-1
STGW30H60DFB IGBT TRENCH FS 600V 60A TO247 STMicroelectronics	1,134	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	Trench Field Stop	600 V	60 A	120 A	2V @ 15V, 30A	260 W	383µJ (on), 293µJ (off)	Standard	149 nC	37ns/146ns	400V, 30A, 10Ohm, 15V	53 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247
STGB30M65DF2 IGBT TRENCH FS 650V 60A TO263 STMicroelectronics	624	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	Trench Field Stop	650 V	60 A	120 A	2V @ 15V, 30A	258 W	300µJ (on), 960µJ (off)	Standard	80 nC	31.6ns/115ns	400V, 30A, 10Ohm, 15V	140 ns	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
IKB20N60TATMA1 IGBT TRENCH FS 600V 40A TO263-3 Infineon Technologies	8,089	-	RFQ	Datasheet	TrenchStop®	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	Trench Field Stop	600 V	40 A	60 A	2.05V @ 15V, 20A	166 W	770µJ	Standard	120 nC	18ns/199ns	400V, 20A, 12Ohm, 15V	41 ns	-40°C ~ 175°C (TJ)	-	-	Surface Mount	PG-TO263-3-2
STGB30V60DF IGBT TRENCH FS 600V 60A D2PAK STMicroelectronics	2,236	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	Trench Field Stop	600 V	60 A	120 A	2.3V @ 15V, 30A	258 W	383µJ (on), 233µJ (off)	Standard	163 nC	45ns/189ns	400V, 30A, 10Ohm, 15V	53 ns	-55°C ~ 175°C (TJ)	-	-	Surface Mount	D2PAK
IKW30N60DTPXKSA1 IGBT TRENCH FS 600V 53A TO247-3 Infineon Technologies	2,475	-	RFQ	Datasheet	TrenchStop™	TO-247-3	Tube	Not For New Designs	Trench Field Stop	600 V	53 A	90 A	1.8V @ 15V, 30A	200 W	710µJ (on), 420µJ (off)	Standard	130 nC	15ns/179ns	400V, 30A, 10.5Ohm, 15V	76 ns	-40°C ~ 175°C (TJ)	-	-	Through Hole	PG-TO247-3
ISL9V3040P3 IGBT 430V 21A TO220-3 onsemi	977	-	RFQ	Datasheet	EcoSPARK®	TO-220-3	Tube	Active	-	430 V	21 A	-	1.6V @ 4V, 6A	150 W	-	Logic	17 nC	-/4.8µs	300V, 1kOhm, 5V	-	-40°C ~ 175°C (TJ)	-	-	Through Hole	TO-220-3
ISL9V5045S3ST-F085C ECOSPARK1 IGN-IGBT TO263 onsemi	1,085	-	RFQ	Datasheet	EcoSPARK®	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	-	480 V	51 A	-	1.6V @ 4V, 10A	300 W	-	Logic	32 nC	-/10.8µs	-	-	-40°C ~ 175°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
IHW40N120R5XKSA1 IGBT TRENCH FS 1200V 80A TO247-3 Infineon Technologies	560	-	RFQ	Datasheet	TrenchStop™	TO-247-3	Tube	Active	Trench Field Stop	1200 V	80 A	120 A	1.85V @ 15V, 40A	394 W	1.6mJ (off)	Standard	310 nC	-/420ns	600V, 40A, 10Ohm, 15V	-	-40°C ~ 175°C (TJ)	-	-	Through Hole	PG-TO247-3
ISL9V5036P3-F085 IGBT 390V 46A TO220-3 onsemi	3,638	-	RFQ	Datasheet	EcoSPARK®	TO-220-3	Tube	Active	-	390 V	46 A	-	1.6V @ 4V, 10A	250 W	-	Logic	32 nC	-/10.8µs	300V, 1kOhm, 5V	-	-40°C ~ 175°C (TJ)	Automotive	AEC-Q101	Through Hole	TO-220-3
FGH40N60SMD IGBT FIELD STOP 600V 80A TO247-3 onsemi	1,060	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	Field Stop	600 V	80 A	120 A	2.5V @ 15V, 40A	349 W	870µJ (on), 260µJ (off)	Standard	119 nC	12ns/92ns	400V, 40A, 6Ohm, 15V	36 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-247-3
IHW30N160R5XKSA1 IGBT 1600V 60A TO247-3 Infineon Technologies	5,859	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	-	1600 V	60 A	90 A	2.15V @ 15V, 30A	263 W	-, 350µJ (off)	Standard	205 nC	-/290ns	600V, 30A, 10Ohm, 15V	-	-40°C ~ 175°C (TJ)	-	-	Through Hole	PG-TO247-3
ISL9V5036S3ST IGBT 390V 46A 250W TO263AB onsemi	2,969	-	RFQ	Datasheet	EcoSPARK®	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	-	390 V	46 A	-	1.6V @ 4V, 10A	250 W	-	Logic	32 nC	-/10.8µs	300V, 1kOhm, 5V	-	-40°C ~ 175°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
ISL9V5045S3ST-F085 IGBT 480V 51A 300W D2PAK onsemi	3,173	-	RFQ	Datasheet	EcoSPARK®	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	-	480 V	51 A	-	1.6V @ 4V, 10A	300 W	-	Logic	32 nC	-/10.8µs	300V, 1kOhm, 5V	-	-40°C ~ 175°C (TJ)	Automotive	AEC-Q101	Surface Mount	TO-263 (D2PAK)
IXGA48N60A3-TRL IXGA48N60A3 TRL IXYS	1,749	-	RFQ	Datasheet	GenX3™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	PT	600 V	120 A	300 A	1.35V @ 15V, 32A	300 W	950µJ (on), 2.9mJ (off)	Standard	110 nC	25ns/334ns	480V, 32A, 5Ohm, 15V	30 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)

Single IGBTs FAQ

What Single IGBTs components can I source from EGOO?

You can browse available Single IGBTs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Single IGBTs parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
