Single IGBTs
Browse available Single IGBTs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXYX110N120A4IGBT 1200V 110A GNX4 XPT PLUS247 |
3,036 | - |
|
Datasheet | XPT™, GenX4™ | TO-247-3 | Tube | Active | PT | 1200 V | 375 A | 900 A | 1.8V @ 15V, 110A | 1360 W | 2.5mJ (on), 8.4mJ (off) | Standard | 305 nC | 42ns/550ns | 600V, 50A, 1.5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXG100IF1200HFIGBT PT 1200V 140A PLUS247-3 |
8,030 | - |
|
Datasheet | X2PT™ | TO-247-3 Variant | Tube | Active | PT | 1200 V | 140 A | - | - | - | - | Standard | - | - | - | - | - | - | - | Through Hole | PLUS247™-3 |
|
IXGR60N60C3C1IGBT 600V 75A 170W ISOPLUS247 |
5,043 | - |
|
Datasheet | GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 75 A | 260 A | 2.5V @ 15V, 40A | 170 W | 830µJ (on), 450µJ (off) | Standard | 115 nC | 24ns/70ns | 480V, 40A, 3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
|
IPQ-5312-0-MRQFN251-TR-03-0IPQ-5312-0-MRQFN251-TR-03-0. |
7,126 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPQ-5312-0-MRQFN251-MT-03-0IPQ-5312-0-MRQFN251-MT-03-0. |
2,500 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APT40GP90B2DQ2GIGBT PT 900V 101A |
5,125 | - |
|
Datasheet | POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 900 V | 101 A | 160 A | 3.9V @ 15V, 40A | 543 W | 795µJ (off) | Standard | 145 nC | 14ns/90ns | 600V, 40A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|

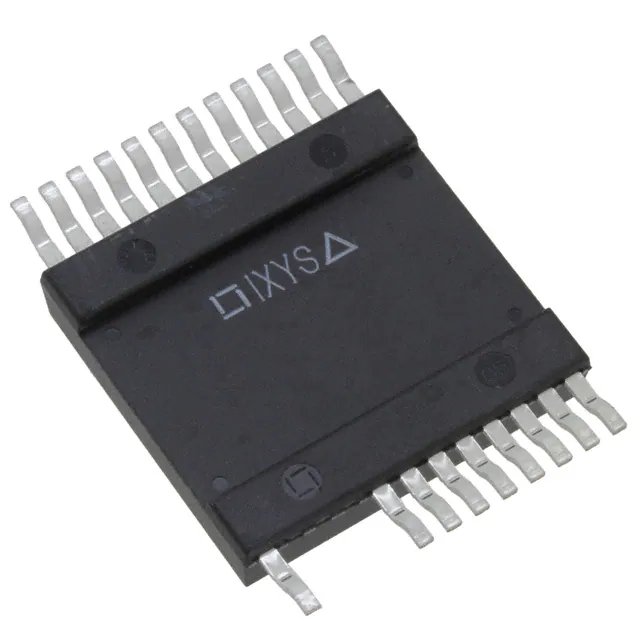

MMIX1X100N60B3H1IGBT 600V 145A 400W SMPD |
8,122 | - |
|
Datasheet | GenX3™, XPT™ | 24-PowerSMD, 21 Leads | Tube | Active | - | 600 V | 145 A | 440 A | 1.8V @ 15V, 70A | 400 W | 1.9mJ (on), 2mJ (off) | Standard | 143 nC | 30ns/120ns | 360V, 70A, 2Ohm, 15V | 140 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
APT50GT120LRDQ2GIGBT NPT 1200V 106A TO264 |
7,239 | - |
|
Datasheet | Thunderbolt IGBT® | TO-264-3, TO-264AA | Tube | Active | NPT | 1200 V | 106 A | 150 A | 3.7V @ 15V, 50A | 694 W | 2585µJ (on), 1910µJ (off) | Standard | 240 nC | 23ns/215ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 [L] |
|
|
IXXK300N60C3IGBT 600V 510A 2300W TO264 |
9,828 | - |
|
Datasheet | GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | PT | 600 V | 510 A | 1075 A | 2V @ 15V, 100A | 2300 W | 3.35mJ (on), 1.9mJ (off) | Standard | 438 nC | 50ns/160ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXXK) |
|
IXGK55N120A3H1IGBT 1200V 125A 460W TO264 |
9,423 | - |
|
Datasheet | GenX3™ | TO-264-3, TO-264AA | Tube | Active | PT | 1200 V | 125 A | 400 A | 2.3V @ 15V, 55A | 460 W | 5.1mJ (on), 13.3mJ (off) | Standard | 185 nC | 23ns/365ns | 960V, 55A, 3Ohm, 15V | 200 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXGK) |
|
|
IXGK50N120C3H1IGBT 1200V 95A 460W TO264 |
7,632 | - |
|
Datasheet | GenX3™ | TO-264-3, TO-264AA | Tube | Active | PT | 1200 V | 95 A | 240 A | 4.2V @ 15V, 40A | 460 W | 2mJ (on), 630µJ (off) | Standard | 196 nC | 31ns/123ns | 600V, 40A, 2Ohm, 15V | 75 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXGK) |
|
|
APT150GN60B2GIGBT TRENCH FIELD STOP 600V 220A |
7,893 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Active | Trench Field Stop | 600 V | 220 A | 450 A | 1.85V @ 15V, 150A | 536 W | 8.81mJ (on), 4.295mJ (off) | Standard | 970 nC | 44ns/430ns | 400V, 150A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | - |
.jpg "IXRH40N120")
|
IXRH40N120IGBT 1200V 55A 300W TO247AD |
6,568 | - |
|
Datasheet | - | TO-247-3 | Bulk | Obsolete | NPT | 1200 V | 55 A | - | 2.7V @ 15V, 30A | 300 W | 3mJ (on), 700µJ (off) | Standard | 90 nC | - | 600V, 35A, 15Ohm, 15V | 2.1 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXYN75N65C3D1IGBT 650V 150A SOT227B |
7,163 | - |
|
Datasheet | XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | 650 V | 150 A | 360 A | 2.3V @ 15V, 60A | 600 W | 2mJ (on), 950µJ (off) | Standard | 122 nC | 26ns/93ns | 400V, 60A, 3Ohm, 15V | 65 ns | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
.jpg "IXGR55N120A3H1")
|
IXGR55N120A3H1IGBT 1200V 70A 200W ISOPLUS247 |
6,109 | - |
|
Datasheet | GenX3™ | TO-247-3 | Tube | Active | PT | 1200 V | 70 A | 330 A | 2.35V @ 15V, 55A | 200 W | 5.1mJ (on), 13.3mJ (off) | Standard | 185 nC | 23ns/365ns | 960V, 55A, 3Ohm, 15V | 200 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
APT95GR65JDU60INSULATED GATE BIPOLAR TRANSISTO |
7,057 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | 650 V | 135 A | 380 A | 2.4V @ 15V, 95A | 446 W | - | Standard | 420 nC | 29ns/226ns | 433V, 95A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
|
APT50GF120B2RGIGBT NPT 1200V 135A |
6,959 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Active | NPT | 1200 V | 135 A | 150 A | 3V @ 15V, 50A | 781 W | 3.6mJ (on), 2.64mJ (off) | Standard | 340 nC | 25ns/260ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
.jpg "IXSX50N60AU1")
|
IXSX50N60AU1IGBT 600V 75A 300W PLUS247 |
3,625 | - |
|
Datasheet | - | TO-247-3 Variant | Tube | Obsolete | - | 600 V | 75 A | 200 A | 2.7V @ 15V, 50A | 300 W | 6mJ (off) | Standard | 190 nC | 70ns/200ns | 480V, 50A, 2.7Ohm, 15V | 50 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXXX300N60C3IGBT 600V 510A 2300W TO247 |
3,247 | - |
|
Datasheet | GenX3™, XPT™ | TO-247-3 Variant | Tube | Active | PT | 600 V | 510 A | 1075 A | 2V @ 15V, 100A | 2300 W | 3.35mJ (on), 1.9mJ (off) | Standard | 438 nC | 50ns/160ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXGT25N250IGBT 2500V TO-268 |
3,361 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | NPT | 2500 V | 60 A | - | 2.9V @ 15V, 25A | 250 W | - | Standard | - | - | - | - | - | - | - | Surface Mount | TO-268AA |
