Single IGBTs
Compare the current Single IGBTs IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFGHL50T65SQDAEC 101 QUALIFIED, 650V, 50A FIE |
255 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 200 A | 2.1V @ 15V, 50A | 268 W | 950µJ (on), 460µJ (off) | Standard | 102 nC | 20ns/81ns | 400V, 50A, 4.7Ohm, 15V | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
AFGHL75T65SQIGBT WITH SIC COPACK DIODE IGBT |
186 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 300 A | 2.1V @ 15V, 75A | 375 W | 1.86mJ (on), 1.13mJ (off) | Standard | 139 nC | 25ns/106ns | 400V, 75A, 4.7Ohm, 15V | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
AFGHL75T65SQDCIGBT TRENCH FS 650V 80A TO247-3 |
328 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 300 A | 2.1V @ 15V, 75A | 375 W | 1.68mJ (on), 1.11mJ (off) | Standard | 139 nC | 24ns/107.2ns | 400V, 75A, 4.7Ohm, 15V | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|

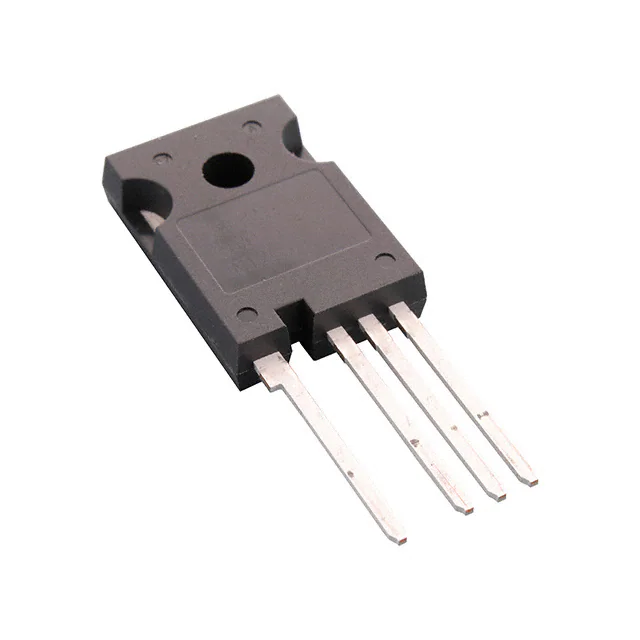

FGH40T120SQDNL4IGBT 1200V 40A UFS FOR SO |
251 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | Trench Field Stop | 1200 V | 160 A | 160 A | 1.95V @ 15V, 40A | 454 W | 1.4mJ (on), 1.1mJ (off) | Standard | 221 nC | 46ns/220ns | 600V, 40A, 10Ohm, 15V | 166 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
FGHL75T65MQDTFS4 MID SPEED IGBT 650V 75A TO24 |
812 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 300 A | 1.8V @ 15V, 75A | 375 W | 2.35mJ (on), 1.25mJ (off) | Standard | 149 nC | 24ns/118ns | 400V, 75A, 4.7Ohm, 15V | 107 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
FGHL75T65MQDIGBT 650V 75A TO247 |
395 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 300 A | 1.8V @ 15V, 75A | 375 W | 1.94mJ (on), 1.55mJ (off) | Standard | 145 nC | 33ns/176ns | 400V, 75A, 10Ohm, 15V | 36 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FGH75T65SHDTL4IGBT FIELD STOP 650V 150A TO247 |
289 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | Field Stop | 650 V | 150 A | 300 A | 2.1V @ 15V, 75A | 455 W | 1.06mJ (on), 1.56mJ (off) | Standard | 126 nC | 55ns/189ns | 400V, 75A, 15Ohm, 15V | 76 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
FGH50T65UPDIGBT TRENCH/FS 650V 100A TO247-3 |
253 | - |
|
Datasheet | - | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 650 V | 100 A | 150 A | 2.3V @ 15V, 50A | 340 W | 2.7mJ (on), 740µJ (off) | Standard | 230 nC | 32ns/160ns | 400V, 50A, 6Ohm, 15V | 53 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
FGH75T65UPDIGBT TRENCH FS 650V 150A TO247-3 |
1,131 | - |
|
Datasheet | - | TO-247-3 | Tube | Not For New Designs | Trench Field Stop | 650 V | 150 A | 225 A | 2.3V @ 15V, 75A | 375 W | 2.85mJ (on), 1.2mJ (off) | Standard | 385 nC | 32ns/166ns | 400V, 75A, 3Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
FGHL75T65LQDTL4FS4 LOW VCESAT IGBT 650V 75A TO2 |
247 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | Trench Field Stop | 650 V | 80 A | 300 A | 1.35V @ 15V, 75A | 469 W | 1.01mJ (on), 2.53mJ (off) | Standard | 779 nC | 40ns/548ns | 400V, 75A, 4.7Ohm, 15V | 87 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
Single IGBTs FAQ
How can I narrow the current Single IGBTs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single IGBTs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
