Single IGBTs

Browse available Single IGBTs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Power - Max	Switching Energy	Input Type	Gate Charge	Td (on/off) @ 25°C	Test Condition	Reverse Recovery Time (trr)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
XGD8290TI IGBT N-CH 20A D2PAK Littelfuse Inc.	9,661	-	RFQ	Datasheet	*	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XGB8206ATI IGBT N-CH 20A 350V D2PAK Littelfuse Inc.	7,379	-	RFQ	Datasheet	*	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XGS8206AUI IGBT N-CH 20A D2PAK Littelfuse Inc.	5,913	-	RFQ	Datasheet	*	-	Tube	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IGW50N65HS IGBT WITHOUT ANTI-PARALLEL DIODE Infineon Technologies	5,428	-	RFQ	Datasheet	*	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IKW03N120H IGBT WITH ANTI-PARALLEL DIODE Infineon Technologies	7,402	-	RFQ	Datasheet	-	TO-247-3	Bulk	Active	-	1200 V	9.6 A	9.9 A	2.8V @ 15V, 3A	62.5 W	140µJ (on), 150µJ (off)	Standard	22 nC	9.2ns/281ns	800V, 3A, 82Ohm, 15V	42 ns	-40°C ~ 150°C (TJ)	-	-	Through Hole	PG-TO247-3-21
ISL9V2040D3STV IGBT, 430V, 10A, 1.95V, 200MJ, D onsemi	2,725	-	RFQ	Datasheet	EcoSPARK®	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Obsolete	-	430 V	10 A	-	1.9V @ 4V, 6A	130 W	-	Logic	12 nC	610ns/3.64µs	-	-	-40°C ~ 175°C (TJ)	-	-	Surface Mount	TO-252AA
APT36GA60SD15 IGBT PT 600V 65A D3PAK Microchip Technology	5,421	-	RFQ	Datasheet	POWER MOS 8®	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Obsolete	PT	600 V	65 A	109 A	2.5V @ 15V, 20A	290 W	307µJ (on), 254µJ (off)	Standard	102 nC	16ns/122ns	400V, 20A, 10Ohm, 15V	19 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	D3PAK
FGD2736G3-F085V IGBT ECOSPARK1 IGN TO252 onsemi	8,930	-	RFQ	Datasheet	EcoSPARK®	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Obsolete	-	360 V	37.5 A	-	1.65V @ 4.5V, 10A	150 W	-	Standard	18 nC	900ns/4.4µs	300V, 6.5A, 470Ohm, 5V	3 µs	-40°C ~ 175°C (TJ)	Automotive	AEC-Q101	Surface Mount	DPAK
FGAF30S65AQ IGBT 650V 30A TO-3PF onsemi	2,389	-	RFQ	Datasheet	-	TO-3P-3 Full Pack	Tube	Obsolete	Trench Field Stop	650 V	60 A	90 A	2.1V @ 15V, 30A	83 W	515µJ (on), 140µJ (off)	Standard	58 nC	18ns/92ns	400V, 15A, 13Ohm, 15V	267 ns	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-3PF-3
IRG4BC40UPBF IGBT 600V 40A TO220AB International Rectifier	7,153	-	RFQ	Datasheet	-	TO-220-3	Bulk	Active	-	600 V	40 A	160 A	2.1V @ 15V, 20A	160 W	320µJ (on), 350µJ (off)	Standard	150 nC	34ns/110ns	480V, 20A, 10Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-220AB
IRG4BC30WPBF 600V WARP 60-150 KHZ DISCRETE IG International Rectifier	2,600	-	RFQ	Datasheet	-	TO-220-3	Bulk	Active	-	600 V	23 A	92 A	2.7V @ 15V, 12A	100 W	130µJ (on), 130µJ (off)	Standard	51 nC	25ns/99ns	480V, 12A, 23Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-220AB

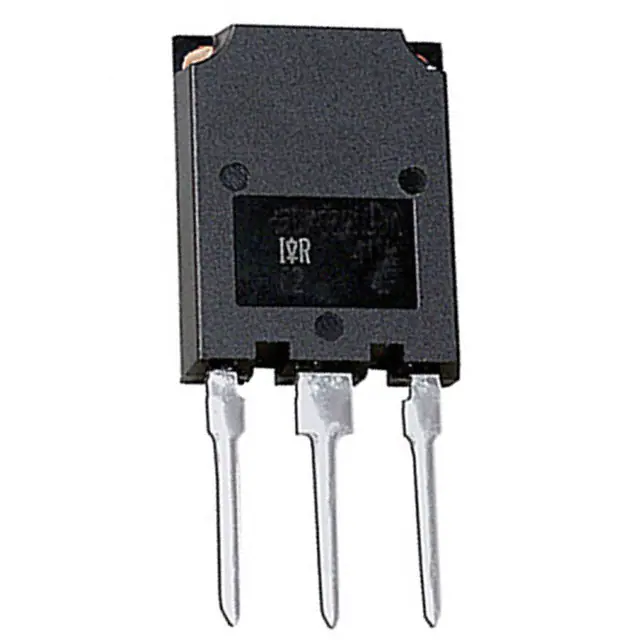

IRG4PSC71KPBF IGBT, 85A, 600V, N-CHANNEL International Rectifier	5,543	-	RFQ	Datasheet	-	TO-274AA	Bulk	Active	-	600 V	85 A	200 A	2.3V @ 15V, 60A	350 W	790µJ (on), 1.98mJ (off)	Standard	340 nC	34ns/54ns	480V, 60A, 5Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	SUPER-247™ (TO-274AA)
IRG7PH35UD1-EP IGBT W/ULTRA-LOW VF DIODE FOR IN International Rectifier	9,914	-	RFQ	Datasheet	-	TO-247-3	Bulk	Active	Trench	1200 V	50 A	150 A	2.2V @ 15V, 20A	179 W	620µJ (off)	Standard	130 nC	-/160ns	600V, 20A, 10Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-247AD
IRG4BC30UPBF ULTRAFAST SPEED IGBT International Rectifier	6,941	-	RFQ	Datasheet	-	TO-220-3	Bulk	Active	-	600 V	23 A	92 A	2.1V @ 15V, 12A	100 W	160µJ (on), 200µJ (off)	Standard	50 nC	17ns/78ns	480V, 12A, 23Ohm, 15V	-	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-220AB
IXGA30N60C3 IGBT 600V 60A 220W TO-263AA IXYS	2,964	-	RFQ	Datasheet	GenX3™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	PT	600 V	60 A	150 A	3V @ 15V, 20A	220 W	270µJ (on), 90µJ (off)	Standard	38 nC	16ns/42ns	300V, 20A, 5Ohm, 15V	26 ns	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-263 (D2PAK)
PCG60N60SFF IGBT PCG60N60SFF onsemi	8,000	-	RFQ	Datasheet	-	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PCG20N60A4W IGBT PCG20N60A4W onsemi	5,105	-	RFQ	Datasheet	-	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PCFG40T65SQF IGBT FIELD STOP 650V WAFER onsemi	7,525	-	RFQ	Datasheet	-	Die	Tape & Reel (TR)	Obsolete	Field Stop	650 V	-	160 A	2.1V @ 15V, 40A	-	-	Standard	80 nC	-	-	-	-40°C ~ 175°C (TJ)	-	-	Surface Mount	Wafer
AUXTMGPS4070D1 IGBT TRENCH Infineon Technologies	4,312	-	RFQ	Datasheet	-	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AUXTMGPS4070D2 IGBT TRENCH Infineon Technologies	4,987	-	RFQ	Datasheet	-	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Single IGBTs FAQ

What Single IGBTs components can I source from EGOO?

You can browse available Single IGBTs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Single IGBTs parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
