Single IGBTs
Compare the current Single IGBTs IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

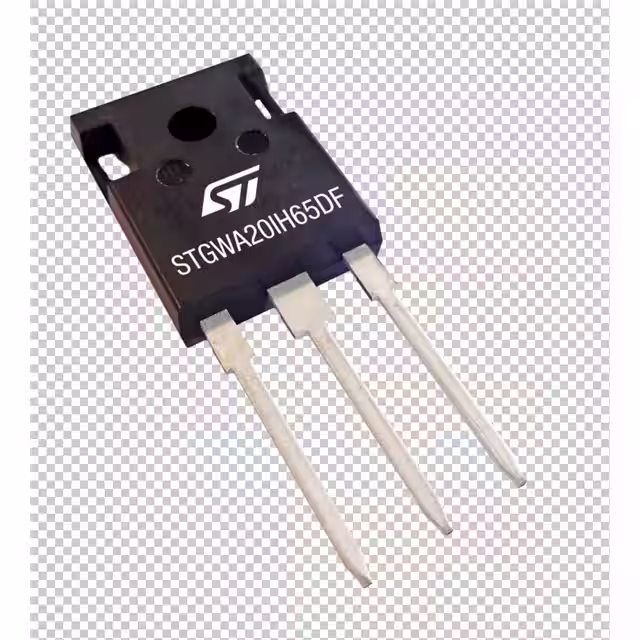

STGWA20IH65DFTRENCH GATE FIELD-STOP 650 V, 20 |
24 | - |
|
Datasheet | IH | TO-247-3 | Tube | Last Time Buy | Trench Field Stop | 650 V | 40 A | 60 A | 2.05V @ 15V, 20A | 159 W | 110µJ (off) | Standard | 56 nC | -/120ns | 400V, 20A, 22Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
STGB20NC60VIGBT 600V 60A 200W D2PAK |
4,537 | - |
|
Datasheet | PowerMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | - | 600 V | 60 A | 100 A | 2.5V @ 15V, 20A | 200 W | 220µJ (on), 330µJ (off) | Standard | 100 nC | 31ns/100ns | 390V, 20A, 3.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
STGW80H65DFB-4IGBT BIPO 650V 80A TO247 |
7,956 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | Trench Field Stop | 650 V | 120 A | 240 A | 2V @ 15V, 80A | 469 W | 2.1mJ (on), 1.5mJ (off) | Standard | 414 nC | 84ns/280ns | 400V, 80A, 10Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
STGF30H60DFIGBT 600V 60A 37W TO220FP |
1 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | Trench Field Stop | 600 V | 60 A | 120 A | 2.4V @ 15V, 30A | 37 W | 350µJ (on), 400µJ (off) | Standard | 105 nC | 50ns/160ns | 400V, 30A, 10Ohm, 15V | 110 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-220FP |
|
STGW30N90DIGBT 900V 60A 220W TO247 |
8,598 | - |
|
Datasheet | PowerMESH™ | TO-247-3 | Tube | Obsolete | - | 900 V | 60 A | 135 A | 2.75V @ 15V, 20A | 220 W | 1.66mJ (on), 4.44mJ (off) | Standard | 110 nC | 29ns/275ns | 900V, 20A, 10Ohm, 15V | 152 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STGP30H65FIGBT 650V 60A 260W TO-220AB |
14 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Trench Field Stop | 650 V | 60 A | 120 A | 2.4V @ 15V, 30A | 260 W | 350µJ (on), 400µJ (off) | Standard | 105 nC | 50ns/160ns | 400V, 30A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
STGWA40S120DF3IGBT 1200V 40A TO247-3L |
4,884 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | Trench Field Stop | 1200 V | 80 A | 160 A | 2.15V @ 15V, 40A | 468 W | 1.43mJ (on), 3.83mJ (off) | Standard | 129 nC | 35ns/148ns | 600V, 40A, 15Ohm, 15V | 355 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STGWA40N120KDIGBT 1200V 80A 240W TO247 |
6,769 | - |
|
Datasheet | PowerMESH™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 80 A | 120 A | 3.85V @ 15V, 30A | 240 W | 3.7mJ (on), 5.7mJ (off) | Standard | 126 nC | 48ns/338ns | 960V, 30A, 10Ohm, 15V | 84 ns | -55°C ~ 125°C (TJ) | - | - | Through Hole | TO-247 |
|
|
STGW60H65FIGBT 650V 120A 360W TO247 |
9,677 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | Trench Field Stop | 650 V | 120 A | 240 A | 1.9V @ 15V, 60A | 360 W | 750µJ (on), 1.05mJ (off) | Standard | 217 nC | 65ns/180ns | 400V, 60A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STG200G65FD8AGIGBT TRENCH FS 650V 200A DIE |
4,140 | - |
|
Datasheet | M | Die | Bulk | Active | Trench Field Stop | 650 V | 200 A | 600 A | 1.8V @ 15V, 200A | - | 5.34mJ (on), 6.23mJ (off) | Standard | 701 nC | 66.2ns/442.7ns | 400V, 200A, 4.7Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Die |
Single IGBTs FAQ
How can I narrow the current Single IGBTs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single IGBTs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
