Single IGBTs
Compare the current Single IGBTs IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "IXXR110N65B4H1")
|
IXXR110N65B4H1IGBT 650V 150A 455W ISOPLUS247 |
28 | - |
|
Datasheet | GenX4™, XPT™ | TO-247-3 | Tube | Active | PT | 650 V | 150 A | 460 A | 2.2V @ 15V, 110A | 455 W | 2.2mJ (on), 1.05mJ (off) | Standard | 183 nC | 38ns/156ns | 400V, 55A, 2Ohm, 15V | 100 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
IXBA16N170AHVREVERSE CONDUCTING IGBT |
8 | - |
|
Datasheet | BIMOSFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | - | 1700 V | 16 A | 40 A | 6V @ 15V, 10A | 150 W | 2.5mJ (off) | Standard | 65 nC | 15ns/250ns | 1360V, 10A, 10Ohm, 15V | 25 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
IXXK300N60B3IGBT 600V 550A 2300W TO264 |
9 | - |
|
Datasheet | GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | PT | 600 V | 550 A | 1140 A | 1.6V @ 15V, 100A | 2300 W | 3.45mJ (on), 2.86mJ (off) | Standard | 460 nC | 50ns/190ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXXK) |
|
IXYK85N120C4H1IGBT TRENCH 1200V 220A SOT227B |
82 | - |
|
Datasheet | XPT™ | SOT-227-4, miniBLOC | Tube | Active | Trench | 1200 V | 220 A | 420 A | 2.5V @ 15V, 85A | 1150 W | 4.3mJ (on), 2mJ (off) | Standard | 192 nC | 35ns/280ns | 600V, 50A, 5Ohm, 15V | 265 ns | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXYF30N450IGBT 4500V 23A ISOPLUSI4 |
17 | - |
|
Datasheet | XPT™ | ISOPLUSi5-PAK™ | Tube | Active | - | 4500 V | 23 A | 190 A | 3.9V @ 15V, 30A | 230 W | - | Standard | 88 nC | 38ns/168ns | 960V, 30A, 15Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXYP50N65C3IGBT 650V 130A 600W TO220 |
7,799 | - |
|
Datasheet | GenX3™, XPT™ | TO-220-3 | Tube | Active | PT | 650 V | 130 A | 250 A | 2.1V @ 15V, 36A | 600 W | 1.3mJ (on), 370µJ (off) | Standard | 80 nC | 22ns/80ns | 400V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXGA20N120A3IGBT PT 1200V 40A TO263AA |
4,657 | - |
|
Datasheet | GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 1200 V | 40 A | 120 A | 2.5V @ 15V, 20A | 180 W | 2.85mJ (on), 6.47mJ (off) | Standard | 50 nC | 16ns/290ns | 960V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXBT42N170IGBT 1700V 80A TO268AA |
5,888 | - |
|
Datasheet | BIMOSFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 1700 V | 80 A | 300 A | 2.8V @ 15V, 42A | 360 W | - | Standard | 188 nC | - | - | 1.32 µs | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

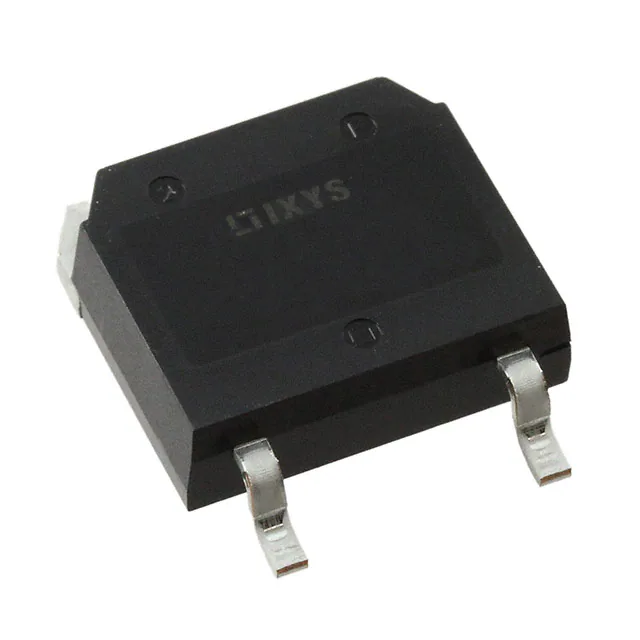

IXYT30N450HVIGBT 4500V 60A TO268HV |
5,472 | - |
|
Datasheet | XPT™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | - | 4500 V | 60 A | 200 A | 3.9V @ 15V, 30A | 430 W | - | Standard | 88 nC | 38ns/168ns | 960V, 30A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXYT) |
|
|
IXBK75N170IGBT 1700V 200A TO264AA |
7,696 | - |
|
Datasheet | BIMOSFET™ | TO-264-3, TO-264AA | Tube | Active | - | 1700 V | 200 A | 580 A | 3.1V @ 15V, 75A | 1040 W | - | Standard | 350 nC | - | - | 1.5 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA |
Single IGBTs FAQ
How can I narrow the current Single IGBTs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single IGBTs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
