Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STG719STRIC SWITCH SPDT X 1 4OHM SOT23-6 |
108,597 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 7ns, 4.5ns (Typ) | 200MHz | - | 19pF | 250pA | -52dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

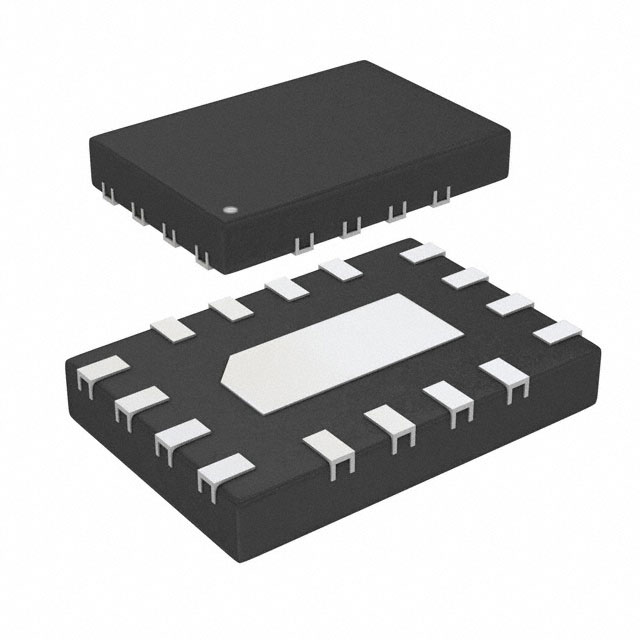

STG3692QTRIC SWITCH SPDT X 4 5.2OHM 16QFN |
0 |
1+：$0.95000 10+：$0.68100 25+：$0.61360 100+：$0.53990 250+：$0.50464 500+：$0.48342 1000+：$0.46833 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 5.2Ohm | 300mOhm | 1.65V ~ 4.3V | - | 15ns, 13ns | 800MHz | 5pC | 5pF | 20nA | -78dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (2.6x1.8) |
|
STG3682QTRIC SWITCH SPDT X 2 5.2OHM 10QFN |
20,868 |
1+：$1.20000 10+：$0.86500 25+：$0.78120 100+：$0.68950 250+：$0.64580 500+：$0.61942 1000+：$0.60493 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 5.2Ohm | 300mOhm | 1.65V ~ 4.3V | - | 15ns, 13ns | 800MHz | 5pC | 5pF | 20nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
STG3157CTRIC SWITCH SPDTX1 15OHM SOT323-6L |
14,841 |
1+：$0.57000 10+：$0.39900 25+：$0.35720 100+：$0.31090 250+：$0.28884 500+：$0.27554 1000+：$0.26460 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 4.3V | - | 15ns, 10ns | 250MHz | 23pC | 5pF | 100nA | -55dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-6L |
|
HCF4051YM013TRIC MUX 8:1 280OHM 16SO |
118,886 |
1+：$1.24000 10+：$0.89700 25+：$0.81120 100+：$0.71740 250+：$0.67256 500+：$0.64552 1000+：$0.63302 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 280Ohm | 5Ohm | 3V ~ 20V | - | - | 60MHz | - | 0.2pF, 5pF | 100nA | -40dB @ 3MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
.jpg "STG3856QTR")
|
STG3856QTRIC SWITCH SP3T X 2 1OHM 12QFN |
21,839 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 2 | 1Ohm | 10mOhm | 1.65V ~ 4.3V | - | 40ns, 20ns | 100MHz | 55pC | 5pF | 20nA | -84dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 12-QFN (2.2x1.4) |
|
|
M74HC4852YRM13TRIC SWITCH SP4T X 2 195OHM 16SO |
9,751 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|

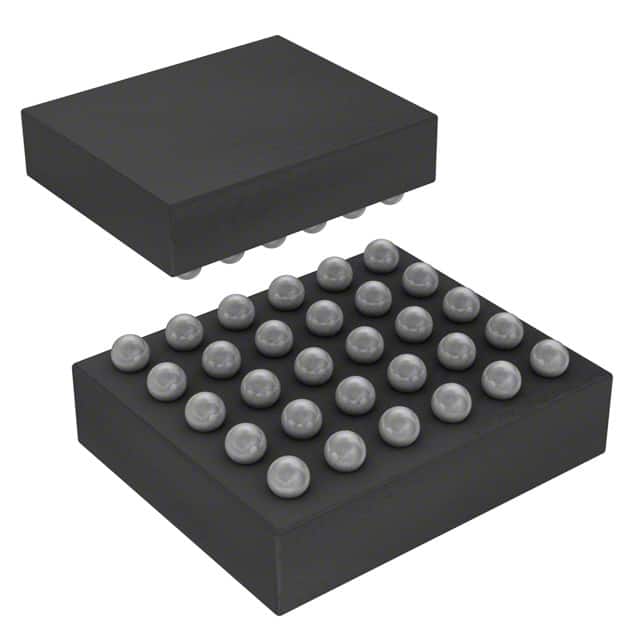

STG3820BJRIC SW DPDTX4 5.8OHM FLIPCHIP 30 |
3,110 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:2 | 4 | 5.8Ohm | 300mOhm | 1.65V ~ 4.3V | - | 15ns, 13ns | 800MHz | 6.4pC | 2pF | 20nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | FlipChip 30 |
|
STG5682QTRIC SWITCH SPDT X 2 550MOHM 16QFN |
5,021 |
1+：$2.29000 10+：$1.69700 25+：$1.54800 100+：$1.38440 250+：$1.30640 500+：$1.25938 1000+：$1.22067 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 550mOhm | 15mOhm | 1.65V ~ 4.5V | - | 80ns, 50ns | 33MHz | 126pC | 6pF | 100nA | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (2.6x1.8) |
|
|
STG4210QTRIC SWITCH SPST-NOX2 1.3OHM 10QFN |
0 |
3000+：$0.35430 6000+：$0.34557 9000+：$0.34120 15000+：$0.33635 21000+：$0.33352 30000+：$0.33080 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 1.3Ohm | 10mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 58MHz | 49pC | 85pF | 100nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
