Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

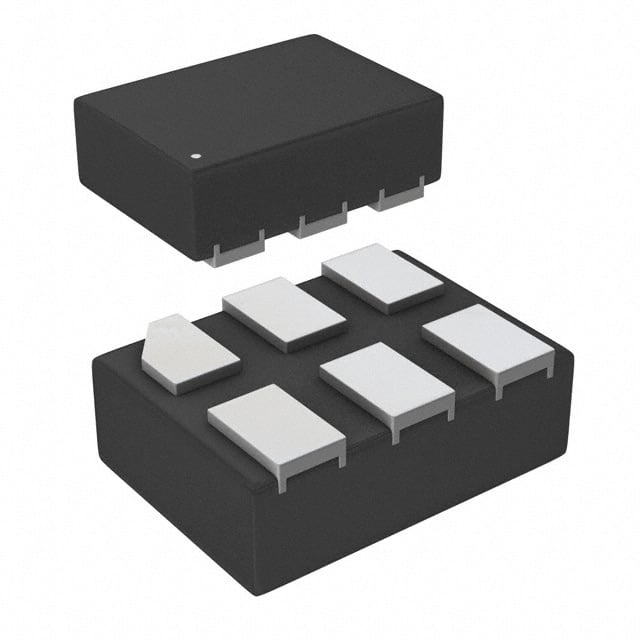

.jpg "STG3155DTR")
|
STG3155DTRIC SWITCH SPDT X 1 600MOHM 6DFN |
10,472 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 21mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 70MHz | 53pC | 6.6pF | 20nA | -72dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-DFN (1.45x1) |
|
M74HC4851YRM13TRIC MUX 8:1 195OHM 16SO |
3,678 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|
STG5683QTRIC SWITCH SPDT X 2 550MOHM 16QFN |
2,970 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 15mOhm | 1.65V ~ 4.5V | - | 80ns, 50ns | 33MHz | 46pC | 6pF | - | -60dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (2.6x1.8) |
|
STG6384QTRIC SWITCH SPST-NOX2 1.3OHM 10QFN |
2,934 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 1.3Ohm | 10mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 65MHz | 49pC | 85pF | 100nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
|
M74HC4851RM13TRIC MUX 8:1 195OHM 16SO |
4,792 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
M74HC4316B1RIC SWITCH SPDT X 4 70OHM 16DIP |
354 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 1:1 | 4 | 70Ohm | 5Ohm | 2V ~ 12V | ±1V ~ 6V | 18ns, 29ns | 43MHz | - | 1pF, 5pF | 100nA | -50dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
74V1G66STRIC SWITCH SPST-NOX1 10OHM SOT23 |
1,271 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 4ns, 7.5ns | 180MHz | - | 3pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
HCF4052BEYIC SWITCH SP4T X 2 280OHM 16DIP |
3,858 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 280Ohm | 5Ohm | 3V ~ 20V | - | - | 60MHz | - | 0.2pF, 5pF | 100nA | -40dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
.jpg "M74HC4852MWR")
|
M74HC4852MWRIC SWITCH SP4T X 2 195OHM 16SO |
2,696 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
 SERIES.JPG "M74HC4016B1R")
|
M74HC4016B1RIC SWITCH SPST-NOX4 120OHM 14DIP |
3,041 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 120Ohm | 6Ohm | 2V ~ 12V | - | 14ns, 24ns | 42MHz | - | 1pF, 5pF | 100nA | -50dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-DIP |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
