Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23167YZPRIC SW SPST-NCX2 900MOHM 8DSBGA |
2,333 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
TS5A22364DRCRIC SWITCH SPDTX2 740MOHM 10VSON |
8,242 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
MAX4594DBVRIC SWITCH SPST-NOX1 10OHM SOT23 |
6,748 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.4V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

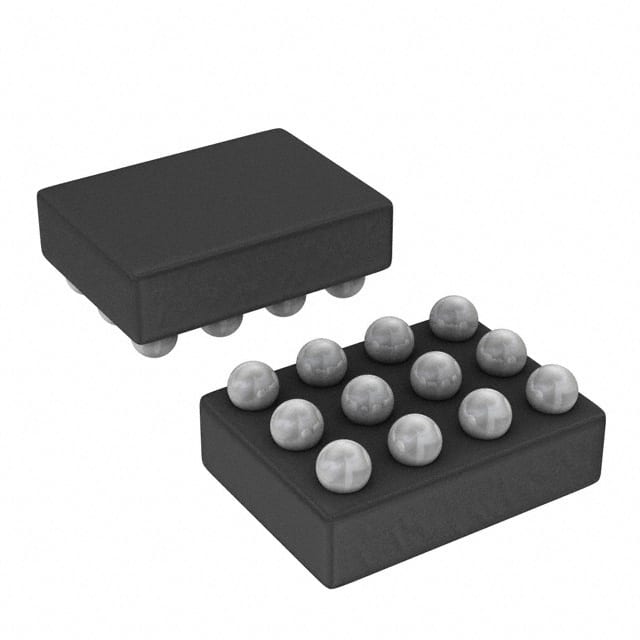

TS5A22366YFCRIC SWITCH SPDT X 2 1OHM 12DSBGA |
3,145 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 1Ohm | 100mOhm | 2.25V ~ 5.5V | - | 374ns, 325ns | 32MHz | 168pC | 48pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DSBGA (1.57x1.17) |
|
TS3A5017QRGYRQ1IC SWITCH SP4T X 2 11OHM 16VQFN |
10,891 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 11Ohm (Typ) | 1Ohm | 2.3V ~ 3.6V | - | 9.5ns, 3.5ns | 165MHz | 5pC | 4.5pF, 19pF | 50nA (Typ) | -69dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-VQFN (4x3.5) |
|
LMS4684LD/NOPBIC SWITCH SPDTX2 800MOHM 10WSON |
3,270 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WSON (3x4) |
|
TS5A22364QDGSRQ1IC SWITCH SPDTX2 740MOHM 10VSSOP |
6,484 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 500pC | - | - | -78dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-VSSOP |
|
TS12A4514DIC SWITCH SPST-NOX1 10OHM 8SOIC |
2,260 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.7V ~ 12V | - | 75ns, 45ns | 520MHz | -11.5pC | 7.5pF, 7.5pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LMS4684ITL/NOPBIC SWITCH SPDTX2 800MOHM 12USMD |
717 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-uSMD (1.59x2.33) |
|
TS5N412PWIC SWITCH SPDTX4 12.5OHM 16TSSOP |
939 | - |
|
Datasheet | - | Bulk | Active | SPDT | 2:1 | 4 | 12.5Ohm | - | 4.75V ~ 5.25V | - | 200ns, 200ns | 25MHz (Min) | - | - | - | -50dB @ 25MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
