Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMUX6112PWRIC SWITCH SPSTX4 160OHM 16TSSOP |
10,279 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 160Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | 78ns, 68ns | 800MHz | -0.6pC | 2.5pF, 2.4pF | 20pA | -115dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6111PWRIC SWITCH SPSTX4 160OHM 16TSSOP |
4,807 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 160Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | 78ns, 68ns | 800MHz | 0.6pC | 1.9pF, 2.4pF | 20pA | -100dB ~ -115dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6136PWRIC SWITCH SPDTX2 135OHM 16TSSOP |
692 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 135Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | - | 670MHz | -0.4pC | 2.4pF | 50pA | -105dB ~ -92dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX6112RTERIC SWITCH SPST X 4 160OHM 16WQFN |
970 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 160Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | 78ns, 68ns | 800MHz | 0.6pC | 2.5pF, 2.4pF | 20pA | -100dB ~ -115dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (3x3) |
|
|
TMUX6212PWRIC SW SPST-NCX4 3.1OHM 16TSSOP |
5,017 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 220ns | 50MHz | 78pC | 28pF, 45pF | 50pA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX6104PWRIC MUX 4:1 200OHM 14TSSOP |
2,817 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 200Ohm | 1.5Ohm | 10V ~ 36V | ±5V ~ 18V | 85ns, 53ns | 500MHz | -0.41pC | 1.6pF, 3.8pF | 20pA | -105dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
TMUX7212PWRIC SWITCH SPSTX4 2.5OHM 16TSSOP |
3,083 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 2.5Ohm | 180mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 185ns, 210ns | 48MHz | 92pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6209PWRIC SW DP4T 6.2OHM 16TSSOP |
1,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DP4T | 4:1 | 2 | 6.2Ohm | 700mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 200ns, 290ns | 52MHz | 2pC | 15pF, 68pF | 400pA | -85dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6208PWRIC SWITCH SP8TX1 6.2OHM 16TSSOP |
931 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 200ns, 290ns | 30MHz | 2pC | 15pF, 138pF | 40pA | -65dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

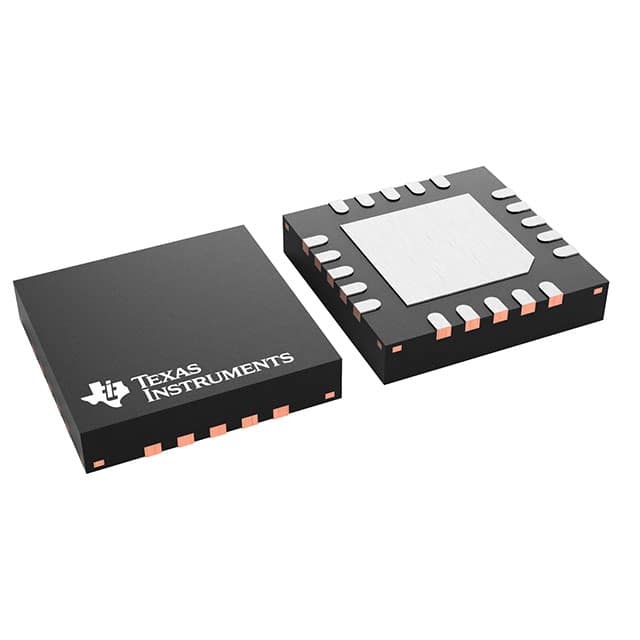

TMUX7234RRQRIC SW SPDT-NO/NCX4 5.8OHM 20WQFN |
4,536 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 5.8Ohm | 200mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 100ns, 90ns | 92MHz | 3pC | 16pF, 26pF | 1nA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
