Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16H200P.2516H200P.25 16 AWG MAGNET WIRE, E |
3,706 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 31.0' (9.4m) | MW 35-C | 0.25 lbs (113.4 g) |
|
29HNSP.125#29 HVY MAG WIRE, 155C RED 2OZ |
4,540 | - |
|
Datasheet | - | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 308.0' (93.8m) | MW 80-C | 0.13 lbs (56.7 g) |
|

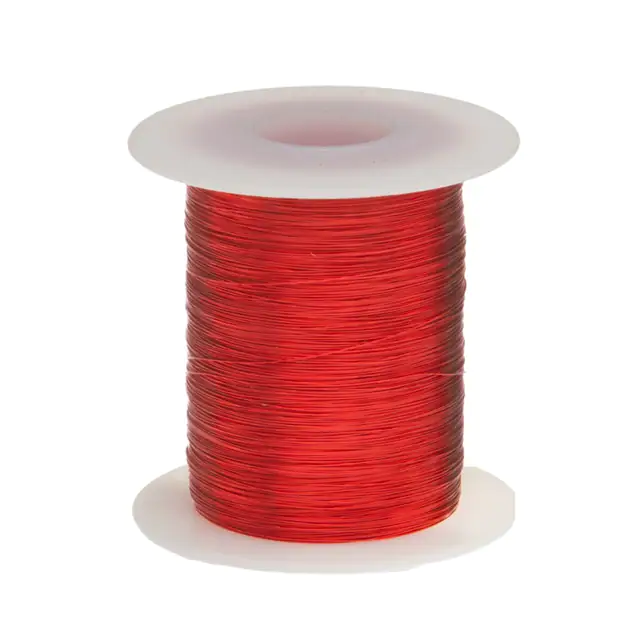

31HNSP.125#31 HVY MAG WIRE, 155C RED 2OZ |
2,199 | - |
|
Datasheet | - | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 494.0' (150m) | MW 80-C | 0.13 lbs (56.7 g) |
|
22HNSP.125MAGNET WIRE, HEAVY BUILD ENAMELE |
2,289 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 62.0' (19m) | MW 80-C | 0.13 lbs (56.7 g) |
|
21SNSP.2521SNSP.25 MAGNET WIRE, ENAMELED |
3,009 | - |
|
Datasheet | - | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 100.0' (30m) | MW 80-C | 0.25 lbs (113.4 g) |
|

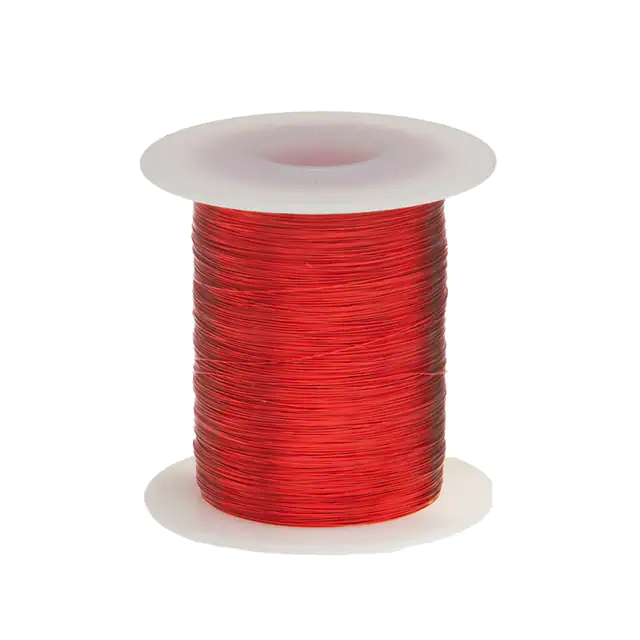

29SNSP.2529SNSP.25 29 AWG MAGNET WIRE, EN |
1,257 | - |
|
Datasheet | - | Bag | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 630.0' (192m) | MW 80-C | 0.25 lbs (113.4 g) |
|
28SNSP.2528SNSP.25 28 AWG MAGNET WIRE, EN |
2,169 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 507.0' (155m) | MW 80-C | 0.25 lbs (113.4 g) |
|
41SNSP.12541SNSP.125 MAGNET WIRE, ENAMELED |
3,718 | - |
|
Datasheet | - | Bag | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 5090.0' (1551m) | MW 79-C | 0.13 lbs (56.7 g) |
|
19SNSP.2519SNSP.25 MAGNET WIRE, ENAMELED |
3,804 | - |
|
Datasheet | - | Bag | Active | 19 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 32.0' (10m) | MW 80-C | 0.25 lbs (113.4 g) |
|

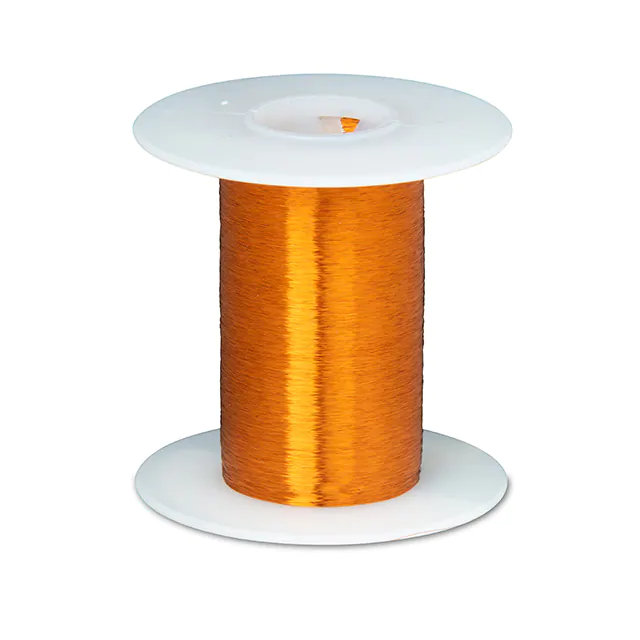

36S200P.125MAGNET WIRE, ENAMELED COPPER WIR |
3,047 | - |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 1597.0' (487m) | MW 35-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
