Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40SNSP.12540SNSP.125 MAGNET WIRE, ENAMELED |
2,265 | - |
|
Datasheet | - | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 4152.0' (1266m) | MW 79-C | 0.13 lbs (56.7 g) |
|
22SNSP.2522SNSP.25 MAGNET WIRE, ENAMELED |
2,201 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 127.0' (39m) | MW 80-C | 0.25 lbs (113.4 g) |
|

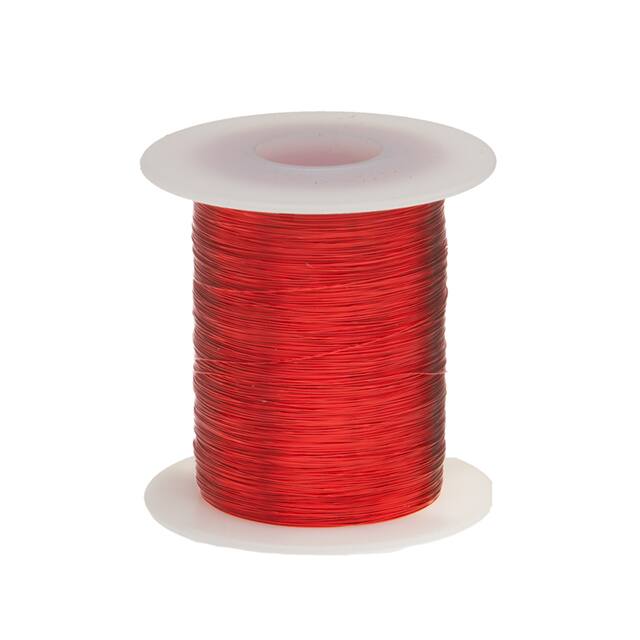

30SNSP.2530SNSP.25 30 AWG MAGNET WIRE, EN |
1,112 | - |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 803.0' (245m) | MW 80-C | 0.25 lbs (113.4 g) |
|

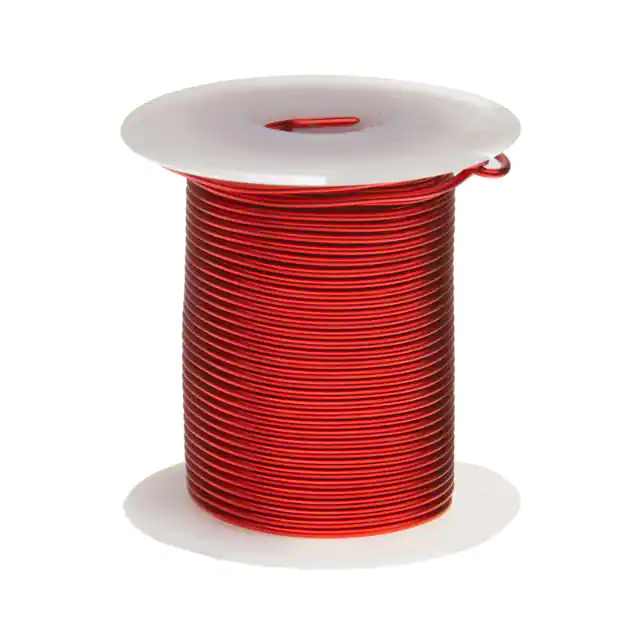

18SNSP.2518SNSP.25 18 AWG MAGNET WIRE, EN |
3,275 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 50.0' (15m) | MW 80-C | 0.25 lbs (113.4 g) |
|
31SNSP.2531SNSP.25 MAGNET WIRE, ENAMELED |
3,561 | - |
|
Datasheet | - | Bag | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1014.0' (309m) | MW 80-C | 0.25 lbs (113.4 g) |
|
24HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
3,052 | - |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 197.0' (60m) | MW 80-C | 0.25 lbs (113.4 g) |
|

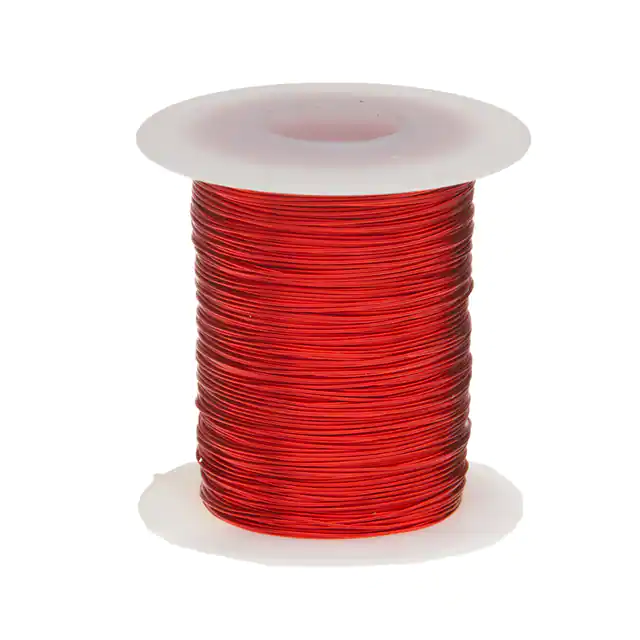

23SNSP.2523SNSP.25 23 AWG MAGNET WIRE, EN |
3,895 | - |
|
Datasheet | - | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 158.0' (48m) | MW 80-C | 0.25 lbs (113.4 g) |
|
23HNSP.125#23 HVY MAG WIRE, 155C RED 2OZ |
1,501 | - |
|
Datasheet | - | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 78.0' (24m) | MW 80-C | 0.13 lbs (56.7 g) |
|
26HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
1,319 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 314.0' (96m) | MW 80-C | 0.25 lbs (113.4 g) |
|
15SNSP.2515SNSP.25 MAGNET WIRE, ENAMELED |
3,477 | - |
|
Datasheet | - | Bag | Active | 15 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 25.0' (7.6m) | MW 80-C | 0.25 lbs (113.4 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
