Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43PEP.125SMALL PARTS 43PEP.125 MAGNET WIR |
3,422 | - |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Enamel | - | 8262.0' (2518m) | MW 1-C | 0.13 lbs (56.7 g) |
|
37SNSP.537SNSP.5 37 AWG MAGNET WIRE, ENA |
1,089 | - |
|
Datasheet | - | Bag | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 7899.0' (2408m) | MW 79-C | 0.5 lbs (226.8 g) |
|
40S200P.540S200P.5 MAGNET WIRE, ENAMELED |
1,957 | - |
|
Datasheet | - | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyester | - | 16608.0' (5062m) | MW 35-C | 0.5 lbs (226.8 g) |
|

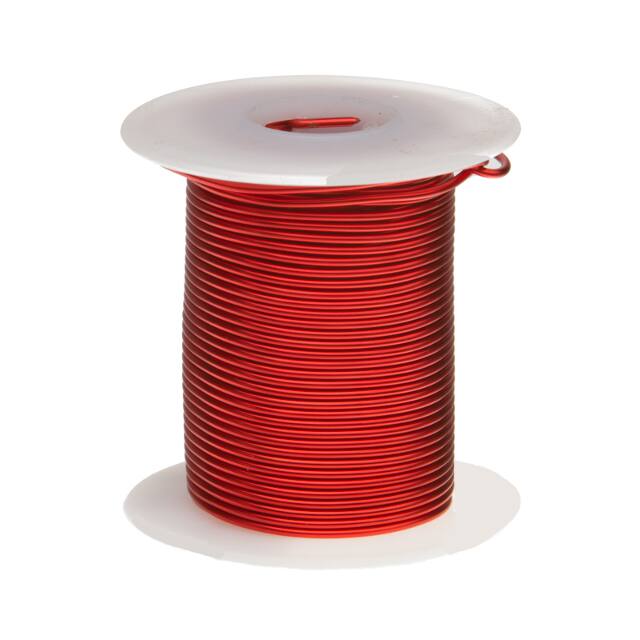

20HNSP.5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,482 | - |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 157.0' (48m) | MW 80-C | 0.5 lbs (226.8 g) |
|
39SNSP.539SNSP.5 39 AWG MAGNET WIRE, ENA |
3,394 | - |
|
Datasheet | - | Bag | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 13029.0' (3971m) | MW 79-C | 0.5 lbs (226.8 g) |
|

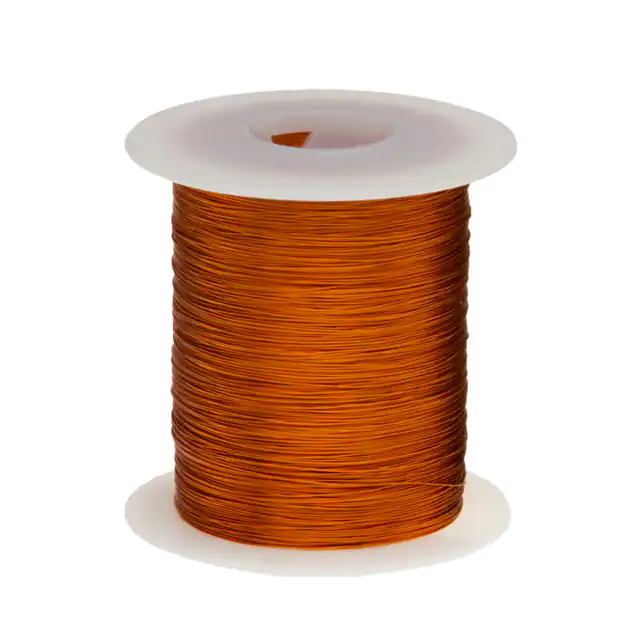

30H240P.125#30 HVY MAG WIRE, 240C NAT 2OZ |
3,039 | - |
|
Datasheet | - | Box | Active | 30 AWG | Copper, Annealed Bare | Polyimide | 0.012" (0.30mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
|
38SNSP.538SNSP.5 38 AWG MAGNET WIRE, ENA |
1,349 | - |
|
Datasheet | - | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 9978.0' (3041m) | MW 79-C | 0.5 lbs (226.8 g) |
|
22HNSP.5MAGNET WIRE, HEAVY BUILD ENAMELE |
4,958 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 250.0' (76.2m) | MW 80-C | 0.5 lbs (226.8 g) |
|
40SNSP.540SNSP.5 40 AWG MAGNET WIRE, ENA |
4,983 | - |
|
Datasheet | - | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 16609.0' (5062m) | MW 79-C | 0.5 lbs (226.8 g) |
|
|
32H240P.125#32 HVY MAG WIRE, 240C NAT 2OZ |
2,463 | - |
|
Datasheet | - | Box | Active | 32 AWG | Copper, Annealed Bare | Polyimide | 0.010" (0.25mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
