Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18H200P18H200P MAGNET WIRE, ENAMELED CO |
4,389 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 199.0' (61m) | MW 35-C | 1.0 lbs (453.6 g) |
|
100/38LITZ.125#18 LITZ WIRE, 5/20/38STR, 2OZ |
2,643 | - |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.052" (1.32mm) | 25.0' (7.6m) | MW 80-C | 0.13 lbs (56.7 g) |
|
35HNSP.5#35 HVY MAG WIRE, 155C RED 8OZ |
4,898 | - |
|
Datasheet | - | Box | Active | 35 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.007" (0.18mm) | 4946.0' (1508m) | MW 79-C | 0.5 lbs (226.8 g) |
|
28SNSP28SNSP MAGNET WIRE, ENAMELED COP |
1,328 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2027.0' (618m) | MW 80-C | 1.0 lbs (453.6 g) |
|

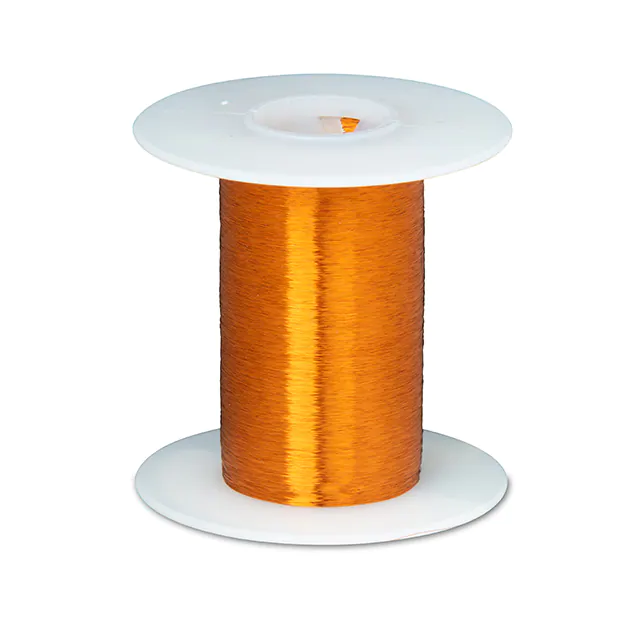

44S200P.2544S200P.25 MAGNET WIRE, ENAMELED |
1,265 | - |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyester | - | 19950.0' (6081m) | MW 35-C | 0.25 lbs (113.4 g) |
|

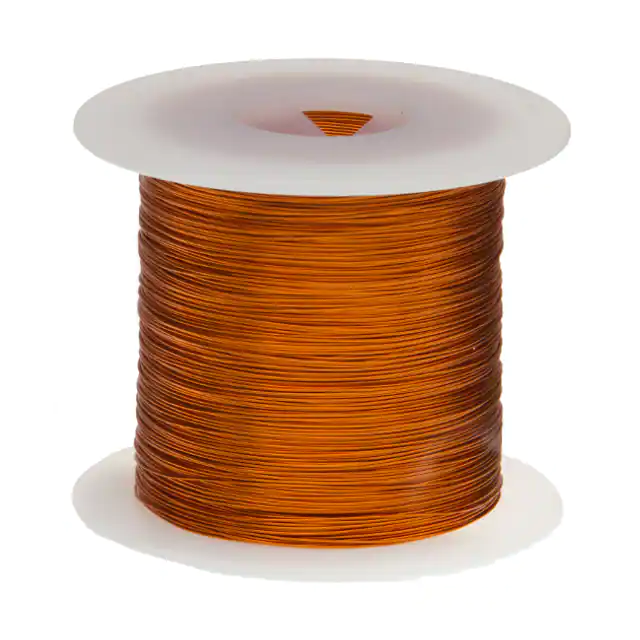

20H200P20H200P 20 AWG MAGNET WIRE, ENAM |
3,971 | - |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 314.0' (96m) | MW 35-C | - |
|
22H200P22H200P 22 AWG MAGNET WIRE, ENAM |
3,236 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 502.0' (153m) | MW 35-C | - |
|
26H240P.25#26 HVY MAG WIRE, 240C NAT 4OZ |
4,191 | - |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyimide | 0.018" (0.46mm) | 20.0' (6.1m) | MW 16-C | 0.25 lbs (113.4 g) |
|
|
36HNSP.5#36 HVY MAG WIRE, 155C NAT 8OZ |
4,262 | - |
|
Datasheet | - | Box | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 6190.0' (1887m) | MW 79-C | 0.5 lbs (226.8 g) |
|
40/38LITZ.125#22 LITZ WIRE, 40/38STR, 2OZ |
4,298 | - |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.033" (0.84mm) | 62.0' (18.9m) | MW 80-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
