Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
610218MW-28C SL 18AWG 1KG MAX/V 2200 |
3,056 | - |
|
Datasheet | - | Spool | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.042" (1.07mm) | 448' (136.6m) | MW 28-C SL | - |
|
610224MW-28C SL 24AWG 1KG MAX/V 1900 |
2,270 | - |
|
Datasheet | - | Spool | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.022" (0.55mm) | 1799.1' (548.5m) | MW 28-C SL | - |
|
|
610226MW-28C SL 26AWG 1KG MAX/V 1700 |
2,455 | - |
|
Datasheet | - | Spool | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.017" (0.43mm) | 2878.2' (877.5m) | MW 28-C SL | - |
|
600226MW35-C HY 26AWG 1KG MAX/V 3300 |
2,717 | - |
|
Datasheet | - | Spool | Active | 26 AWG | Copper, Annealed Bare | Polyamide | 0.018" (0.46mm) | 2878.2' (877.5m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|
|
610230MW-28C SL 30AWG 1KG MAX/V 1700 |
4,125 | - |
|
Datasheet | - | Spool | Active | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.011" (0.28mm) | 7281.3' (2219.9m) | MW 28-C SL | - |
|
600230MW35-C HY 30AWG 1KG MAX/V 3000 |
4,505 | - |
|
Datasheet | - | Spool | Active | 30 AWG | Copper, Annealed Bare | Polyamide | 0.012" (0.31mm) | 7281.3' (2219.9m) | MW 35-C HY | 2.2 lbs (997.9 g) |
|
|
610232MAGNET WIRE 32 AWG 3475.5 METER |
61 |
1+：$140.70000 2+：$133.87000 3+：$130.00667 5+：$125.27600 7+：$122.23714 10+：$119.08200 |
|
Datasheet | - | Spool | Active | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.009" (0.23mm) | 11399.6' (3475.5m) | MW 28-C SL | - |
|
|
610234MW-28C SL 34AWG 1KG MAX/V 1300 |
4,245 | - |
|
Datasheet | - | Spool | Active | 34 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.007" (0.18mm) | 18350.3' (5594.6m) | MW 28-C SL | - |
|
|
610222MW-28C SL 22AWG 1KG MAX/V 2000 |
1,323 | - |
|
Datasheet | - | Spool | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.027" (0.69mm) | 1136.2' (346.4m) | MW 28-C SL | - |
|

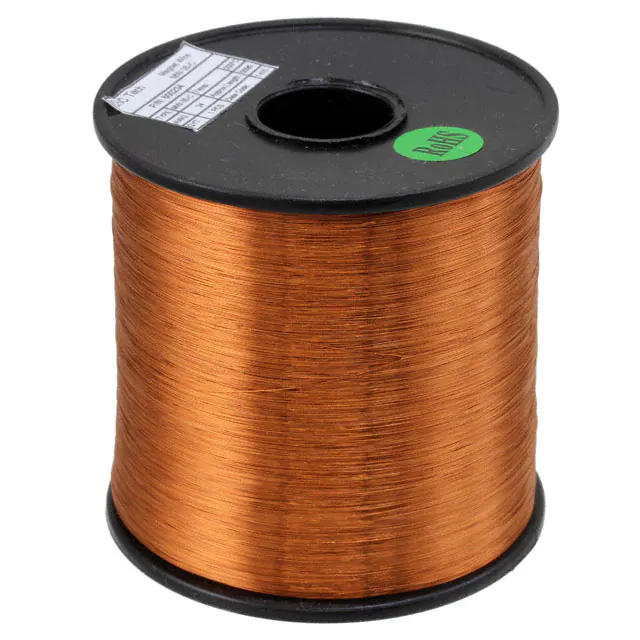

600234MW35-C HY 34AWG 1KG MAX/V 2500 |
4,285 | - |
|
Datasheet | - | Spool | Active | 34 AWG | Copper, Annealed Bare | Polyamide | 0.008" (0.20mm) | 18350.3' (5594.6m) | MW 35-C HY | 2.2 lbs (997.9 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
