Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
610228MW-28C SL 28AWG 1KG MAX/V 1700 |
4,092 | - |
|
Datasheet | - | Spool | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.014" (0.36mm) | 4587.4' (1398.6m) | MW 28-C SL | - |
|

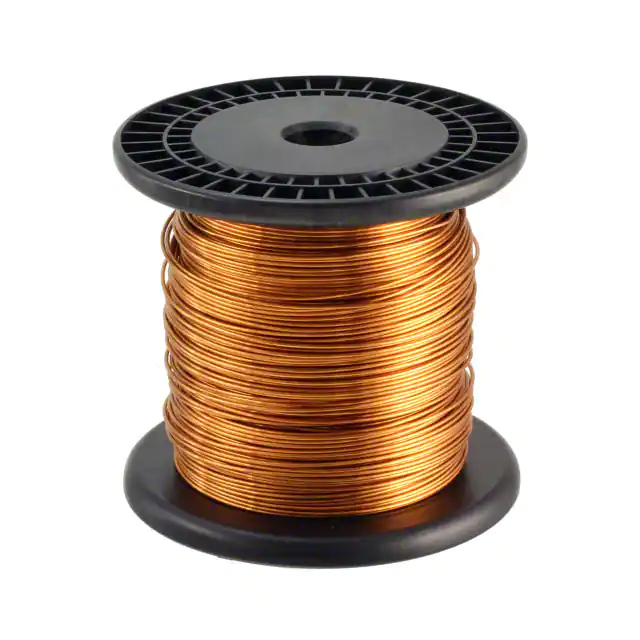

610216MW28-C SL 16AWG 1KG MAX/V 2300 |
3,929 | - |
|
Datasheet | - | Spool | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.053" (1.35mm) | 282.4' (86.1m) | MW 28-C SL | - |
|
600216-15MW35-C HY 16AWG 15KG MAX/V 4000 |
4,988 | - |
|
Datasheet | - | Spool | Active | 16 AWG | Copper, Annealed Bare | Polyamide | 0.054" (1.37mm) | 4237.2' (1291.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
600218-15MW35-C HY 18AWG 15KG MAX/V 3900 |
3,151 | - |
|
Datasheet | - | Spool | Active | 18 AWG | Copper, Annealed Bare | Polyamide | 0.043" (1.09mm) | 6722.4' (2049m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
600214-15MW35-C HY 14AWG 15KG MAX/V 4500 |
1,570 | - |
|
Datasheet | - | Spool | Active | 14 AWG | Copper, Annealed Bare | Polyamide | 0.068" (1.73mm) | 2657.5' (810m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
600220-15MW35-C HY 20AWG 15KG MAX/V 3800 |
3,885 | - |
|
Datasheet | - | Spool | Active | 20 AWG | Copper, Annealed Bare | Polyamide | 0.035" (0.89mm) | 10664.4' (3250.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600214-3MW35-C HY 14AWG 3KG MAX/V 4500 |
2,220 | - |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyamide | 0.068" (1.73mm) | 531.5' (162.0m) | MW 35-C HY | 6.6 lbs (3 kg) |
|
|
600222-15MW35-C HY 22AWG 15KG MAX/V 3600 |
4,646 | - |
|
Datasheet | - | Spool | Obsolete | 22 AWG | Copper, Annealed Bare | Polyamide | 0.028" (0.71mm) | 17047.2' (5196m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600224-15MW35-C HY 24AWG 15KG MAX/V 3500 |
3,572 | - |
|
Datasheet | - | Spool | Obsolete | 24 AWG | Copper, Annealed Bare | Polyamide | 0.023" (0.58mm) | 26993.1' (8227.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600228-15MW35-C HY 28AWG 15KG MAX/V 3200 |
2,921 | - |
|
Datasheet | - | Spool | Active | 28 AWG | Copper, Annealed Bare | Polyamide | 0.015" (0.38mm) | 68828.7' (20979m) | MW 35-C HY | 33.1 lbs (15 kg) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
